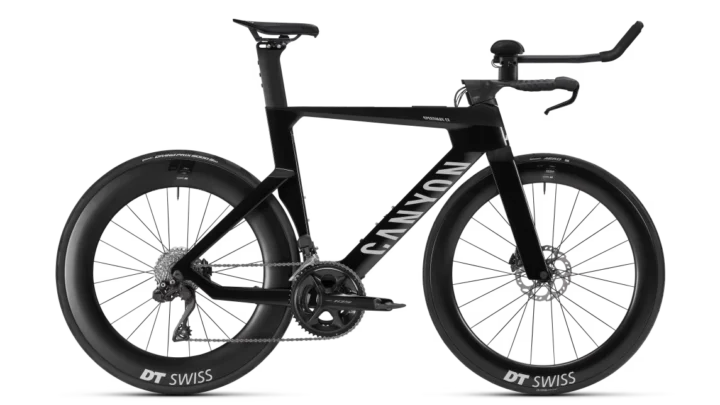

2026 Canyon Speedmax CF 7 Di2
Original manufacturer specifications including 27.5; 700C wheels, 20.31 lb published weight, geometry for 5 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Road
- Original MSRP
- $5,999.00
- Sizes
- XS, S, M, L, XL
- Colors
- Black Mirage
- Weight
- 20.31 lb
- Geometry
- 5 manufacturer sizes · Geometry context
- Record coverage
- 16 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900001394
Frameset
| Frame Construction | Canyon Speedmax CF |
|---|---|
| Frame Material | Carbon (CF) |
| Fork | Speedmax fork |
Drivetrain
| Shifters | Shimano Dura-Ace Di2 R9160 Remote TT |
|---|---|
| Rear Derailleur | Shimano 105 Di2 |
| Crankset | Shimano 105 R7100 4iiii Precision |
| Bottom Bracket | Shimano Pressfit BB-RS500 |
| Cassette | Shimano 105 R7101 11-34 12s |
| Chain | Shimano CN-M7100 12s |
Cockpit & Contact Points
| Saddle | Fizik Transiro Aeris LD R5 |
|---|---|
| Seatpost | Canyon SP0048 Aero Seatpost |
Wheels & Tires
| Wheels | DT Swiss ARC1600 |
|---|---|
| Front Tire | Continental Grand Prix 5000 S TR, 28mm |
| Rear Tire | Continental Aero 111 |
| Wheel Size | 27.5; 700C |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS | S | L | XL | M |
|---|---|---|---|---|---|
| Seat tube | 480 mm | 518 mm | 577 mm | 607 mm | 543 mm |
| Effective top tube | 454 mm | 489 mm | 540 mm | 570 mm | 511 mm |
| Head tube | 113 mm | 115 mm | 176 mm | 207 mm | 140 mm |
| Head-tube angle | 72° | 73° | 73° | 73° | 73° |
| Seat-tube angle | 80.5° | 80.5° | 80.5° | 80.5° | 80.5° |
| Chainstay / rear center | 410 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 956 mm | 988 mm | 1046 mm | 1081 mm | 1014 mm |
| Bottom-bracket drop | 52 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Reach | 374 mm | 402 mm | 443 mm | 468 mm | 420 mm |
| Stack | 482 mm | 519 mm | 578 mm | 608 mm | 544 mm |
| Standover height | 754 mm | 791 mm | 849 mm | 879 mm | 815 mm |
| Crank length | 165 mm | 165 mm | 170 mm | 172.5 mm | 170 mm |
| Wheel size | 27.5 | 700C | 700C | 700C | 700C |
Geometry source: Canyon first-party ProductGroup geometry ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS geometry
Archive context: Its wheelbase of 956 mm sits toward the shorter end. The seat angle of 80.5° sits toward the steeper end. Its bottom-bracket drop of 52 mm sits toward the shallower-drop end.
Compared with 64 distinct road geometries in the XS-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS geometry S geometry
Archive context: The seat angle of 80.5° sits toward the steeper end. The head angle of 73° sits toward the steeper end. Its reach of 402 mm sits toward the longer end.
Compared with 88 distinct road geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry L geometry
Archive context: The seat angle of 80.5° sits toward the steeper end. Its reach of 443 mm sits toward the longer end. Its wheelbase of 1046 mm sits toward the longer end.
Compared with 77 distinct road geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry XL geometry
Archive context: Its wheelbase of 1081 mm sits toward the longer end. The seat angle of 80.5° sits toward the steeper end. Its reach of 468 mm sits toward the longer end.
Compared with 63 distinct road geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry M geometry
Archive context: The seat angle of 80.5° sits toward the steeper end. Its reach of 420 mm sits toward the longer end. Its wheelbase of 1014 mm sits toward the longer end.
Compared with 88 distinct road geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry Parts & serviceability
Find replacement parts
Shimano CN-M7100 12s
Exact archived model
Shimano 105 R7101 11-34 12s
Interpreted as Shimano 105 · 12-speed Component family — verify exact version
Shimano Pressfit BB-RS500
Exact archived model
More qualified parts (5)
Fizik Transiro Aeris LD R5
Named archived component — verify exact version
Shimano 105 R7100 4iiii Precision
Exact archived model
Shimano 105 Di2
Interpreted as Shimano 105 · 12-speed · Di2 Component family — verify exact version
Shimano Dura-Ace Di2 R9160 Remote TT
Interpreted as Shimano Dura-Ace · 12-speed · Di2 Component family — verify exact version
DT Swiss ARC1600
Named archived component — verify dimensions
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesIdentify the installed brake system before riding or ordering parts. Test every installed brake separately at walking speed, confirm it stops firmly and releases cleanly, then inspect its pads, braking surfaces and complete cable or hose path.Inspect the brakes →
- DrivetrainConfirm every shift-system battery charges, every shift control works and the derailleur moves cleanly across the cassette. Make sure the matching shift-system charger is included, then measure chain wear and inspect the cassette teeth.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 17 checks based on 4 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Canyon Speedmax CF 7 Di2 · Road · Published sizes: XS, S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Canyon Speedmax CF · Fork: Speedmax fork
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Dura-Ace Di2 R9160 Remote TT · Rear derailleur: Shimano 105 Di2 · Crankset: Shimano 105 R7100 4iiii Precision · Bottom bracket: Shimano Pressfit BB-RS500 · Cassette: Shimano 105 R7101 11-34 12s · Chain: Shimano CN-M7100 12s
Brakes
Inspect the brakes →Wheels and tires
Check wheels and tires →Archived: Wheel size: 27.5; 700C · Wheels: DT Swiss ARC1600 · Front tire: Continental Grand Prix 5000 S TR, 28mm · Rear tire: Continental Aero 111
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
