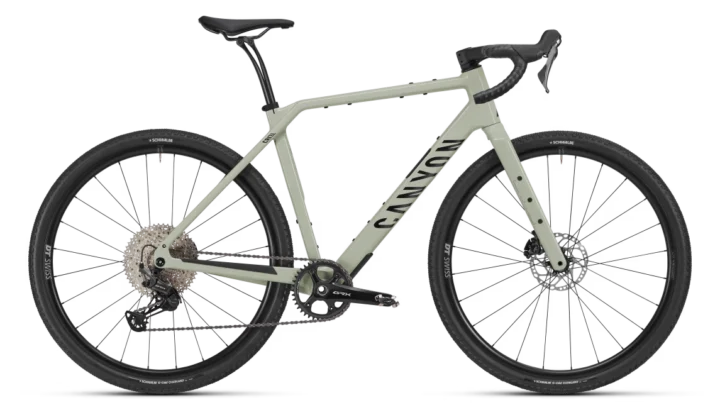

2026 Canyon Grizl CF 7 ESC
Original manufacturer specifications including 700C wheels, 21.92 lb published weight, geometry for 7 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Gravel & Cyclocross
- Original MSRP
- $3,199.00
- Sizes
- XXS, XS, S, M, L, XL, XXL
- Colors
- Pineapple Gummy
- Weight
- 21.92 lb
- Geometry
- 7 manufacturer sizes · Geometry context
- Record coverage
- 16 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900001603
Model history 1 other year
Frameset
| Frame Construction | Canyon Grizl CF |
|---|---|
| Frame Material | Carbon (CF) |
| Fork | Canyon FK0143 CF |
| Fork Material | Carbon |
Drivetrain
| Rear Derailleur | Shimano GRX RD-RX822 12s |
|---|---|
| Crankset | Shimano GRX FC-RX820 |
| Bottom Bracket | Shimano Pressfit BB-RS500 |
| Cassette | SunRace CSMZ800 12s 11-51T |
| Chain | Shimano CN-M7100 12s |
Cockpit & Contact Points
| Saddle | Selle Royal SRX |
|---|---|
| Seatpost | Canyon S15 VCLS 2.0 CF |
Wheels & Tires
| Wheels | DT Swiss Gravel LN |
|---|---|
| Front Tire | Schwalbe G-One Overland Performance |
| Rear Tire | Schwalbe G-One Overland Performance |
| Wheel Size | 700C |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | 2XS | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|---|
| Seat tube | 432 mm | 462 mm | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Effective top tube | 532 mm | 545 mm | 559 mm | 581 mm | 603 mm | 618 mm | 643 mm |
| Head tube | 120 mm | 126 mm | 141 mm | 158 mm | 183 mm | 203 mm | 226 mm |
| Head-tube angle | 68.8° | 69.5° | 70.5° | 71° | 71° | 71° | 71° |
| Seat-tube angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Chainstay / rear center | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1047 mm | 1054 mm | 1059 mm | 1076 mm | 1100 mm | 1115 mm | 1142 mm |
| Bottom-bracket drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Reach | 369 mm | 380 mm | 388 mm | 404 mm | 420 mm | 429 mm | 448 mm |
| Stack | 550 mm | 559 mm | 578 mm | 596 mm | 619 mm | 638 mm | 660 mm |
| Standover height | 764 mm | 785 mm | 810 mm | 826 mm | 861 mm | 883 mm | 892 mm |
| Crank length | 170 mm | 170 mm | 170 mm | 172.5 mm | 172.5 mm | 175 mm | 175 mm |
| Wheel size | 700C | 700C | 700C | 700C | 700C | 700C | 700C |
Geometry source: Canyon first-party ProductGroup geometry ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
2XS geometry
Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 2XS geometry XS geometry
Archive context: Its wheelbase of 1054 mm sits toward the longer end. The seat angle of 73.5° sits toward the more relaxed end. The chainstay of 440 mm sits somewhat longer than typical.
Compared with 42 distinct gravel & cyclocross geometries in the XS-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS geometry S geometry
Archive context: Its reach of 388 mm sits toward the longer end. The seat angle of 73.5° sits toward the more relaxed end. Its wheelbase of 1059 mm sits toward the longer end.
Compared with 101 distinct gravel & cyclocross geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry M geometry
Archive context: Its reach of 404 mm sits toward the longer end. Its wheelbase of 1076 mm sits toward the longer end. The chainstay of 440 mm sits somewhat longer than typical.
Compared with 117 distinct gravel & cyclocross geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry L geometry
Archive context: Its reach of 420 mm sits toward the longer end. The chainstay of 440 mm sits somewhat longer than typical. Its wheelbase of 1100 mm sits somewhat longer than typical.
Compared with 86 distinct gravel & cyclocross geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry XL geometry
Archive context: The chainstay of 440 mm sits somewhat longer than typical. Its wheelbase of 1115 mm sits somewhat longer than typical. Its reach of 429 mm sits somewhat longer than typical.
Compared with 91 distinct gravel & cyclocross geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry XXL geometry
Archive context: Its wheelbase of 1142 mm sits toward the longer end. Its stack of 660 mm sits toward the taller end. Its reach of 448 mm sits toward the longer end.
Compared with 30 distinct gravel & cyclocross geometries in the XXL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XXL geometry Parts & serviceability
Find replacement parts
Shimano CN-M7100 12s
Exact archived model
SunRace CSMZ800 12s 11-51T
Component family — verify exact version
Schwalbe G-One Overland Performance
Named tire · verify the exact width
Before ordering: Confirm the exact tire width before ordering.
More qualified parts (5)
Shimano Pressfit BB-RS500
Exact archived model
Selle Royal SRX
Named archived component — verify exact version
Shimano GRX FC-RX820
Exact archived model
Shimano GRX RD-RX822 12s
Interpreted as Shimano GRX · 12-speed Exact archived model
DT Swiss Gravel LN
Named archived component — verify dimensions
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesIdentify the installed brake system before riding or ordering parts. Test every installed brake separately at walking speed, confirm it stops firmly and releases cleanly, then inspect its pads, braking surfaces and complete cable or hose path.Inspect the brakes →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 17 checks based on 4 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Canyon Grizl CF 7 ESC · Gravel · Published sizes: XXS, XS, S, M, L, XL, XXL
Frame and fork
Inspect the frame and fork →Archived: Frame: Canyon Grizl CF · Fork: Canyon FK0143 CF · Carbon
Drivetrain
Check drivetrain wear →Archived: Rear derailleur: Shimano GRX RD-RX822 12s · Crankset: Shimano GRX FC-RX820 · Bottom bracket: Shimano Pressfit BB-RS500 · Cassette: SunRace CSMZ800 12s 11-51T · Chain: Shimano CN-M7100 12s
Brakes
Inspect the brakes →Wheels and tires
Check wheels and tires →Archived: Wheel size: 700C · Wheels: DT Swiss Gravel LN · Front tire: Schwalbe G-One Overland Performance · Rear tire: Schwalbe G-One Overland Performance
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery
Current market
Snapshot not yet availableProtected live updateReady after page interactionAutomated crawlers do not trigger marketplace requests.
Move, scroll, tap or type to start the protected update.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
