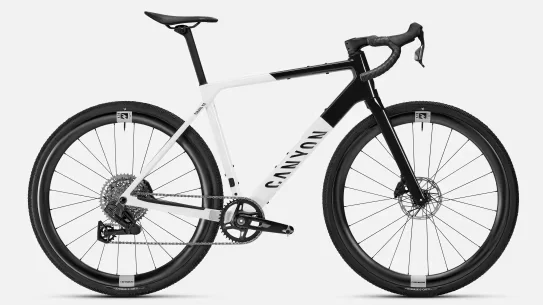

2026 Canyon Grail CF SL 7 AERO
Original manufacturer specifications including 700C wheels, 18.65 lb published weight, geometry for 7 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Gravel & Cyclocross
- Original MSRP
- $3,699.00
- Sizes
- XXS, XS, S, M, L, XL, XXL
- Colors
- White Sprint, Blazing Mustard
- Weight
- 18.65 lb
- Geometry
- 7 manufacturer sizes · Geometry context
- Record coverage
- 16 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900001594
Frameset
| Frame Construction | Canyon Grail CF SL |
|---|---|
| Frame Material | Carbon (CF) |
| Fork | Canyon FK0117 CF Disc |
| Fork Material | Carbon |
Drivetrain
| Rear Derailleur | SRAM Rival XPLR AXS RD 13s |
|---|---|
| Crankset | SRAM Rival XPLR |
| Bottom Bracket | SRAM Pressfit DUB Wide |
| Cassette | SRAM Rival XPLR XG-1351 |
| Chain | SRAM Rival E1 |
Cockpit & Contact Points
| Saddle | Vento Argo X5 |
|---|---|
| Seatpost | Canyon SP0096-01 |
Wheels & Tires
| Wheels | Reynolds ATR TSS |
|---|---|
| Front Tire | Schwalbe G-One R Performance |
| Rear Tire | Schwalbe G-One R Performance |
| Wheel Size | 700C |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | 2XS | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|---|
| Seat tube | 420 mm | 450 mm | 480 mm | 510 mm | 540 mm | 570 mm | 600 mm |
| Effective top tube | 533 mm | 550 mm | 564 mm | 586 mm | 609 mm | 623 mm | 648 mm |
| Head tube | 123 mm | 129 mm | 145 mm | 163 mm | 187 mm | 207 mm | 230 mm |
| Head-tube angle | 69.5° | 71° | 71.5° | 71.5° | 71.5° | 71.8° | 71.8° |
| Seat-tube angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Chainstay / rear center | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1021 mm | 1024 mm | 1034 mm | 1057 mm | 1080 mm | 1092 mm | 1118 mm |
| Bottom-bracket drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Reach | 372 mm | 385 mm | 394 mm | 411 mm | 427 mm | 435 mm | 454 mm |
| Stack | 545 mm | 556 mm | 573 mm | 591 mm | 613 mm | 633 mm | 655 mm |
| Standover height | 745 mm | 766 mm | 789 mm | 813 mm | 838 mm | 863 mm | 901 mm |
| Crank length | 165 mm | 165 mm | 170 mm | 172.5 mm | 172.5 mm | 175 mm | 175 mm |
| Wheel size | 700C | 700C | 700C | 700C | 700C | 700C | 700C |
Geometry source: Canyon first-party ProductGroup geometry ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
2XS geometry
Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 2XS geometry XS geometry
Archive context: Its reach of 385 mm sits toward the longer end. The head angle of 71° sits toward the steeper end. The seat angle of 73.5° sits toward the more relaxed end.
Compared with 42 distinct gravel & cyclocross geometries in the XS-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS geometry S geometry
Archive context: The head angle of 71.5° sits toward the steeper end. Its reach of 394 mm sits toward the longer end. The seat angle of 73.5° sits toward the more relaxed end.
Compared with 101 distinct gravel & cyclocross geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry M geometry
Archive context: Its reach of 411 mm sits toward the longer end. The chainstay of 425 mm sits somewhat shorter than typical. The head angle of 71.5° sits somewhat steeper than typical.
Compared with 117 distinct gravel & cyclocross geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry L geometry
Archive context: Its reach of 427 mm sits toward the longer end. The chainstay of 425 mm sits somewhat shorter than typical. Its wheelbase of 1080 mm sits somewhat longer than typical.
Compared with 86 distinct gravel & cyclocross geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry XL geometry
Archive context: Its reach of 435 mm sits toward the longer end. The head angle of 71.8° sits somewhat steeper than typical. The chainstay of 425 mm sits somewhat shorter than typical.
Compared with 91 distinct gravel & cyclocross geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry XXL geometry
Archive context: Its reach of 454 mm sits toward the longer end. Its wheelbase of 1118 mm sits toward the longer end. Its stack of 655 mm sits somewhat taller than typical.
Compared with 30 distinct gravel & cyclocross geometries in the XXL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XXL geometry Parts & serviceability
Find replacement parts
SRAM Rival E1
Interpreted as SRAM Rival · 13-speed Named component · published drivetrain speed — verify exact version
SRAM Rival XPLR XG-1351
Interpreted as SRAM Rival · 13-speed Exact archived model
SRAM Pressfit DUB Wide
Named archived component — verify dimensions
More qualified parts (3)
SRAM Rival XPLR
Named archived component — verify exact version
SRAM Rival XPLR AXS RD 13s
Interpreted as SRAM Rival · 13-speed · electronic Component family — verify exact version
Reynolds ATR TSS
Named archived component — verify dimensions
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesIdentify the installed brake system before riding or ordering parts. Test every installed brake separately at walking speed, confirm it stops firmly and releases cleanly, then inspect its pads, braking surfaces and complete cable or hose path.Inspect the brakes →
- DrivetrainConfirm every shift-system battery charges, every shift control works and the derailleur moves cleanly across the cassette. Make sure the matching shift-system charger is included, then measure chain wear and inspect the cassette teeth.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 17 checks based on 4 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Canyon Grail CF SL 7 AERO · Gravel · Published sizes: XXS, XS, S, M, L, XL, XXL
Frame and fork
Inspect the frame and fork →Archived: Frame: Canyon Grail CF SL · Fork: Canyon FK0117 CF Disc · Carbon
Drivetrain
Check drivetrain wear →Archived: Rear derailleur: SRAM Rival XPLR AXS RD 13s · Crankset: SRAM Rival XPLR · Bottom bracket: SRAM Pressfit DUB Wide · Cassette: SRAM Rival XPLR XG-1351 · Chain: SRAM Rival E1
Brakes
Inspect the brakes →Wheels and tires
Check wheels and tires →Archived: Wheel size: 700C · Wheels: Reynolds ATR TSS · Front tire: Schwalbe G-One R Performance · Rear tire: Schwalbe G-One R Performance
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
