Lowest0.87:1
Highest4.00:1
Total range460%
Velopedia Bicycle Archive

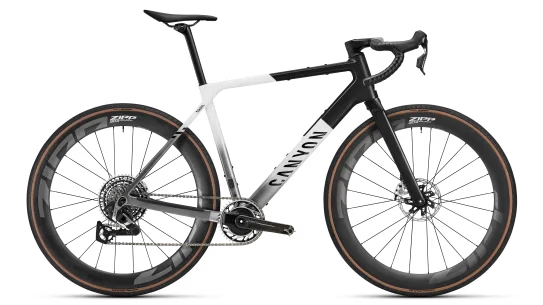

2026 Canyon Grail CFR AXS
Original specifications: 700C wheels · 16.63 lb published weight · geometry for 7 published sizes.
Planning to sell? Draft your listing
At a glance
Archive #900001405- Model year
- 2026
- Category
- Gravel & Cyclocross
- Original MSRP
- $7,199.00
- Sizes
- XXS, XS, S, M, L, XL, XXL
- Colors
- Arctic Noir
- Weight
- 16.63 lb
- Geometry
- 7 manufacturer sizes
- In this record
- 15 specifications · 8 archived images · original MSRP · geometry
Original buildCarbon (CF) · 700C
Frameset
| Frame Construction | Canyon Grail CFR |
|---|---|
| Frame Material | Carbon (CF) |
| Fork | Canyon FK0118 CF Disc |
| Fork Material | Carbon |
Drivetrain
| Rear Derailleur | SRAM Red XPLR |
|---|---|

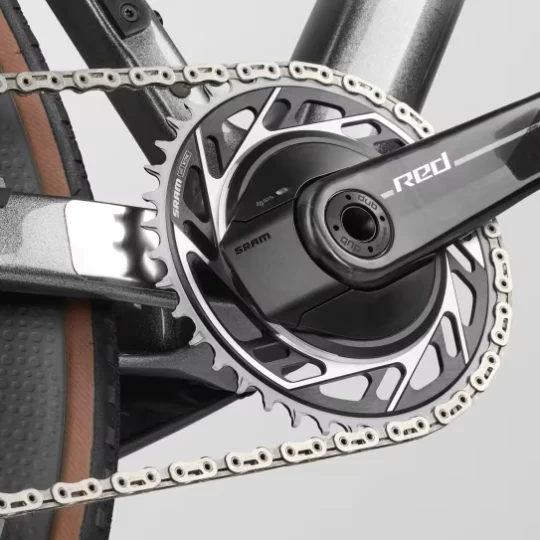

| Crankset | SRAM RED XPLR AXS Power Meter; 40T |
| Bottom Bracket | SRAM Pressfit DUB Wide |
| Cassette | SRAM Red XPLR; 13-speed; 10-46 |
| Chain | SRAM Red |
Cockpit & Contact Points
| Saddle | Fizik Vento Argo X1 |
|---|---|
| Seatpost | Canyon SP0096-01; 10 mm setback |
Wheels & Tires

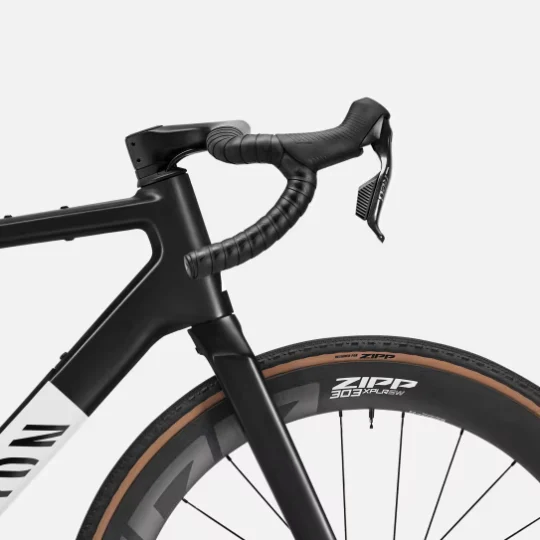

| Wheels | Zipp 303 XPLR SW Hookless |
|---|---|
| Front Tire | Goodyear XPLR Slick |
| Rear Tire | Goodyear XPLR Slick |
| Wheel Size | 700C |
No specifications match. Try a component name or clear your search.
Geometry
Frame measurements by size.
Frame diagram
Size
Measurement
Measurement
—
Select an available measurement to locate it on the frame.
All geometry measurements7 sizes · 13 measurements
| Measurement | 2XS | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|---|
| Seat tube | 420 mm | 450 mm | 480 mm | 510 mm | 540 mm | 570 mm | 600 mm |
| Effective top tube | 533 mm | 550 mm | 564 mm | 586 mm | 609 mm | 623 mm | 648 mm |
| Head tube | 123 mm | 129 mm | 145 mm | 163 mm | 187 mm | 207 mm | 230 mm |
| Head-tube angle | 69.5° | 71° | 71.5° | 71.5° | 71.5° | 71.8° | 71.8° |
| Seat-tube angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Chainstay / rear center | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1021 mm | 1024 mm | 1034 mm | 1057 mm | 1080 mm | 1092 mm | 1118 mm |
| Bottom-bracket drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Reach | 372 mm | 385 mm | 394 mm | 411 mm | 427 mm | 435 mm | 454 mm |
| Stack | 545 mm | 556 mm | 573 mm | 591 mm | 613 mm | 633 mm | 655 mm |
| Standover height | 745 mm | 766 mm | 789 mm | 813 mm | 838 mm | 863 mm | 901 mm |
| Crank length | 165 mm | 165 mm | 170 mm | 172.5 mm | 172.5 mm | 175 mm | 175 mm |
| Wheel size | 700C | 700C | 700C | 700C | 700C | 700C | 700C |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
Speed unavailable: wheel or tire size is missing or unclear.
Add your rear tire size to calculate speedHow it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
SRAM Red XPLR
13-speed; 10-46
Retailer offers
SRAM RED XPLR 13-Speed Cassette Silver, 10-46t
Specification match
Fizik Vento Argo X1
Retailer offers
Fi'zi:k Vento Argo X1 Saddle Black, 150mm
Model match
SRAM RED XPLR AXS Power Meter; 40T
165 mm
Frame sizes 2XS / XS
Retailer offers
SRAM RED XPLR 1x Power Meter Spider DUB Crankset Black, 165mm, 40t
165mm, 40t · Frame sizes 2XS / XS
Model match
170 mm
Frame sizes S
Retailer offers
SRAM RED XPLR 1x Power Meter Spider DUB Crankset Black, 170mm, 40t
170mm, 40t · Frame sizes S
Model match
172.5 mm
Frame sizes M / L
Retailer offers
SRAM RED XPLR 1x Power Meter Spider DUB Crankset Black, 172.5mm, 40t
172.5mm, 40t · Frame sizes M / L
Model match
175 mm
Frame sizes XL / XXL
Retailer offers
SRAM RED XPLR 1x Power Meter Spider DUB Crankset Black, 175mm, 40t
175mm, 40t · Frame sizes XL / XXL
Model match
More parts (5)Fewer parts
SRAM Red
Goodyear XPLR Slick
Before ordering: Confirm the exact tire width before ordering.
SRAM Pressfit DUB Wide
SRAM Red XPLR
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Zipp 303 XPLR SW Hookless
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Service essentialsQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Goodyear XPLR SlickCheck: Verify the fitted tire’s size marking and rim type.
- Rear tire
- Goodyear XPLR SlickCheck: Verify the rear size; it may differ from the front.
- Drivetrain
- 13-speedCheck: Match the installed drivetrain family, not just its speed count.
- Bottom bracket / shell
- SRAM Pressfit DUB WideCheck: Verify shell type and width, crank interface, and spindle length or spacers.
Not confirmed in this record: Seatpost diameter. Check the fitted parts for these details.
Bike-specific inspection checklist 17 checks based on 4 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Canyon Grail CFR AXS · Gravel · Published sizes: XXS, XS, S, M, L, XL, XXL
Frame and fork
Inspect the frame and fork →Archived: Frame: Canyon Grail CFR · Fork: Canyon FK0118 CF Disc · Carbon
Drivetrain
Check drivetrain wear →Archived: Rear derailleur: SRAM Red XPLR · Crankset: SRAM RED XPLR AXS Power Meter; 40T · Bottom bracket: SRAM Pressfit DUB Wide · Cassette: SRAM Red XPLR; 13-speed; 10-46 · Chain: SRAM Red
Brakes
Inspect the brakes →Wheels and tires
Check wheels and tires →Archived: Wheel size: 700C · Wheels: Zipp 303 XPLR SW Hookless · Front tire: Goodyear XPLR Slick · Rear tire: Goodyear XPLR Slick
Before and during the test ride
Follow the full used-bike inspection order →Have you owned this model?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery8 images
Checking current listings…
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
