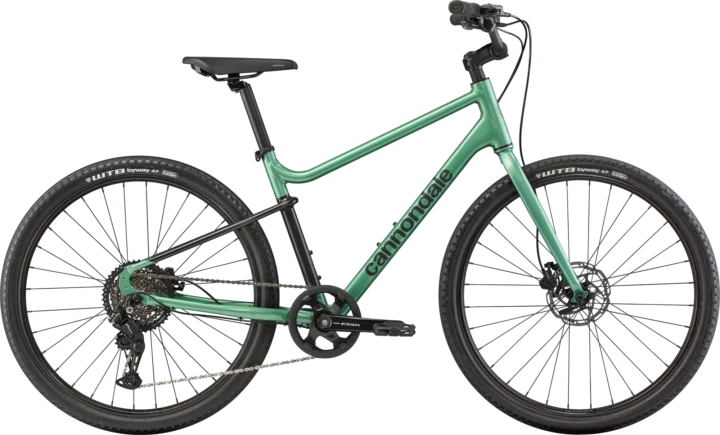

2026 Cannondale Treadwell 2
Original manufacturer specifications including 650b wheels, geometry for 4 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Hybrid
- Original MSRP
- $749.00
- Sizes
- S, M, L, XL
- Colors
- Obsidian, Cactus Green
- Geometry
- 4 manufacturer sizes · Geometry context
- Record coverage
- 22 preserved details · 2 archived images · original MSRP · preserved geometry
- Archive ID
- 900001221
Model history 1 other year
Frameset
| Frame Construction | SmartForm C3 Alloy, Ride-Easy geometry, Straightshot hidden cable routing, post mount disc, rack/fender mounts |
|---|---|
| Frame Material | Aluminum |
| Fork | Steel, ISO disc mount, 100x9mm QR, 1-1/8" steerer, fender mounts |
| Fork Material | Steel |
Drivetrain
| Shifters | Shimano Essa, RapidFire, 8-speed |
|---|---|
| Rear Derailleur | Shimano Essa U2000, 8-speed |
| Crankset | Shimano Essa, 40T |
| Bottom Bracket | Shimano UN101, square taper |
| Rear Cogs | Shimano HG400, 11-45, 8-speed |
| Chain | KMC X8, 8-speed |
Brakes
| Brakes | Brakes Tektro M275 hydraulic disc, 160/160mm centerlock rotors Brake Levers Tektro M275 hydraulic disc |
|---|
Cockpit & Contact Points
| Headset | Semi-integrated, 1-1/8" |
|---|---|
| Handlebar | Cannondale Cruise Control riser, 6061 alloy, 31.8mm, 15° back, 740mm |
| Stem | Cannondale 3 Intellimount, Alloy, 31.8mm, with SP-Connect SPC+ mount |
| Saddle | Selle Royal Essenza, Moderate |
| Seatpost | Cannondale 3, 6061 Alloy, 27.2x350mm |
Wheels & Tires
| Hubs | (F) Shimano QC300, 9x100mm, centerlock, QR / (R) Shimano QC300, 9x135mm, centerlock, QR |
|---|---|
| Rims | Cannondale Disc, double wall w/eyelet, 32h |
| Spokes | Stainless Steel, 14g |
| Front Tire | WTB Byway, 650bx47mm |
| Rear Tire | WTB Byway, 650bx47mm |
| Wheel Size | 650b |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Seat tube | 387 mm | 444 mm | 501 mm | 558 mm |
| Effective top tube | 557 mm | 579 mm | 600 mm | 621 mm |
| Top tube | 527 mm | 547 mm | 570 mm | 593 mm |
| Head tube | 133 mm | 165 mm | 197 mm | 228 mm |
| Head-tube angle | 71° | 71° | 71° | 71° |
| Seat-tube angle | 71° | 71° | 71° | 71° |
| Chainstay / rear center | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1051 mm | 1073 mm | 1094 mm | 1115 mm |
| Bottom-bracket drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Bottom-bracket height | 284 mm | 284 mm | 284 mm | 284 mm |
| Reach | 368 mm | 379 mm | 390 mm | 401 mm |
| Stack | 550 mm | 580 mm | 610 mm | 640 mm |
| Standover height | 674 mm | 710 mm | 739 mm | 763 mm |
| Fork offset / rake | 55 mm | 55 mm | 55 mm | 55 mm |
| Front center | 598 mm | 619 mm | 640 mm | 661 mm |
| Trail | 60 mm | 60 mm | 60 mm | 60 mm |
| Fork length / axle-to-crown | 404 mm | 404 mm | 404 mm | 404 mm |
| Wheel size | 650B | 650B | 650B | 650B |
Geometry source: Exact published geometry image match ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
S geometry
Archive context: Its trail of 60 mm sits toward the lower-trail end. The head angle of 71° sits toward the steeper end. Its reach of 368 mm sits toward the shorter end.
Compared with 22 distinct hybrid geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry M geometry
Archive context: Its trail of 60 mm sits toward the lower-trail end. Its reach of 379 mm sits toward the shorter end. The head angle of 71° sits toward the steeper end.
Compared with 24 distinct hybrid geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry L geometry
Archive context: Its trail of 60 mm sits toward the lower-trail end. Its reach of 390 mm sits toward the shorter end. The seat angle of 71° sits somewhat more relaxed than typical.
Compared with 22 distinct hybrid geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry XL geometry
Archive context: Its reach of 401 mm sits toward the shorter end. The seat angle of 71° sits toward the more relaxed end. The chainstay of 460 mm sits toward the longer rear-center end.
Compared with 18 distinct hybrid geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry Parts & serviceability
Find replacement parts
KMC X8, 8-speed
Exact archived model
Shimano HG400, 11-45, 8-speed
Exact archived model
WTB Byway, 650bx47mm
Named tire and published width · wheel diameter from this bicycle
More qualified parts (6)
Shimano UN101, square taper
Named archived component — verify dimensions
Selle Royal Essenza, Moderate
Named archived component — verify exact version
Shimano Essa, 40T
Component family — verify exact version
Shimano Essa U2000, 8-speed
Interpreted as Shimano ESSA · 8-speed Component family — verify exact version
Shimano Essa, RapidFire, 8-speed
Interpreted as Shimano ESSA · 8-speed Component family — verify exact version
27.2 mm seatpost
Published diameter — verify length and setback
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesBoth levers should feel firm and return cleanly. Check for fluid around the levers and calipers, inspect pad thickness and contamination, and look for worn or bent rotors.Inspect the brakes →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 8-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Cannondale Treadwell 2 · Hybrid · Published sizes: S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: SmartForm C3 Alloy, Ride-Easy geometry, Straightshot hidden cable routing, post mount disc, rack/fender mounts · Fork: Steel, ISO disc mount, 100x9mm QR, 1-1/8" steerer, fender mounts · Steel
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Essa, RapidFire, 8-speed · Rear derailleur: Shimano Essa U2000, 8-speed · Crankset: Shimano Essa, 40T · Bottom bracket: Shimano UN101, square taper · Rear cogs: Shimano HG400, 11-45, 8-speed · Chain: KMC X8, 8-speed
Brakes
Inspect the brakes →Archived: Brakes: Brakes Tektro M275 hydraulic disc, 160/160mm centerlock rotors Brake Levers Tektro M275 hydraulic disc
Wheels and tires
Check wheels and tires →Archived: Wheel size: 650b · Rims: Cannondale Disc, double wall w/eyelet, 32h · Hubs: (F) Shimano QC300, 9x100mm, centerlock, QR / (R) Shimano QC300, 9x135mm, centerlock, QR · Front tire: WTB Byway, 650bx47mm · Rear tire: WTB Byway, 650bx47mm
Controls and contact points
Archived: Headset: Semi-integrated, 1-1/8" · Handlebar: Cannondale Cruise Control riser, 6061 alloy, 31.8mm, 15° back, 740mm · Stem: Cannondale 3 Intellimount, Alloy, 31.8mm, with SP-Connect SPC+ mount · Seatpost: Cannondale 3, 6061 Alloy, 27.2x350mm · Saddle: Selle Royal Essenza, Moderate
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
