Velopedia Bicycle Archive

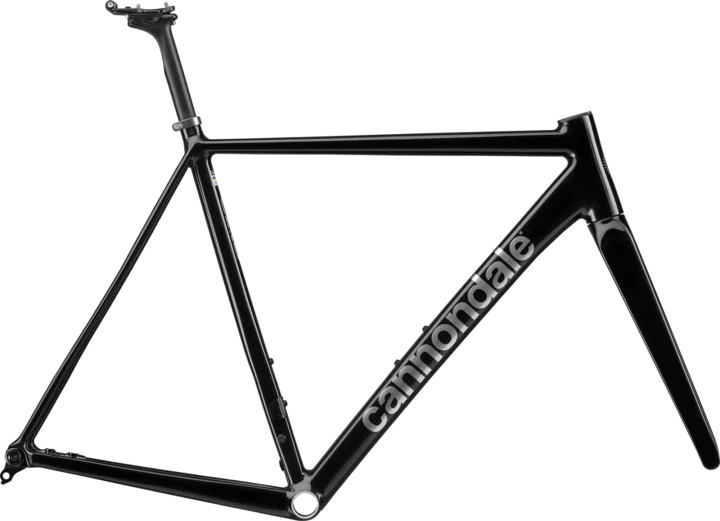

2026 Cannondale CAAD14 Frameset
Original manufacturer specifications including 700c wheels.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Road
- Original MSRP
- $1,799.00
- Sizes
- 48, 51, 54, 56, 58, 61
- Colors
- Rally Red, Black
- Record coverage
- 7 preserved details · 2 archived images · original MSRP
- Archive ID
- 900001242
Frameset
| Frame Construction | CAAD14, SmartForm C1 Premium Alloy, integrated cable routing, 12x142 thru-axle, BSA 68mm threaded BB, flat mount disc, UDH |
|---|---|
| Frame Material | Aluminum |
| Fork | CAAD14, full carbon, 1-1/8" to 1-1/2" Delta Steerer, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 55mm offset (44-54cm), 45mm offset (56-61cm) |
| Fork Material | Carbon fiber |
Cockpit & Contact Points
| Headset | Integrated, 1-1/8" - 1.5" |
|---|---|
| Seatpost | Cannondale SAVE Carbon, 27.2x350mm, 11mm offset |
Wheels & Tires
| Wheel Size | 700c |
|---|
Parts & serviceability
Find replacement parts
27.2 mm seatpost
Published diameter — verify length and setback
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-frameset inspection
If you’re buying this frameset used
Before buying: confirm the serial number and exact model, inspect frame and fork alignment, and inventory every included axle, hanger, clamp, headset part, cable guide and proprietary fitting.
Inspect the frame and fork →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- Included hardwareInventory every axle, hanger, clamp, headset part, cable guide, frame plug and proprietary fitting included with the frameset. Confirm replacement availability before treating a missing small part as insignificant.
- AlignmentSight along the frame and fork from several directions. Confirm that the fork, rear dropouts, head tube and other visible interfaces appear straight; professional measurement is appropriate when alignment cannot be established visually.
Used-frameset inspection checklist 14 universal checks for a record with limited component data Open checklistClose checklist
The archived record does not contain enough component detail for a fully specification-informed frameset checklist. Use these universal checks on the frameset in front of you, inventory every included part and confirm exact interfaces before choosing components.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Cannondale CAAD14 Frameset · Road · Published sizes: 48, 51, 54, 56, 58, 61
Frame and fork
Inspect the frame and fork →Archived: Frame: CAAD14, SmartForm C1 Premium Alloy, integrated cable routing, 12x142 thru-axle, BSA 68mm threaded BB, flat mount disc, UDH · Fork: CAAD14, full carbon, 1-1/8" to 1-1/2" Delta Steerer, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 55mm offset (44-54cm), 45mm offset (56-61cm) · Carbon fiber
Alignment
Inspect the frame and fork →Frame interfaces
Inspect the bottom bracket and shell →Before accepting the frameset
Inspect the frame and fork →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery
Current market
Snapshot not yet availableProtected live updateReady after page interactionAutomated crawlers do not trigger marketplace requests.
Move, scroll, tap or type to start the protected update.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
