Velopedia Bicycle Archive

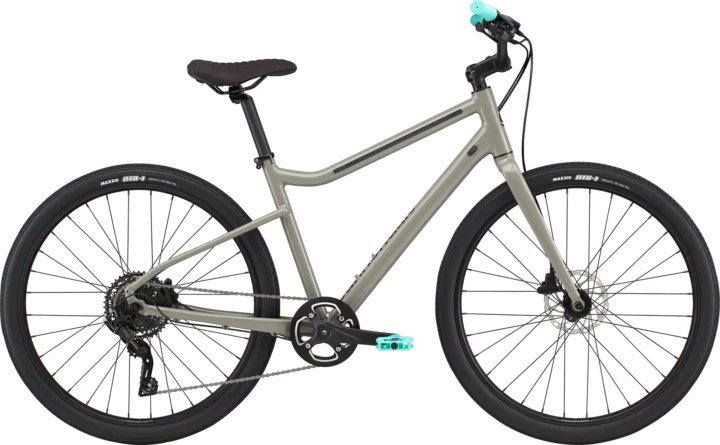

2021 Cannondale Treadwell 2

Original specifications: 27.5 wheels · geometry for 3 published sizes.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #900001225
Model year
2021
Category
Hybrid
Original MSRP
$899.00
Sizes
S, M, L
Colors
Stealth Grey
Geometry
3 manufacturer sizes
In this record
22 specifications · archived image · original MSRP · geometry
Model history 2 other years

Browse other years

Compare side by side

Identification clues

2021 archived details

Published colors
Stealth Grey
Frame
Aluminum

Clues, not proof of model year. Colors vary and components may have been replaced.

Campaign
Original buildAluminum · 27.5

Manufacturer catalog

Published sizes and colors

3 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

SML

Published colors

Stealth Grey

Frameset

Frame ConstructionSmartForm C3 Alloy, Ride-Easy low-standover geometry, Straightshot hidden cable routing, Urban Armor frame bumpers, flat mount disc, rack/fender mounts Ride-Easy low-standover geometry Straightshot hidden cable routing Urban Armor frame bumpers Flat mount disc Rack/fender mounts
Frame MaterialAluminum
ForkSmartForm C3 Alloy blades, 1-1/8" steerer, OutFront offset, flat mount disc, mid-blade rack/fender mounts
Fork MaterialAluminum

Drivetrain

ShiftersmicroSHIFT Advent, 9-speed
Rear DerailleurmicroSHIFT Advent
CranksetProwheel, 38T
Bottom BracketCartridge, square taper
Rear CogsmicroSHIFT, 11-42, 9-speed
ChainKMC X9, 9-speed

Brakes

BrakesBrakes Tektro HD-R280 hydraulic disc, 160/160mm rotors Brake Levers Tektro hydraulic disc

Cockpit & Contact Points

HeadsetSemi-Integrated
HandlebarCannondale Cruise Control riser, 6061 Alloy, 31.8mm, 15° back, 740mm
StemCannondale 3 with Intellimount, Alloy, 31.8mm clamp
SaddleCannondale Treadwell, 170mm, steel rails
Seatpost6061 Alloy, 31.6x350mm

Wheels & Tires

Hubs(F) Sealed Alloy Disc, 5mm Hex Security QR / (R) Sealed Alloy Disc, 5mm Hex Security QR
RimsCannondale, double wall, 32h
SpokesStainless Steel, 14g
Front TireMaxxis DTR-1, 650bx47c
Rear TireMaxxis DTR-1, 650bx47c
Wheel Size27.5

Geometry

3 sizes · 15 measurements

Frame measurements by size.

All geometry measurements3 sizes · 15 measurements
MeasurementSML
Seat tube387 mm450 mm513 mm
Effective top tube557 mm579 mm600 mm
Head tube135 mm165 mm196 mm
Head-tube angle70.5°71°71°
Seat-tube angle71°71°71°
Chainstay / rear center460 mm460 mm460 mm
Wheelbase1059 mm1076 mm1097 mm
Bottom-bracket drop64 mm64 mm64 mm
Bottom-bracket height280 mm280 mm280 mm
Reach368 mm379 mm390 mm
Stack550 mm580 mm610 mm
Standover height665 mm709 mm747 mm
Fork offset / rake55 mm55 mm55 mm
Front center601 mm618 mm639 mm
Trail63 mm60 mm60 mm

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

All published sizes38T · 11–42T · 9-speed
Lowest0.90:1 Highest3.45:1 Total range382%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed
How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications
Front tire · Original
Maxxis DTR-1

650bx47c

Retailer offers
Seatpost · Original
6061 Alloy

31.6x350mm

Retailer offers
Chain · Original
KMC X9

9-speed

More parts (4)Fewer parts
Cassette / rear cogs · Original
microSHIFT

11-42, 9-speed

Brake pads · Original
Brakes Tektro HD-R280 hydraulic disc

160/160mm rotors Brake Levers Tektro hydraulic disc

Rear derailleur · Original
microSHIFT Advent
Shifters · Original
microSHIFT Advent

9-speed

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Maxxis DTR-1, 650bx47c
Rear tire
Maxxis DTR-1, 650bx47c
Drivetrain
9-speed
Seatpost diameter
31.6 mm
Bottom bracket / shell
Cartridge, square taper
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Aluminum · Fork: SmartForm C3 Alloy blades, 1-1/8" steerer, OutFront offset, flat mount disc, mid-blade rack/fender mounts · Aluminum

Archived: Shifters: microSHIFT Advent, 9-speed · Rear derailleur: microSHIFT Advent · Crankset: Prowheel, 38T · Bottom bracket: Cartridge, square taper · Rear cogs: microSHIFT, 11-42, 9-speed · Chain: KMC X9, 9-speed

Archived: Brakes: Brakes Tektro HD-R280 hydraulic disc, 160/160mm rotors Brake Levers Tektro hydraulic disc

Archived: Wheel size: 27.5 · Rims: Cannondale, double wall, 32h · Hubs: (F) Sealed Alloy Disc, 5mm Hex Security QR / (R) Sealed Alloy Disc, 5mm Hex Security QR · Front tire: Maxxis DTR-1, 650bx47c · Rear tire: Maxxis DTR-1, 650bx47c

Controls and contact points

Archived: Headset: Semi-Integrated · Handlebar: Cannondale Cruise Control riser, 6061 Alloy, 31.8mm, 15° back, 740mm · Stem: Cannondale 3 with Intellimount, Alloy, 31.8mm clamp · Seatpost: 6061 Alloy, 31.6x350mm · Saddle: Cannondale Treadwell, 170mm, steel rails
