2020 Cannondale Topstone Tiagra

Archived: 2020 Cannondale Topstone Tiagra · Cyclocross/Gravel · Published sizes: XS, S, M, L, XL

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: SmartForm C2 Alloy, 142x12 thru-axle, tapered headtube, flat mount disc, StraightShot internal cable routing, multiple gear/bottle mounts · Fork: Full Carbon, 1-1/8” to 1-1/4” steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru axle · Carbon

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Archived: Shifters: Shimano Tiagra hydro disc, 2x10 · Front derailleur: Shimano Tiagra braze-on · Rear derailleur: Shimano Tiagra GS · Crankset: TBD · Bottom bracket: FSA Cartridge · Rear cogs: Shimano HG500, 11-34, 10-speed · Chain: KMC X10, 10-speed

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Shimano Tiagra hydro disc, 160/160mm RT54 rotors

• Inspect pads, rotors, calipers and the complete cable or hose path. Both levers should feel consistent and both calipers should release without persistent rubbing.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

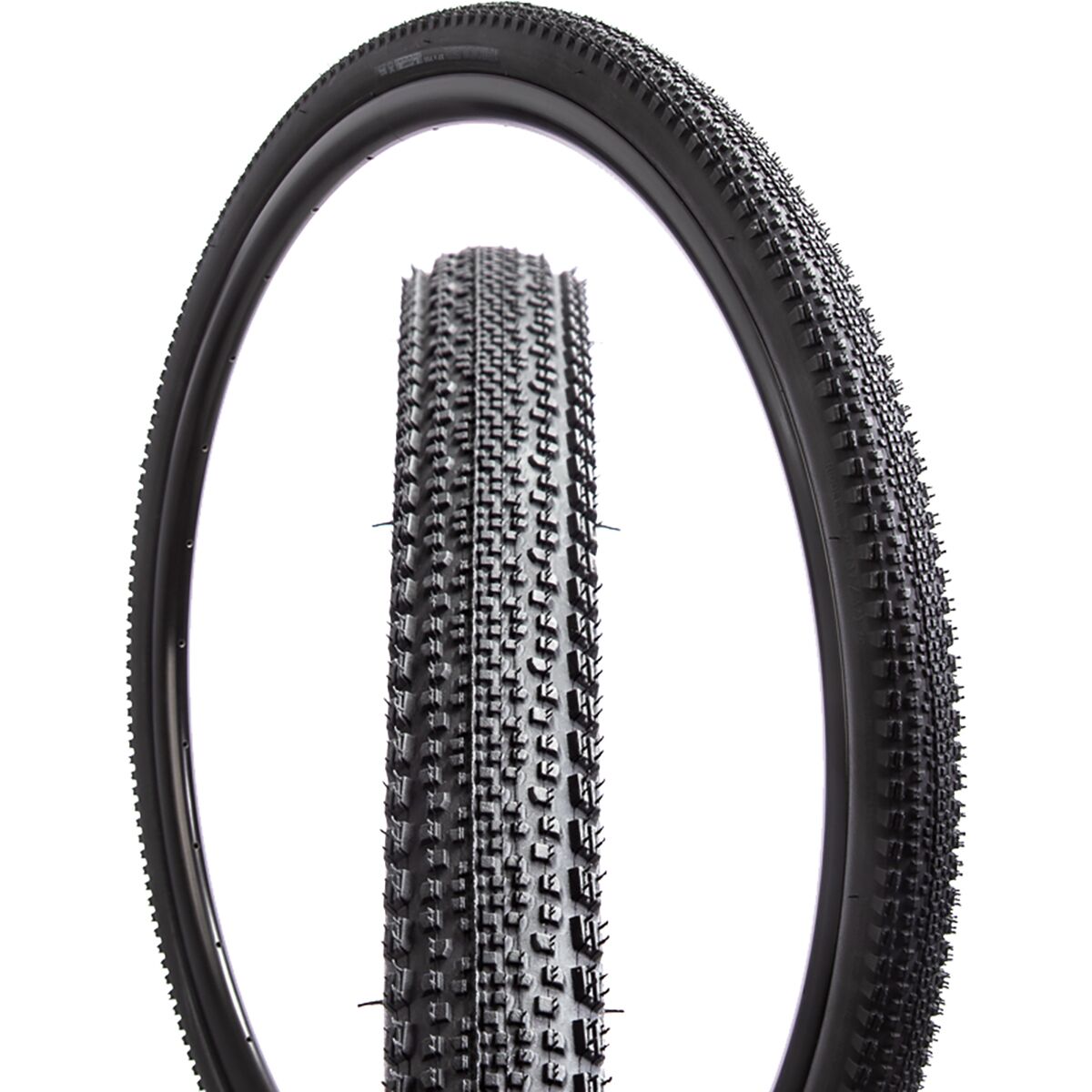

Archived: Wheel size: 700c · Rims: WTB ST i23 TCS, 28h, tubeless ready · Hubs: (F) Formula CL-712, 12x100 centerlock (R) Formula RXC-400 · Front tire: WTB Riddler TCS Light, 700 x 37c, tubeless ready · Rear tire: WTB Riddler TCS Light, 700 x 37c, tubeless ready

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.
• Confirm whether the bike is actually set up tubeless, whether both tires hold pressure, and when sealant and rim tape were last serviced.

Archived: Headset: Topstone Si, 25mm Alloy top cap · Handlebar: Cannondale 3, butted 6061 alloy, 16 deg flare drop · Stem: Cannondale 3, 6061 alloy, 7° · Seatpost: Cannondale C3, 6061 Alloy, 27.2 x 350mm (44-56), 400mm (58-63) · Saddle: Fabric Scoop Radius Sport, steel rails · Pedals: Not Included

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
