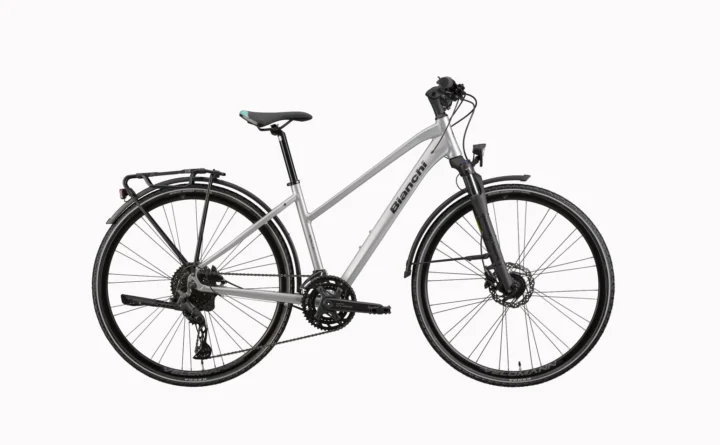

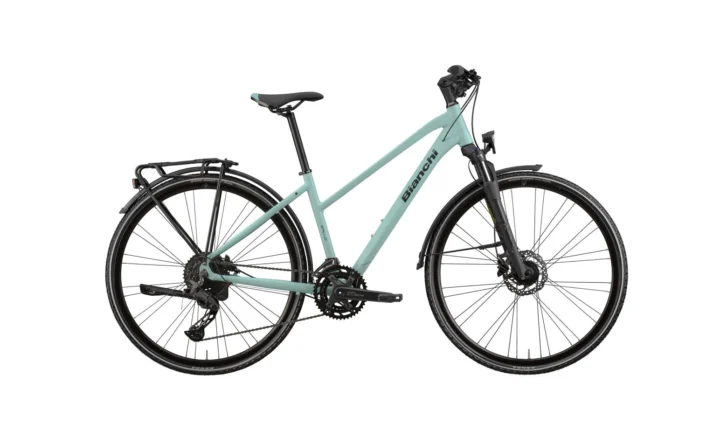

2024 Bianchi Spillo Tourer ST CUES

Archived: Frame: Bianchi Spillo Tourer 28, aluminium, OLD 9×135 QR, post mount sizes SM-MD · Fork: Suntour NEX-HLO 28″, 9×100 QR, 63 mm travel

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.

Archived: Fork: Suntour NEX-HLO 28″, 9×100 QR, 63 mm travel

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Ask for dated fork-service records. A clean exterior does not establish the condition of internal seals, oil or bushings.

Archived: Shifters: Shimano CUES SL-U6000-10R · Rear derailleur: Shimano CUES RD-U6020, 10sp · Crankset: Shimano FC-U6000, 46x30T Crank length: 170 mm · Cassette: Shimano CS-LG300, 10sp, 11-13-15-17-20-23-26-30-34-39T · Chain: Shimano CN-LG500, 10sp

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Shimano MT-200, 2 pistons, mineral oil; Rotors: Shimano SM-RT10, 160 mm (front&Rear); Levers: Shimano BL-MT200

• Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.

Archived: Wheel size: 700c · Wheels: Velomann Aluminium rim, 622x21c, dynamo hub · Front tire: Kenda KWIC JOUR 700×38 · Rear tire: Kenda KWIC JOUR 700×38

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

Archived: Headset: FSA No.8B – ZS-4D · Handlebar: Velomann MTB10A, width: 660 mm, barbore: 31.8 mm, backsweep: 12° · Stem: Velomann UP3+ adjustable 0°-90°, lenght 70 mm · Seatpost: Velomann Aluminium, Diameter 27,2 mm, 15 mm offset length: 350 mm · Saddle: Velomann 2087HRN · Pedals: SP-877 with reflector

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
