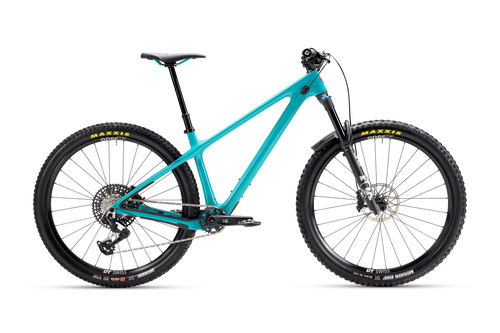

2026 Yeti ARC C2 90 Transmission
Original manufacturer specifications including 29” wheels, 26.01 lb (11.8 kg) published weight, geometry for 4 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Mountain
- Original MSRP
- $4,500.00
- Sizes
- S, M, L, XL
- Colors
- Turquoise
- Weight
- 26.01 lb (11.8 kg)
- Geometry
- 4 manufacturer sizes · Geometry context
- Record coverage
- 20 preserved details · 2 archived images · original MSRP · preserved geometry
- Archive ID
- 900000056
Frameset
| Frame Construction | TURQ series carbon fiber frame, Pressfit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, Universal derailleur hanger (UDH), and axle. |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | FOX Performance 36 SL/130mm |
Drivetrain
| Shifters | SRAM Eagle 90 Transmission |
|---|---|
| Rear Derailleur | SRAM Eagle 90 Transmission |
| Crankset | SRAM Eagle 90 Transmission 32T 165mm |
| Bottom Bracket | SRAM DUB BB92 |
| Cassette | SRAM GX Eagle Transmission 10-52 |
| Chain | SRAM GX Eagle Transmission Flattop |
Brakes
| Brakes | SRAM Motive Bronze; Rotors: SRAM Centerline 180/SRAM Centerline 180 |
|---|
Cockpit & Contact Points
| Headset | Cane Creek 40 Integrated |
|---|---|
| Handlebar | Burgtec Ride Wide Alloy Enduro 35x760mm |
| Stem | Burgtec Enduro MK3 35x50mm |
| Saddle | WTB Solano Chromoly |
| Seatpost | 31.6mm / SM: Crankbrothers Highline 180mm, MD-LG: Oneup Dropper Post 210mm, XL: Oneup Dropper Post 240mm |
Wheels & Tires
| Wheels | DT Swiss M1900 30mm LN |
|---|---|
| Front Tire | Maxxis Minion DHF 2.6 EXO |
| Rear Tire | Maxxis Rekon 2.6 EXO |
| Wheel Size | 29” |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | SM | MD | LG | XL |
|---|---|---|---|---|
| Seat tube | 381 mm | 408.9 mm | 449.6 mm | 495.3 mm |
| Effective top tube | 576.6 mm | 604.5 mm | 624.8 mm | 652.8 mm |
| Head tube | 94 mm | 104.1 mm | 109.2 mm | 119.4 mm |
| Head-tube angle | 67° | 67° | 67° | 67° |
| Seat-tube angle | 76° | 76° | 76° | 76° |
| Chainstay / rear center | 431.8 mm | 431.8 mm | 431.8 mm | 431.8 mm |
| Wheelbase | 1143 mm | 1170.9 mm | 1193.8 mm | 1224.3 mm |
| Bottom-bracket height | 309.9 mm | 309.9 mm | 309.9 mm | 309.9 mm |
| Reach | 419.1 mm | 444.5 mm | 464.8 mm | 490.2 mm |
| Stack | 632.5 mm | 640.1 mm | 645.2 mm | 655.3 mm |
| Standover height | 723.9 mm | 721.4 mm | 718.8 mm | 718.8 mm |
| Fork offset / rake | 43.2 mm | 43.2 mm | 43.2 mm | 43.2 mm |
| Front center | 711.2 mm | 739.1 mm | 762 mm | 789.9 mm |
| Fork length / axle-to-crown | 543.6 mm | 543.6 mm | 543.6 mm | 543.6 mm |
| Wheel size | 29 | 29 | 29 | 29 |
Geometry source: Yeti first-party geometry page ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
SM geometry
Archive context: Its stack of 632.5 mm sits toward the taller end. The head angle of 67° sits somewhat steeper than typical. Its reach of 419.1 mm sits somewhat shorter than typical.
Compared with 180 distinct mountain geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze SM geometry MD geometry
Archive context: Its stack of 640.1 mm sits toward the taller end. The head angle of 67° sits toward the steeper end. Its wheelbase of 1170.9 mm sits somewhat shorter than typical.
Compared with 182 distinct mountain geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze MD geometry LG geometry
Archive context: Its stack of 645.2 mm sits toward the taller end. The chainstay of 431.8 mm sits somewhat shorter than typical. Its reach of 464.8 mm sits somewhat shorter than typical.
Compared with 178 distinct mountain geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze LG geometry XL geometry
Archive context: Its stack of 655.3 mm sits toward the taller end. The chainstay of 431.8 mm sits toward the shorter rear-center end. The head angle of 67° sits toward the steeper end.
Compared with 153 distinct mountain geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry Parts & serviceability
Find replacement parts
SRAM GX Eagle Transmission Flattop
Interpreted as SRAM GX · 12-speed Component family — verify exact version
SRAM GX Eagle Transmission 10-52
Interpreted as SRAM GX · 12-speed Component family — verify exact version
Maxxis Minion DHF 2.6 EXO
Named tire · verify the exact width
Before ordering: Confirm the exact tire width before ordering.
More qualified parts (6)
Maxxis Rekon 2.6 EXO
Named tire · verify the exact width
Before ordering: Confirm the exact tire width before ordering.
SRAM DUB BB92
Named archived component — verify dimensions
WTB Solano Chromoly
Named archived component — verify exact version
SRAM Eagle 90 Transmission 32T 165mm
Component family — verify exact version
SRAM Eagle 90 Transmission
Interpreted as SRAM Eagle 90 · 12-speed Component family — verify exact version
SRAM Eagle 90 Transmission
Interpreted as SRAM Eagle 90 · 12-speed Component family — verify exact version
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- SuspensionAsk when the fork was last serviced. Check the stanchions for damage, look for oil at the seals and make sure the fork moves smoothly without bushing play.Evaluate the suspension →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 20 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Yeti ARC C2 90 Transmission · Mountain · Published sizes: S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: TURQ series carbon fiber frame, Pressfit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, Universal derailleur hanger (UDH), and axle. · Fork: FOX PERFORMANCE 36 SL/130MM
Suspension
Evaluate the suspension →Archived: Fork: FOX PERFORMANCE 36 SL/130MM
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM EAGLE 90 TRANSMISSION · Rear derailleur: SRAM EAGLE 90 TRANSMISSION · Crankset: SRAM EAGLE 90 TRANSMISSION 32T 165MM · Bottom bracket: SRAM DUB BB92 · Cassette: SRAM GX EAGLE TRANSMISSION 10-52 · Chain: SRAM GX EAGLE TRANSMISSION FLATTOP
Brakes
Inspect the brakes →Archived: Brakes: SRAM MOTIVE BRONZE; Rotors: SRAM CENTERLINE 180/SRAM CENTERLINE 180
Wheels and tires
Check wheels and tires →Archived: Wheel size: 29” · Wheels: DT SWISS M1900 30MM LN · Front tire: MAXXIS MINION DHF 2.6 EXO · Rear tire: MAXXIS REKON 2.6 EXO
Controls and contact points
Archived: Headset: CANE CREEK 40 INTEGRATED · Handlebar: BURGTEC RIDE WIDE ALLOY ENDURO 35X760MM · Stem: BURGTEC ENDURO MK3 35X50MM · Seatpost: 31.6MM / SM: CRANKBROTHERS HIGHLINE 180MM, MD-LG: ONEUP DROPPER POST 210MM, XL: ONEUP DROPPER POST 240MM · Saddle: WTB SOLANO CHROMOLY
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
