2026 Yeti ASR 40TH Anniversary
Mountain bicycle from the Velopedia specification archive.
Selling this bike? Create a Bike History Report
- Original MSRP
- $13,900.00
- Sizes
- XS, S, M, L, XL
- Colors
- 40th Anniversary
- Weight
- 24.4 lb (11.07 kg)
- Geometry
- 5 manufacturer sizes · Ride analysis
- Archive ID
- 900000839
Recently checked market
0 qualified asks 0 high-confidence matches
Model-family used asking
No listingsNo close used matches in the latest snapshot.
Model-family new asking
No listingsNo close matches in this condition.
View market details Move, scroll, tap or type to start the protected update.
Velopedia analysis
What the specifications mean
The fork and rear shock need to be set up as a pair. If their sag or rebound settings are far apart, the front and rear of the bike can react very differently. Electronic shifting removes the usual shift cable but adds a separate battery and controls, while the 520% cassette range describes how much gearing is available. Carbon construction changes the inspection emphasis from metal-style dents and corrosion to impact damage, ripples and overtightened clamp areas.
Suspension setup
Front + rear
Fork and shock pressure, sag and rebound should be balanced and recorded independently.
Drivetrain
Electronic · 520% range
Shift-system battery state joins derailleur setup and sprocket compatibility as a troubleshooting variable.
Frame material
Carbon / composite
Look for impact damage and clamp marks rather than metal-style dents or rust.
Wheel standard
29 in · 622 mm
Rim width and frame or fork clearance remain important beyond nominal diameter.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- SuspensionAsk when the fork and shock were last serviced. Check the stanchions for damage, look for oil at the seals, cycle both units through their travel and test the suspension pivots for play.Evaluate the suspension →
- DrivetrainConfirm every shift-system battery charges, every shift control works and the derailleur moves cleanly across the cassette. Make sure the matching shift-system charger is included, then measure chain wear and inspect the cassette teeth.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 22 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Yeti ASR 40TH Anniversary · Mountain · Published sizes: XS, S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: TURQ Series carbon fiber frame, threaded bottom bracket, 148mm x 12mm BOOST dropouts, integrated derailleur hanger and axle · Fork: FOX FACTORY 34 SL GRIP X 130MM ANNIVERSARY
Suspension
Evaluate the suspension →Archived: Fork: FOX FACTORY 34 SL GRIP X 130MM ANNIVERSARY · Rear shock: FOX FACTORY FLOAT SL ANNIVERSARY
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM AXS POD ULTIMATE CONTROLLER ANNIVERSARY · Rear derailleur: SRAM XX EAGLE AXS TRANSMISSION ANNIVERSARY · Crankset: SRAM XX TRANSMISSION 32T 170MM ANNIVERSARY · Bottom bracket: CHRIS KING THREADSET BSA 73 · Cassette: SRAM XX EAGLE TRANSMISSION 10-52 · Chain: SRAM XX EAGLE TRANSMISSION FLATTOP
Brakes
Inspect the brakes →Archived: Brakes: SRAM MOTIVE ULTIMATE; Rotors: SRAM CENTERLINE-X CL 180/SRAM CENTERLINE-X CL 180
Wheels and tires
Check wheels and tires →Archived: Wheel size: 29” · Wheels: DT SWISS XMC 1200 SPLINE 30MM ANNIVERSARY · Front tire: MAXXIS FOREKASTER 2.4 EXO ANNIVERSARY · Rear tire: MAXXIS FOREKASTER 2.4 EXO ANNIVERSARY
Controls and contact points
Archived: Headset: CHRIS KING DROPSET 3 ANNIVERSARY · Handlebar: YETI 35X760 ANNIVERSARY · Stem: BIKE YOKE BARKEEPER 55MM ANNIVERSARY · Seatpost: FOX FACTORY TRANSFER NEO 31.6MM / SM: 125MM, MD-XL: 150MM · Saddle: WTB SOLANO SL TITANIUM ANNIVERSARY
Before and during the test ride
Follow the full used-bike inspection order →Interpretation based on the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Frameset
| Frame Construction | TURQ Series carbon fiber frame, threaded bottom bracket, 148mm x 12mm BOOST dropouts, integrated derailleur hanger and axle |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | FOX Factory 34 SL Grip X 130MM Anniversary |
| Rear Shock | FOX Factory Float SL Anniversary |
Drivetrain
| Shifters | SRAM AXS POD Ultimate Controller Anniversary |
|---|---|

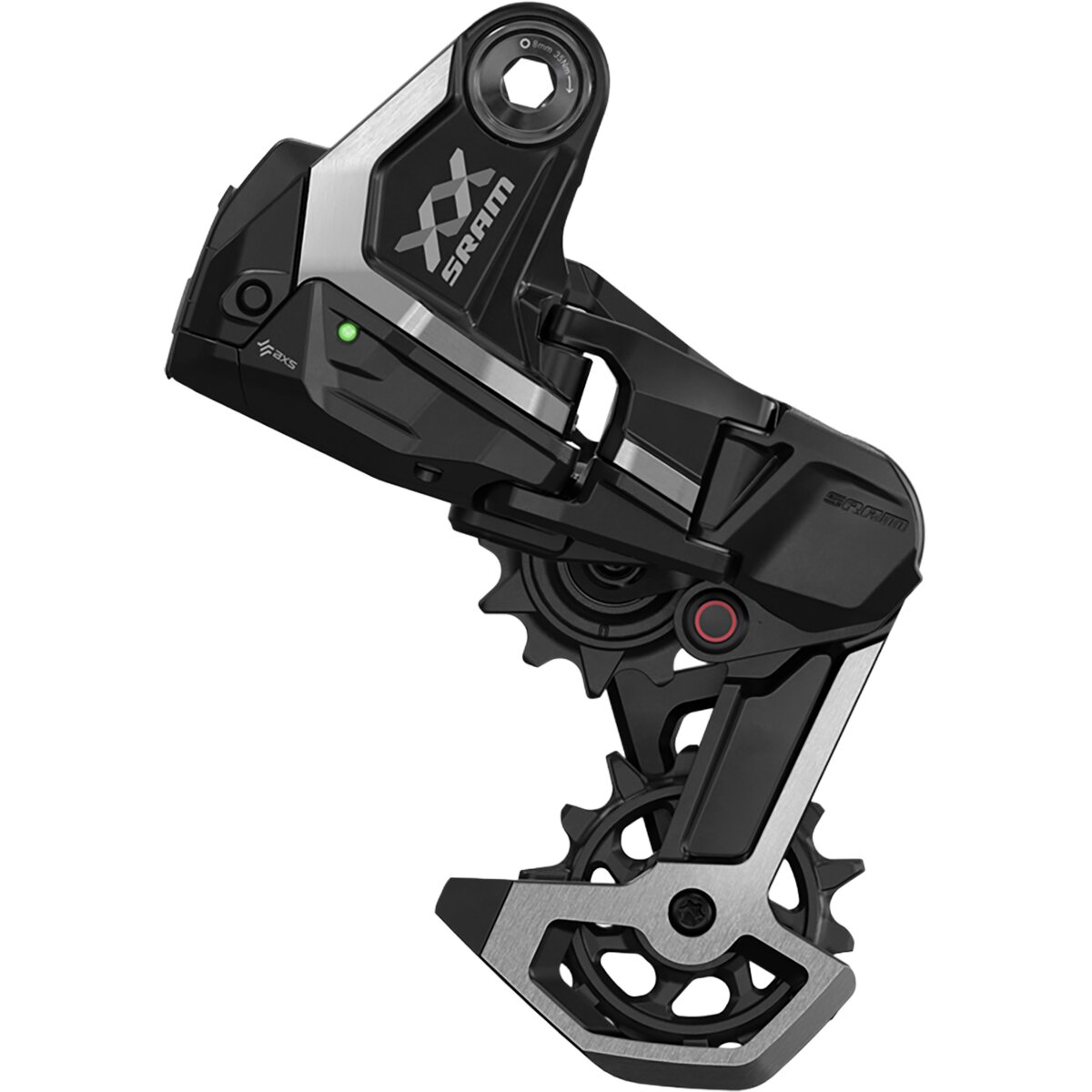

| Rear Derailleur | SRAM XX Eagle AXS Transmission Anniversary |
| Crankset | SRAM XX Transmission 32T 170MM Anniversary |
| Bottom Bracket | Chris King Threadset BSA 73 |
| BB Shell Width | 73 mm |

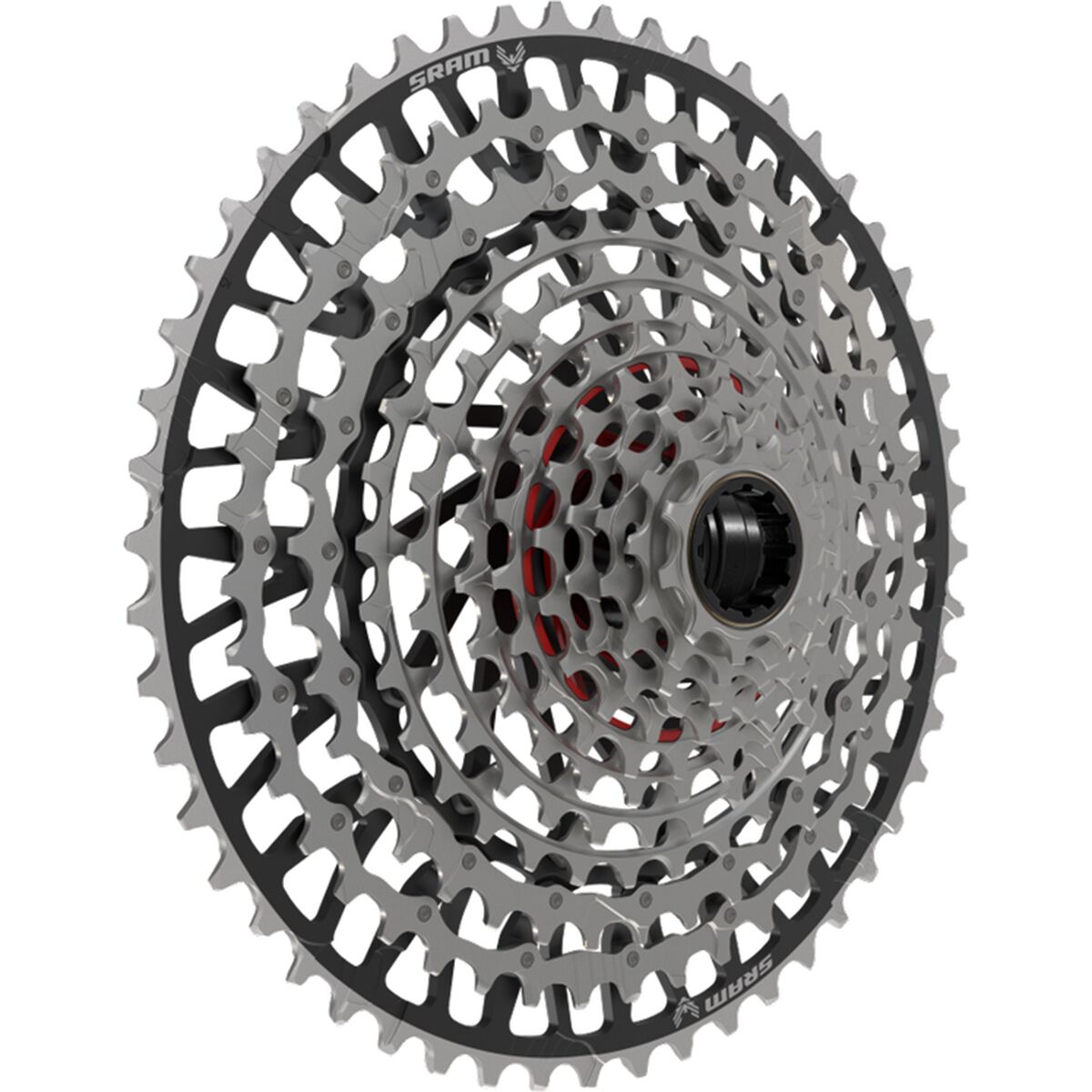

| Cassette | SRAM XX Eagle Transmission 10-52 |

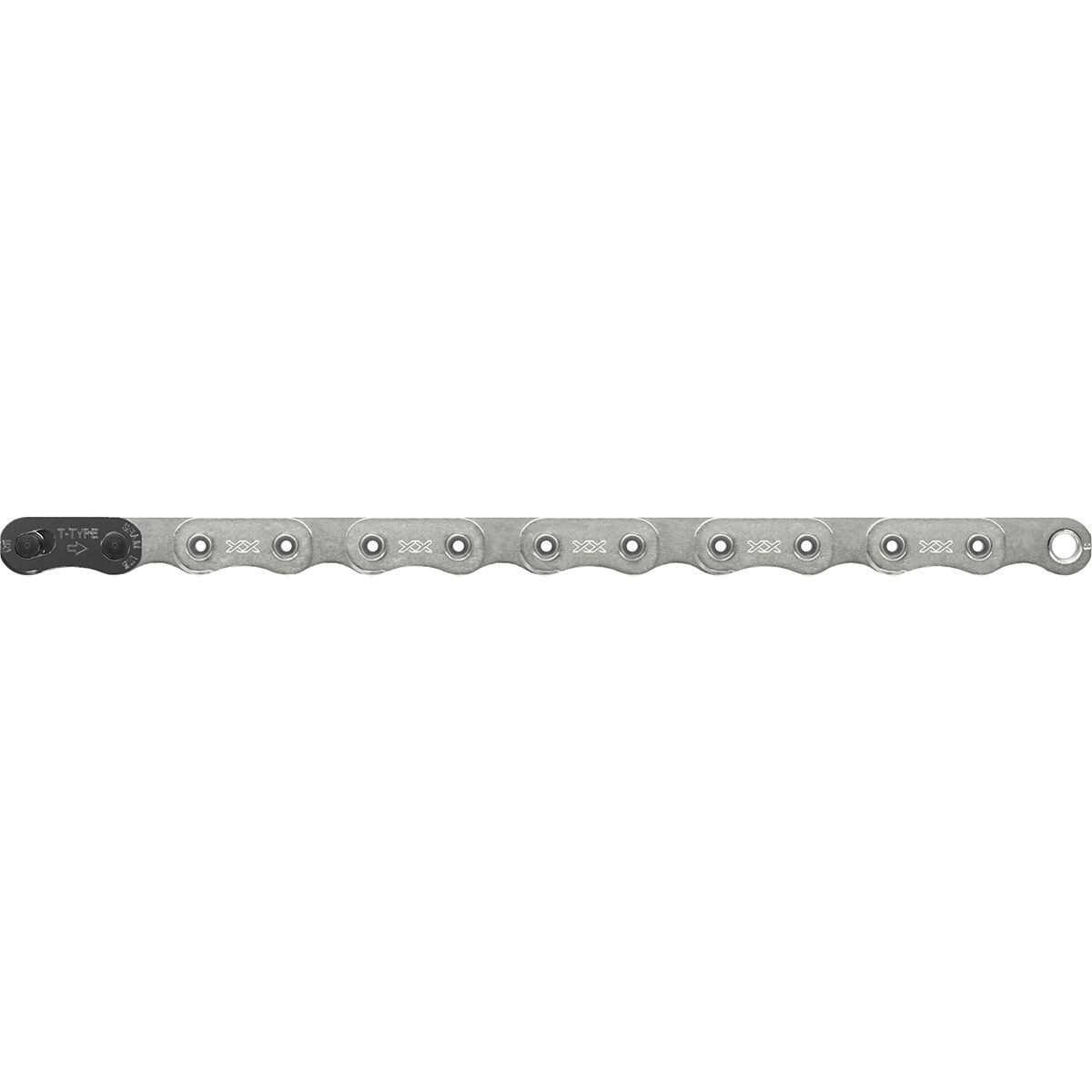

| Chain | SRAM XX Eagle Transmission Flattop |
Brakes
| Brakes | SRAM MOTIVE ULTIMATE; Rotors: SRAM CENTERLINE-X CL 180/SRAM CENTERLINE-X CL 180 |
|---|
Cockpit & Contact Points
| Headset | Chris King Dropset 3 Anniversary |
|---|---|
| Handlebar | Yeti 35x760 Anniversary |
| Stem | Bike Yoke Barkeeper 55MM Anniversary |
| Saddle | WTB Solano SL Titanium Anniversary |
| Seatpost | FOX Factory Transfer NEO 31.6MM / SM: 125MM, MD-XL: 150MM |
Wheels & Tires
| Wheels | DT Swiss XMC 1200 Spline 30MM Anniversary |
|---|---|
| Front Tire | Maxxis Forekaster 2.4 EXO Anniversary |
| Rear Tire | Maxxis Forekaster 2.4 EXO Anniversary |
| Wheel Size | 29” |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Seat tube | 398.78 mm | 408.94 mm | 429.26 mm | 469.9 mm | 495.3 mm |
| Effective top tube | 553.72 mm | 574.04 mm | 599.44 mm | 622.3 mm | 652.78 mm |
| Head tube | 91.44 mm | 91.44 mm | 101.6 mm | 111.76 mm | 132.08 mm |
| Head-tube angle | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° |
| Seat-tube angle | 75.5° | 75.5° | 75.5° | 75.5° | 75.5° |
| Actual seat-tube angle | 70.4° | 70.8° | 71.2° | 71.6° | 72.1° |
| Chainstay / rear center | 431.8 mm | 434.34 mm | 436.88 mm | 439.42 mm | 441.96 mm |
| Wheelbase | 1122.68 mm | 1143 mm | 1173.48 mm | 1201.42 mm | 1236.98 mm |
| Bottom-bracket height | 335.28 mm | 335.28 mm | 335.28 mm | 335.28 mm | 335.28 mm |
| Reach | 398.78 mm | 419.1 mm | 444.5 mm | 464.82 mm | 490.22 mm |
| Stack | 591.82 mm | 591.82 mm | 599.44 mm | 609.6 mm | 629.92 mm |
| Standover height | 767.08 mm | 767.08 mm | 772.16 mm | 772.16 mm | 777.24 mm |
| Fork offset / rake | 43.18 mm | 43.18 mm | 43.18 mm | 43.18 mm | 43.18 mm |
| Front center | 688.34 mm | 708.66 mm | 736.6 mm | 762 mm | 795.02 mm |
| Fork length / axle-to-crown | 530.86 mm | 530.86 mm | 530.86 mm | 530.86 mm | 530.86 mm |
Geometry source: Yeti first-party geometry page ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry interpretation
What this geometry means
XS geometry
Riding position
The 591.8 mm stack is tall relative to the 398.8 mm reach, pointing to a more upright front-end position rather than an especially long, low cockpit.
Handling tendencies
A 66.5° head angle combined with a 1122.7 mm wheelbase points to fairly neutral for modern mountain handling steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Archive context
Its reach of 398.8 mm sits toward the shorter end. Its wheelbase of 1122.7 mm sits toward the shorter end. The head angle of 66.5° sits toward the steeper end.
SM geometry
Riding position
The 591.8 mm stack is tall relative to the 419.1 mm reach, pointing to a more upright front-end position rather than an especially long, low cockpit.
Handling tendencies
A 66.5° head angle combined with a 1143 mm wheelbase points to fairly neutral for modern mountain handling steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Archive context
Its reach of 419.1 mm sits toward the shorter end. Its stack of 591.8 mm sits toward the lower end. The head angle of 66.5° sits toward the steeper end.
MD geometry
Riding position
A 444.5 mm reach paired with 599.4 mm of stack gives this size a moderate frame proportion: roomy enough when standing without pushing strongly toward either a very low or very upright front end.
Handling tendencies
A 66.5° head angle combined with a 1173.5 mm wheelbase points to fairly neutral for modern mountain handling steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Archive context
Its stack of 599.4 mm sits toward the lower end. Its reach of 444.5 mm sits toward the shorter end. The head angle of 66.5° sits toward the steeper end.
LG geometry
Riding position
A 464.8 mm reach paired with 609.6 mm of stack gives this size a moderate frame proportion: roomy enough when standing without pushing strongly toward either a very low or very upright front end.
Handling tendencies
A 66.5° head angle combined with a 1201.4 mm wheelbase points to fairly neutral for modern mountain handling steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Archive context
Its stack of 609.6 mm sits toward the lower end. Its reach of 464.8 mm sits toward the shorter end. The head angle of 66.5° sits toward the steeper end.
XL geometry
Riding position
With 490.2 mm of reach and 629.9 mm of stack, the frame has a relatively long, low proportion that should leave plenty of room when standing and put the front end toward the lower side of modern mountain-bike fit.
Handling tendencies
A 66.5° head angle combined with a 1237 mm wheelbase points to fairly neutral for modern mountain handling steering and chassis behavior. The longer the chassis and slacker the front end, the more the bike tends to favor composure over very quick direction changes.
Archive context
The head angle of 66.5° sits toward the steeper end. Its reach of 490.2 mm sits toward the shorter end. Its stack of 629.9 mm sits toward the lower end.
Across the size range
From XS to XL, reach grows by 91.4 mm and stack by 38.1 mm, showing how the frame becomes both longer and taller through the published size range. Chainstay length grows from 431.8 to 442 mm across the range. That size-specific rear-center strategy helps the larger frames grow at both ends instead of adding all of their length ahead of the bottom bracket.
Geometry describes frame proportions and likely tendencies, not a ride test. Rider proportions, cockpit setup, tires, suspension settings, wheel configuration, and component choices can materially change how a bicycle fits and feels.
Recently checked marketplace data
Market Snapshot
Velopedia did not find a close used eBay listing in the latest snapshot. New and used listings remain separate.
Evidence standard
Fixed-price and Best Offer item prices only
Shipping and tax excluded
Active asks, not completed sales
No close current matches found. Velopedia did not find an eBay listing confident enough to include in the latest snapshot.
Listings shown have not passed their eBay-supplied end time. Velopedia rechecks matched bicycles on a protected weekly cycle; availability can still change between checks. Price calculations use active fixed-price and Best Offer item prices before shipping and tax. Auction bids, auction-only prices, classified ads, lower-confidence Review candidates and ended listings are excluded. These observations are not completed-sale prices, a certified appraisal or a guarantee of value. Browse recently checked matched listings.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
