Velopedia Bicycle Archive

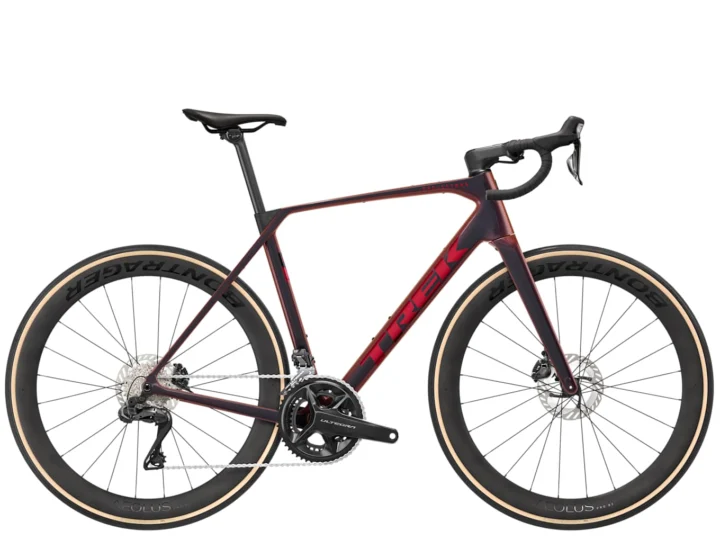

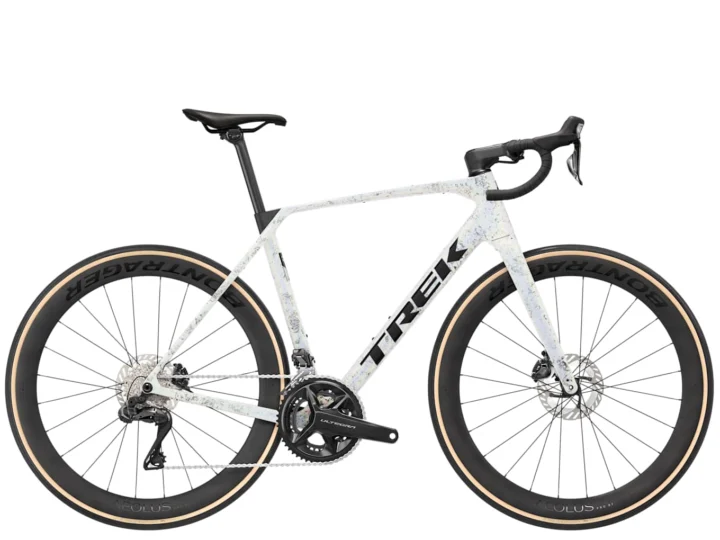

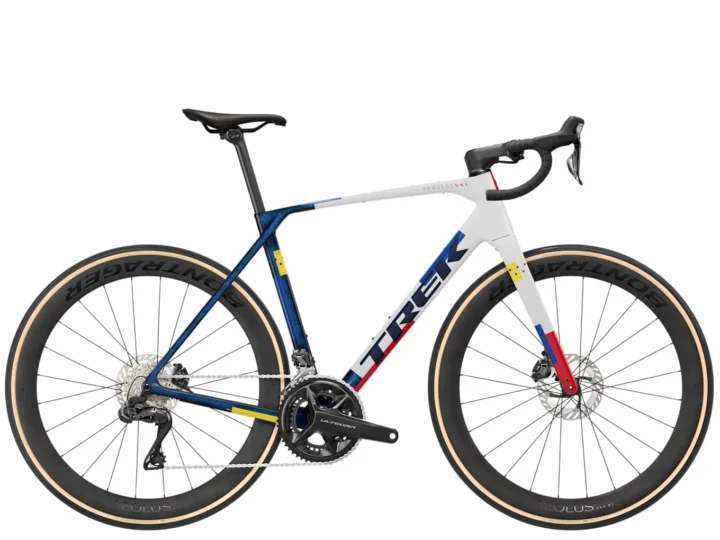

2027 Trek Domane SLR 7 Gen 5
Road bicycle from the Velopedia specification archive.
- Original MSRP
- $7,999.99
- Sizes
- XS; S; M; ML; L; XL
- Colors
- Matte Deep Smoke; Navy Smoke/Trek White; Serpentine; Mother of Pearl/Silver Marble
- Geometry
- 6 manufacturer sizes
- Archive ID
- 900000669
Recently checked market
0 close matches
Observed used market
No listingsNo close used matches in the latest snapshot.
New asking
No listingsNo close matches in this condition.
View market details Move, scroll, tap or type to start the protected update.
Velopedia analysis
What the specifications mean
Electronic shifting removes the usual shift cable but adds a separate battery and controls, while the 309% cassette range describes how much gearing is available. The archive does not identify the brake system, so its controls, actuation method, pads and braking surfaces need to be checked directly. The rims and tires are tubeless-ready, but that label does not confirm the bike is currently set up without tubes; tape, valves, sealant and tire condition still matter.
Drivetrain
Electronic · 309% range
Shift-system battery state joins derailleur setup and sprocket compatibility as a troubleshooting variable.
Brake inspection
Type not specified
Identify the installed system before choosing parts, cables, hoses or service procedures.
Tire setup
Tubeless-ready
The rims and tires may support tubeless use, but the bike may still be running tubes.
Frame material
Carbon / composite
Look for impact damage and clamp marks rather than metal-style dents or rust.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesIdentify the installed brake system before riding or ordering parts. Test every installed brake separately at walking speed, confirm it stops firmly and releases cleanly, then inspect its pads, braking surfaces and complete cable or hose path.Inspect the brakes →
- DrivetrainConfirm every shift-system battery charges, every shift control works and the derailleur moves cleanly across the cassette. Make sure the matching shift-system charger is included, then measure chain wear and inspect the cassette teeth.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 18 checks based on 4 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2027 Trek Domane SLR 7 Gen 5 · Road · Published sizes: XS; S; M; ML; L; XL
Frame and fork
Inspect the frame and fork →Archived: Frame: 900 Series OCLV Carbon, internal cable routing, integrated frame bag mounts, T47, integrated chain keeper, fender mounts, flat mount disc, UDH 142x12mm thru axle · Fork: Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle · Carbon fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Ultegra R8171 Di2, 12 speed · Front derailleur: Shimano Ultegra R8150 Di2, braze-on, down swing · Rear derailleur: Shimano Ultegra R8150 Di2, 34T max cog · Crankset: XS, S: Shimano Ultegra R8100, 50/34, 160mm length / M, ML: Shimano Ultegra R8100, 50/34, 165mm length / L, XL: Shimano Ultegra R8100, 50/34, 170mm length · Bottom bracket: Praxis, T47 threaded, internal bearing · Cassette: Shimano Ultegra R8101, 11-34, 12 speed · Chain: Shimano Ultegra/XT M8100
Brakes
Inspect the brakes →Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c · Front tire: Bontrager Kwaremont RSL, Tubeless Ready, GR puncture protection, aramid bead, 320 tpi, 700x35mm · Rear tire: Bontrager Kwaremont RSL, Tubeless Ready, GR puncture protection, aramid bead, 320 tpi, 700x35mm
Before and during the test ride
Follow the full used-bike inspection order →Interpretation based on the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Frameset
| Frame Construction | 900 Series OCLV Carbon, internal cable routing, integrated frame bag mounts, T47, integrated chain keeper, fender mounts, flat mount disc, UDH 142x12mm thru axle |
|---|---|
| Frame Material | Carbon fiber |
| Fork | Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle |
| Fork Material | Carbon fiber |
Drivetrain
| Shifters | Shimano Ultegra R8171 Di2, 12 speed |
|---|---|
| Front Derailleur | Shimano Ultegra R8150 Di2, braze-on, down swing |
| Rear Derailleur | Shimano Ultegra R8150 Di2, 34T max cog |
| Crankset | XS, S: Shimano Ultegra R8100, 50/34, 160mm length / M, ML: Shimano Ultegra R8100, 50/34, 165mm length / L, XL: Shimano Ultegra R8100, 50/34, 170mm length |
| Bottom Bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano Ultegra R8101, 11-34, 12 speed |
| Chain | Shimano Ultegra/XT M8100 |
Cockpit & Contact Points
| Handlebar | XS: Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 36cm width / S: Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 38cm width / M, ML: Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 40cm width / L, XL: Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 42cm width |
|---|---|
| Stem | XS: Trek RCS Pro, -7 degree, 80mm length / S: Trek RCS Pro, -7 degree, 90mm length / M: Trek RCS Pro, -7 degree, 100mm length / ML, L: Trek RCS Pro, -7 degree, 110mm length / XL: Trek RCS Pro, -7 degree, 120mm length |
| Saddle | Verse Short Pro, carbon rails, 145mm width |
| Seatpost | Bontrager RSL carbon, 27.2mm, 5mm offset |
Wheels & Tires
| Front Tire | Bontrager Kwaremont RSL, Tubeless Ready, GR puncture protection, aramid bead, 320 tpi, 700x35mm |
|---|---|
| Rear Tire | Bontrager Kwaremont RSL, Tubeless Ready, GR puncture protection, aramid bead, 320 tpi, 700x35mm |
| Wheel Size | 700c |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS | S | M | ML | L | XL |
|---|---|---|---|---|---|---|
| Seat tube | 444 mm | 476 mm | 500 mm | 533 mm | 553 mm | 593 mm |
| Effective top tube | 520 mm | 530 mm | 541 mm | 553 mm | 562 mm | 575 mm |
| Head tube | 106 mm | 139 mm | 159 mm | 170 mm | 192 mm | 226 mm |
| Head-tube angle | 71.3° | 71.1° | 71.2° | 71.9° | 72° | 72.1° |
| Seat-tube angle | 73.5° | 73.7° | 73.5° | 73.3° | 73.3° | 73.3° |
| Chainstay / rear center | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 987 mm | 1002 mm | 1011 mm | 1010 mm | 1019 mm | 1033 mm |
| Bottom-bracket drop | 80 mm | 80 mm | 80 mm | 78 mm | 78 mm | 75 mm |
| Reach | 368 mm | 371 mm | 374 mm | 377 mm | 380 mm | 384 mm |
| Stack | 524 mm | 555 mm | 575 mm | 596 mm | 618 mm | 648 mm |
| Standover height | 721 mm | 753 mm | 775 mm | 805 mm | 826 mm | 863 mm |
| Fork offset / rake | 53 mm | 53 mm | 53 mm | 48 mm | 48 mm | 48 mm |
| Trail | 62 mm | 63 mm | 63 mm | 63 mm | 63 mm | 62 mm |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
Geometry source: Trek first-party OCC sizing data ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
