2026 Trek Madone SLR 9 AXS 1x Gen 8
Road bicycle from the Velopedia specification archive.
- Original MSRP
- $12,999.99
- Sizes
- XS; S; M; ML; L; XL
- Colors

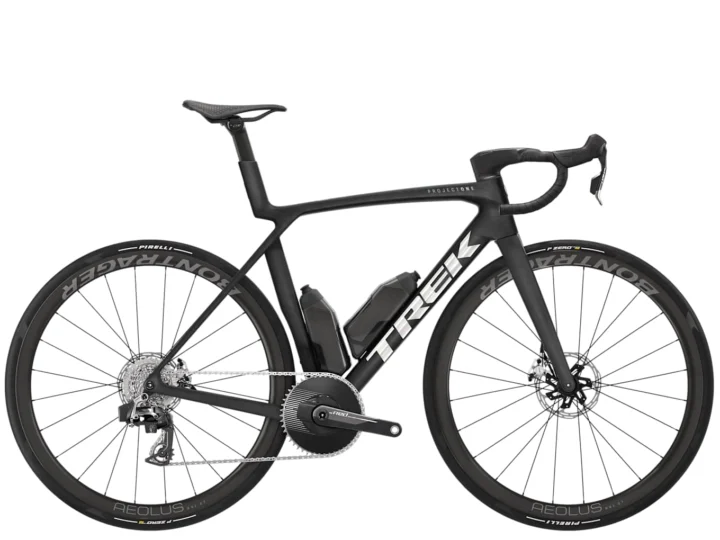

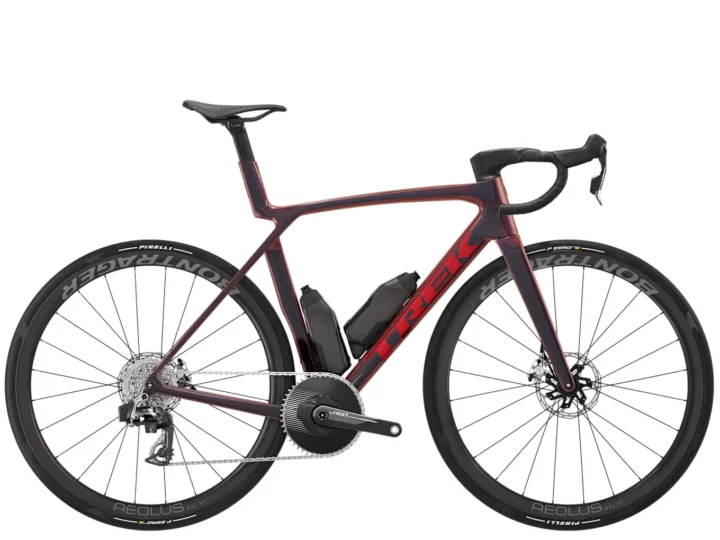

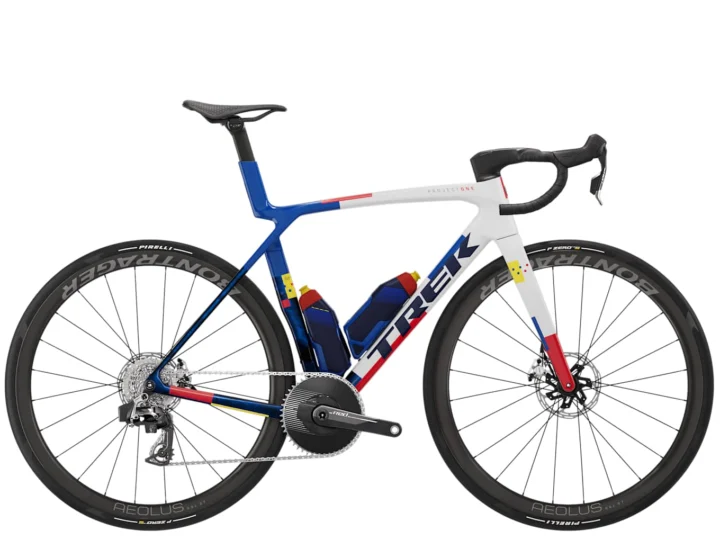

- Matte Deep Smoke; Purple Phaze/Amethyst Marble; Serpentine; Lidl-Trek Team Replica
- Geometry
- 6 manufacturer sizes
- Archive ID
- 900000187
Current market
Snapshot not yet availableProtected live updateReady after page interactionAutomated crawlers do not trigger marketplace requests.
Move, scroll, tap or type to start the protected update.
Velopedia analysis
What the specifications mean
Electronic shifting removes the usual shift cable but adds a separate battery and controls, while the 360% cassette range describes how much gearing is available. Hydraulic disc brakes shift routine service toward pad and rotor condition, fluid leaks and use of the correct bleed fluid. Carbon construction changes the inspection emphasis from metal-style dents and corrosion to impact damage, ripples and overtightened clamp areas.
Drivetrain
Electronic · 360% range
Shift-system battery state joins derailleur setup and sprocket compatibility as a troubleshooting variable.
Brake service
Hydraulic disc
Pad and rotor condition plus the correct bleed fluid are the primary service checks.
Frame material
Carbon / composite
Look for impact damage and clamp marks rather than metal-style dents or rust.
Wheel standard
700C · 622 mm
The label fixes rim diameter, not tire width or available frame and fork clearance.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesBoth levers should feel firm and return cleanly. Check for fluid around the levers and calipers, inspect pad thickness and contamination, and look for worn or bent rotors.Inspect the brakes →
- DrivetrainConfirm every shift-system battery charges, every shift control works and the derailleur moves cleanly across the cassette. Make sure the matching shift-system charger is included, then measure chain wear and inspect the cassette teeth.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Trek Madone SLR 9 AXS 1x Gen 8 · Road · Published sizes: XS; S; M; ML; L; XL
Frame and fork
Inspect the frame and fork →Archived: Frame: 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle · Fork: Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle · Carbon fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM RED AXS E1 · Rear derailleur: SRAM RED AXS E1, 36T max cog · Bottom bracket: SRAM DUB, T47 threaded, internal bearing · Cassette: SRAM RED XG-1290 E1, 10-36, 12 speed · Chain: SRAM RED E1
Brakes
Inspect the brakes →Archived: Brakes: SRAM Red AXS E1 hydraulic disc, flat mount
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c · Front tire: Pirelli P Zero Race RS, 120 tpi, 700x28mm · Rear tire: Pirelli P Zero Race RS, 120 tpi, 700x28mm
Controls and contact points
Archived: Headset: Bontrager Headset Expander Plug and Top Cap · Seatpost: Madone aero carbon seatpost, 0mm offset, short length · Saddle: XS, S, M, ML, L, XL: Aeolus RSL, carbon rails, 145mm width / XS, S, M, ML, L, XL: Aeolus RSL AirLoom, carbon rails, 145mm width
Before and during the test ride
Follow the full used-bike inspection order →Interpretation based on the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Frameset
| Frame Construction | 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle |
|---|---|
| Frame Material | Carbon fiber |
| Fork | Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle |
| Fork Material | Carbon fiber |
Drivetrain
| Shifters | SRAM RED AXS E1 |
|---|---|
| Rear Derailleur | SRAM RED AXS E1, 36T max cog |
| Crankset | XS, S, M, ML: SRAM RED E1, power meter, 48T, DUB, 165mm length / XS, S: SRAM Red 1 AXS E1 w/ Power Meter, 48T Aero, DUB, 160mm length / M, ML, L, XL: SRAM RED E1, power meter, 48T, DUB, 170mm length / L, XL: SRAM RED E1, power meter, 48T, DUB, 172.5mm length |
| Bottom Bracket | SRAM DUB, T47 threaded, internal bearing |
| Cassette | SRAM RED XG-1290 E1, 10-36, 12 speed |
| Chain | SRAM RED E1 |
Brakes
| Brakes | SRAM Red AXS E1 hydraulic disc, flat mount |
|---|
Cockpit & Contact Points
| Headset | Bontrager Headset Expander Plug and Top Cap |
|---|---|
| Handlebar | XS: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 35cm control width, 38cm drop width, 80mm stem length / S: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 37cm control width, 40cm drop width, 90mm stem length / M: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 90mm stem length / ML, L: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 100mm stem length / XL: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 110mm stem length |
| Stem | XS: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 35cm control width, 38cm drop width, 80mm stem length / S: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 37cm control width, 40cm drop width, 90mm stem length / M: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 90mm stem length / ML, L: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 100mm stem length / XL: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 110mm stem length |
| Saddle | XS, S, M, ML, L, XL: Aeolus RSL, carbon rails, 145mm width / XS, S, M, ML, L, XL: Aeolus RSL AirLoom, carbon rails, 145mm width |
| Seatpost | Madone aero carbon seatpost, 0mm offset, short length |
Wheels & Tires
| Wheels | (F) XS, S, M, ML, L, XL: Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle / XS, S, M, ML, L, XL: Bontrager Aeolus RSL 43X, OCLV Carbon, Tubeless Ready, 43mm rim depth, 100x12mm thru axle / (R) XS, S, M, ML, L, XL: Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle / XS, S, M, ML, L, XL: Bontrager Aeolus RSL 43X, OCLV Carbon, Tubeless Ready, 38mm rim depth, Shimano freehub, 142x12mm thru axle |
|---|---|
| Front Tire | Pirelli P Zero Race RS, 120 tpi, 700x28mm |
| Rear Tire | Pirelli P Zero Race RS, 120 tpi, 700x28mm |
| Wheel Size | 700c |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS | S | M | ML | L | XL |
|---|---|---|---|---|---|---|
| Seat tube | 404 mm | 440 mm | 476 mm | 512 mm | 548 mm | 609 mm |
| Effective top tube | 517 mm | 532 mm | 545 mm | 557 mm | 568 mm | 584 mm |
| Head tube | 100 mm | 121 mm | 136 mm | 150 mm | 172 mm | 201 mm |
| Head-tube angle | 71.6° | 72.2° | 72.9° | 73.5° | 73.8° | 73.9° |
| Seat-tube angle | 73.8° | 73.8° | 73.6° | 73.4° | 73.4° | 73.4° |
| Chainstay / rear center | 410 mm | 410 mm | 410 mm | 410 mm | 411 mm | 412 mm |
| Wheelbase | 971 mm | 976 mm | 981 mm | 980 mm | 990 mm | 1007 mm |
| Bottom-bracket drop | 72 mm | 72 mm | 70 mm | 70 mm | 68 mm | 68 mm |
| Reach | 370 mm | 378 mm | 384 mm | 389 mm | 394 mm | 402 mm |
| Stack | 507 mm | 530 mm | 546 mm | 562 mm | 582 mm | 610 mm |
| Standover height | 704 mm | 734 mm | 762 mm | 790 mm | 820 mm | 863 mm |
| Fork offset / rake | 50 mm | 45 mm | 45 mm | 40 mm | 40 mm | 40 mm |
| Trail | 61 mm | 62 mm | 58 mm | 59 mm | 57 mm | 57 mm |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
Geometry source: Trek first-party OCC sizing data ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Gallery
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
