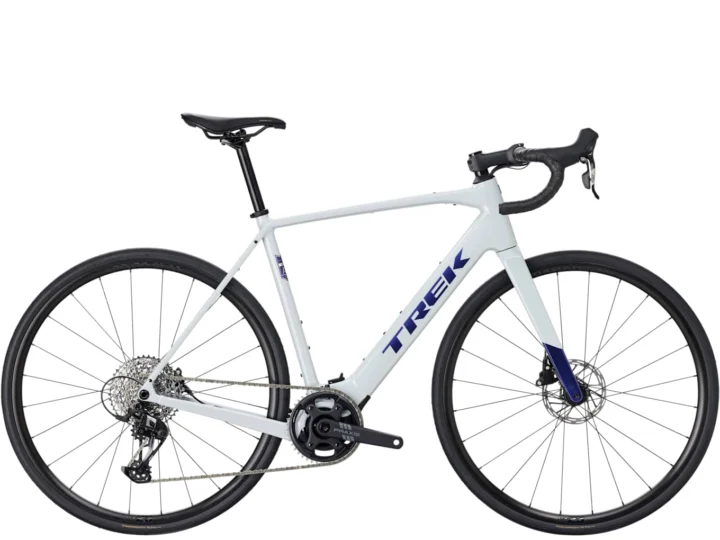

2026 Trek Domane+ ALR 5

Original specifications: 700c wheels · geometry for 6 published sizes.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #900000645
Model year
2026
Category
Road
Original MSRP
$4,999.99
Sizes
XS, S, M, ML, L, XL
Colors
Matte Dark Star, Plasma Grey Pearl
Geometry
6 manufacturer sizes
In this record
20 specifications · 2 archived images · original MSRP · geometry
Sponsored affiliate link
Original buildAluminum · 700c

Manufacturer catalog

Published sizes and colors

6 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

XSSMMLLXL

Published colors

Matte Dark StarPlasma Grey Pearl

Frameset

Frame Construction300 Series Alpha Aluminum, TQ drive system, hidden fender mounts, rack mounts, integrated frame bag mounts, internal cable routing, flat mount disc, integrated chainkeeper, UDH, 142x12mm chamfered thru axle
Frame MaterialAluminum
ForkDomane+ carbon, tapered carbon steerer, fender mounts, flat mount disc, 12x100mm thru axle
Fork MaterialCarbon fiber

Drivetrain

ShiftersSRAM Apex, 12 speed
Rear DerailleurSRAM Apex XPLR, 44T max cog
CranksetXS, S: Praxis Alloy, 165mm length / M, ML: Praxis Alloy, 170mm length / L, XL: Praxis Alloy, 172.5mm length
CassetteSRAM XPLR PG-1231, 11-44, 12 speed
ChainSRAM Apex, 12 speed

Brakes

BrakesSRAM Apex D1 hydraulic disc, flat mount

Cockpit & Contact Points

HeadsetBontrager Headset Expander Plug and Top Cap
HandlebarXS: Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width / S: Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width / M, ML: Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width / L, XL: Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
StemXS: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length / S: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length / M: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length / ML, L: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length / XL: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
SaddleVerse Short Comp, steel rails, 145mm width
SeatpostBontrager alloy, 27.2mm, 12mm offset, 330mm length

Wheels & Tires

Hubs(F) Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle / (R) Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
RimsBontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve
Front TireBontrager Kwaremont Pro TLR, tubeless ready, folding bead, Race Dual-Compound, 120 tpi, 700x32mm
Rear TireBontrager Kwaremont Pro TLR, tubeless ready, folding bead, Race Dual-Compound, 120 tpi, 700x32mm
Wheel Size700c

Geometry

6 sizes · 14 measurements

Frame measurements by size.

All geometry measurements6 sizes · 14 measurements
MeasurementXSSMMLLXL
Seat tube444 mm476 mm500 mm533 mm553 mm593 mm
Effective top tube522 mm532 mm543 mm555 mm564 mm577 mm
Head tube106 mm139 mm159 mm180 mm202 mm236 mm
Head-tube angle71.3°71.1°71.5°71.9°72°72.1°
Seat-tube angle73.5°73.7°73.5°73.3°73.3°73.3°
Chainstay / rear center430 mm430 mm430 mm430 mm430 mm430 mm
Wheelbase997 mm1012 mm1018 mm1020 mm1029 mm1043 mm
Bottom-bracket drop80 mm80 mm80 mm78 mm78 mm75 mm
Reach368 mm371 mm374 mm377 mm380 mm384 mm
Stack524 mm555 mm575 mm596 mm618 mm648 mm
Standover height721 mm753 mm775 mm805 mm826 mm863 mm
Fork offset / rake53 mm53 mm53 mm48 mm48 mm48 mm
Trail64 mm66 mm63 mm66 mm65 mm64 mm
Wheel size700c700c700c700c700c700c

Dimensions as recorded.

Gearing

Original gearing is incomplete. Enter your setup to calculate ratios and cadence speeds.

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Cassette · Original
SRAM XPLR PG-1231

11-44, 12 speed

Retailer offers
Front tire · Original
Bontrager Kwaremont Pro TLR

tubeless ready, folding bead, Race Dual-Compound, 120 tpi, 700x32mm

Retailer offers
Chain · Original
SRAM Apex

12 speed

More parts (5)Fewer parts
Rear derailleur · Original
SRAM Apex XPLR

44T max cog

Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Shifters · Original
SRAM Apex

12 speed

Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Seatpost · Original
Bontrager alloy

27.2mm, 12mm offset, 330mm length

Headset · Original
Bontrager Headset Expander Plug and Top Cap
Rims · Original
Bontrager Paradigm 23

Tubeless Ready, 24-hole, 23mm width, Presta valve

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Bontrager Kwaremont Pro TLR, tubeless ready, folding bead, Race Dual-Compound, 120 tpi, 700x32mm
Rear tire
Bontrager Kwaremont Pro TLR, tubeless ready, folding bead, Race Dual-Compound, 120 tpi, 700x32mm
Drivetrain
12-speed
Seatpost diameter
27.2 mm
Equipment inspection checks 15 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 15 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: 300 Series Alpha Aluminum, TQ drive system, hidden fender mounts, rack mounts, integrated frame bag mounts, internal cable routing, flat mount disc, integrated chainkeeper, UDH, 142x12mm chamfered thru axle · Fork: Domane+ carbon, tapered carbon steerer, fender mounts, flat mount disc, 12x100mm thru axle · Carbon fiber

Archived: Shifters: SRAM Apex, 12 speed · Rear derailleur: SRAM Apex XPLR, 44T max cog · Crankset: XS, S: Praxis Alloy, 165mm length / M, ML: Praxis Alloy, 170mm length / L, XL: Praxis Alloy, 172.5mm length · Cassette: SRAM XPLR PG-1231, 11-44, 12 speed · Chain: SRAM Apex, 12 speed

Archived: Brakes: SRAM Apex D1 hydraulic disc, flat mount

Archived: Wheel size: 700c · Rims: Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve · Hubs: (F) Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle / (R) Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle · Front tire: Bontrager Kwaremont Pro TLR, tubeless ready, folding bead, Race Dual-Compound, 120 tpi, 700x32mm · Rear tire: Bontrager Kwaremont Pro TLR, tubeless ready, folding bead, Race Dual-Compound, 120 tpi, 700x32mm

Controls and contact points

Archived: Headset: Bontrager Headset Expander Plug and Top Cap · Seatpost: Bontrager alloy, 27.2mm, 12mm offset, 330mm length · Saddle: Verse Short Comp, steel rails, 145mm width

Archived: Trek Domane+ ALR 5 · electric-assist identification
