Shimano Ultegra CS-R8101 12-Speed Cassette Silver, 11-34T, 12-Speed
Specification match
Velopedia Bicycle Archive
Original specifications: 700c wheels · geometry for 7 published sizes.
Planning to sell? Draft your listing
At a glance
Archive #900000647| Frame Construction | 800 Series OCLV Carbon, TQ drive system, tapered head tube, rear IsoSpeed, internal routing, flat mount disc, fender mounts, 142x12mm thru axle |
|---|---|
| Frame Material | Carbon fiber |
| Fork | Domane+ carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
| Fork Material | Carbon fiber |
| Shifters | Shimano Ultegra R8170 Di2, 12 speed |
|---|---|
| Front Derailleur | Shimano Ultegra R8150 Di2, braze-on, down swing |
| Rear Derailleur | Shimano Ultegra R8150 Di2, 34T max cog |
| Crankset | 50, 52: Praxis Carbon, 165mm length / 54, 56: Praxis Carbon, 170mm length / 58, 60, 62: Praxis Carbon, 172.5mm length |
| Cassette | Shimano Ultegra R8101, 11-34, 12 speed |
| Chain | Shimano Ultegra/XT M8100 |
| Brakes | Shimano Ultegra hydraulic disc, flat mount |
|---|
| Handlebar | 50, 52: Bontrager Pro IsoCore VR-SF, 40cm / 54, 56: Bontrager Pro IsoCore VR-SF, 42cm / 58, 60, 62: Bontrager Pro IsoCore VR-SF, 44cm |
|---|---|
| Stem | 50: Trek RCS Pro, -7 degree, 80mm length / 52, 54: Trek RCS Pro, -7 degree, 90mm length / 56, 58: Trek RCS Pro, -7 degree, 100mm length / 60, 62: Trek RCS Pro, -7 degree, 110mm length |
| Saddle | Verse Short Pro, carbon rails, 145mm width |
| Seatpost | 50, 52, 54, 56: KVF aero carbon seatpost, 20mm offset, 280mm length / 58, 60, 62: KVF aero carbon seatpost, 20mm offset, 320mm length |
| Wheels | (F) Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle / (R) Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle |
|---|---|
| Front Tire | Bontrager Kwaremont RSL TLR, tubeless ready, folding bead, Race Dual-Compound, 320 tpi, 700x32mm |
| Rear Tire | Bontrager Kwaremont RSL TLR, tubeless ready, folding bead, Race Dual-Compound, 320 tpi, 700x32mm |
| Wheel Size | 700c |
No specifications match. Try a component name or clear your search.
Frame measurements by size.
Frame diagram
Select an available measurement to locate it on the frame.
| Measurement | 50 cm | 52 cm | 54 cm | 56 cm | 58 cm | 60 cm | 62 cm |
|---|---|---|---|---|---|---|---|
| Seat tube | 450 mm | 475 mm | 500 mm | 525 mm | 548 mm | 567 mm | 586 mm |
| Effective top tube | 519 mm | 530 mm | 542 mm | 554 mm | 567 mm | 579 mm | 593 mm |
| Head tube | 130 mm | 145 mm | 160 mm | 175 mm | 195 mm | 220 mm | 245 mm |
| Head-tube angle | 71.1° | 71.3° | 71.3° | 71.9° | 72° | 72.1° | 72.1° |
| Seat-tube angle | 74.6° | 74.2° | 73.7° | 73.3° | 73° | 72.8° | 72.5° |
| Chainstay / rear center | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1007 mm | 1013 mm | 1021 mm | 1018 mm | 1027 mm | 1037 mm | 1047 mm |
| Bottom-bracket drop | 80 mm | 80 mm | 80 mm | 78 mm | 78 mm | 75 mm | 75 mm |
| Reach | 368 mm | 371 mm | 374 mm | 377 mm | 380 mm | 383 mm | 386 mm |
| Stack | 546 mm | 561 mm | 575 mm | 591 mm | 611 mm | 632 mm | 656 mm |
| Standover height | 728 mm | 747 mm | 766 mm | 788 mm | 808 mm | 829 mm | 847 mm |
| Fork offset / rake | 53 mm | 53 mm | 53 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 63 mm | 62 mm | 62 mm | 63 mm | 63 mm | 62 mm | 62 mm |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
Dimensions as recorded.
Original gearing is incomplete. Enter your setup to calculate ratios and cadence speeds.
Your changes apply to this calculation. The archived build stays unchanged.
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
11-34, 12 speed

Specification match
tubeless ready, folding bead, Race Dual-Compound, 320 tpi, 700x32mm

700x32c
Replacement option
braze-on, down swing

Model match
34T max cog
Based on the original build. Check fit and installed parts before ordering.
Archived specifications for reference. Check the fitted parts before ordering.
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Archived: Frame: 800 Series OCLV Carbon, TQ drive system, tapered head tube, rear IsoSpeed, internal routing, flat mount disc, fender mounts, 142x12mm thru axle · Fork: Domane+ carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle · Carbon fiber
Archived: Shifters: Shimano Ultegra R8170 Di2, 12 speed · Front derailleur: Shimano Ultegra R8150 Di2, braze-on, down swing · Rear derailleur: Shimano Ultegra R8150 Di2, 34T max cog · Crankset: 50, 52: Praxis Carbon, 165mm length / 54, 56: Praxis Carbon, 170mm length / 58, 60, 62: Praxis Carbon, 172.5mm length · Cassette: Shimano Ultegra R8101, 11-34, 12 speed · Chain: Shimano Ultegra/XT M8100
Archived: Brakes: Shimano Ultegra hydraulic disc, flat mount
Archived: Wheel size: 700c · Wheels: (F) Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle / (R) Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle · Front tire: Bontrager Kwaremont RSL TLR, tubeless ready, folding bead, Race Dual-Compound, 320 tpi, 700x32mm · Rear tire: Bontrager Kwaremont RSL TLR, tubeless ready, folding bead, Race Dual-Compound, 320 tpi, 700x32mm
Archived: Handlebar: 50, 52: Bontrager Pro IsoCore VR-SF, 40cm / 54, 56: Bontrager Pro IsoCore VR-SF, 42cm / 58, 60, 62: Bontrager Pro IsoCore VR-SF, 44cm · Seatpost: 50, 52, 54, 56: KVF aero carbon seatpost, 20mm offset, 280mm length / 58, 60, 62: KVF aero carbon seatpost, 20mm offset, 320mm length · Saddle: Verse Short Pro, carbon rails, 145mm width

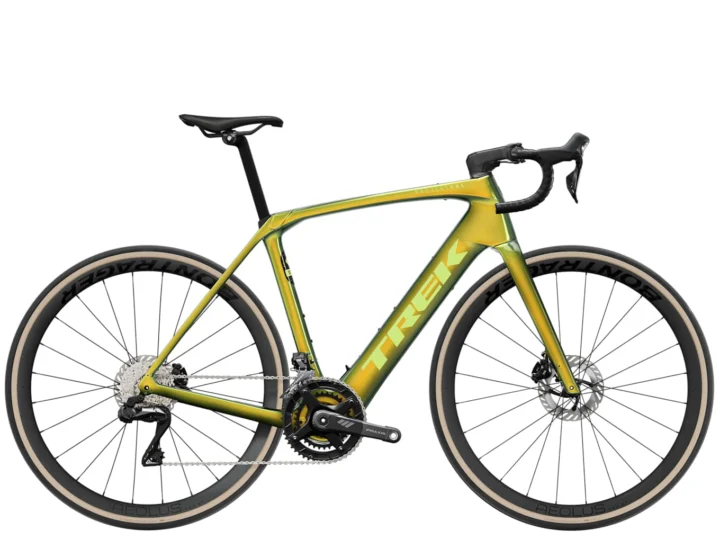

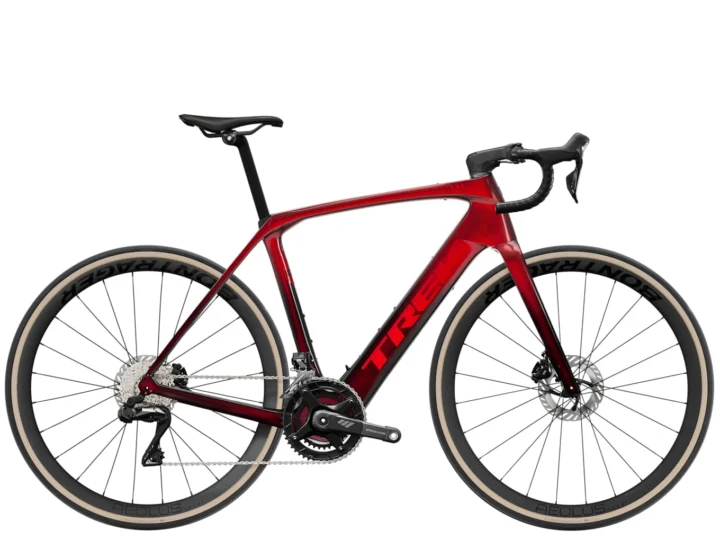

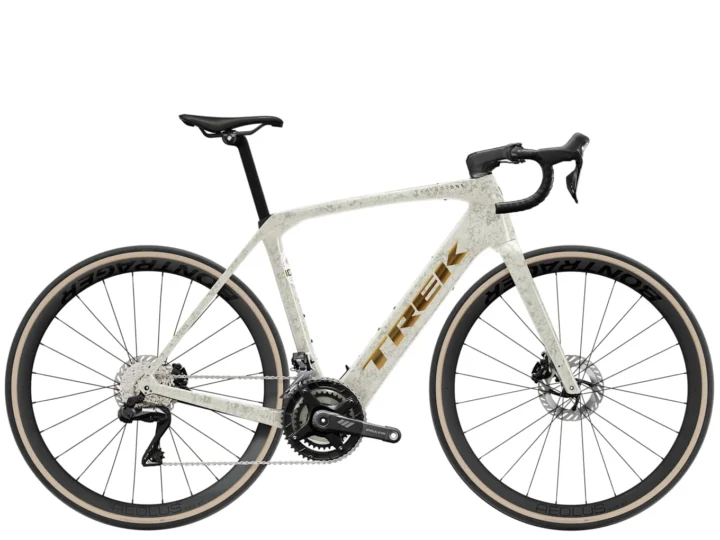

Archived: Trek Domane+ SLR 7 · electric-assist identification
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
No recent price sample is available for this bike. Check eBay for matching listings.
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
