Velopedia Bicycle Archive
2016 Trek Farley 7
Fat Bike bicycle from the Velopedia specification archive.
- Original MSRP
- $2,399.99
- Sizes
- 15.5, 17.5, 19.5, 21.5"
- Colors
- Matte Purple Lotus
- Archive ID
- 1156551
Frameset
| Frame Construction | Alpha Platinum Aluminum, E2 tapered head tube, internal derailleur & dropper post routing, PF121, 197mm Stranglehold adjustable thru axle dropouts |
|---|---|
| Frame Material | Aluminum |
Drivetrain
| Component Group | SRAM GX1 |
|---|---|
| Shifters | SRAM GX1, 11 speed |
| Rear Derailleur | SRAM GX1, Type 2 |
| Crankset | Race Face Aeffect, 28T |
| Bottom Bracket | PF121 |
| Rear Cogs | SRAM XG-1150, 10-42, 11 speed |
| Chain | SRAM PC 1130 |
Brakes
| Brakes | Avid DB 3 hydraulic disc |
|---|
Cockpit & Contact Points
| Headset | FSA IS-2, E2, sealed alloy cartridge |
|---|---|
| Handlebar | Bontrager Rhythm Elite, 31.8mm, 15mm rise |
| Stem | Bontrager Elite, 31.8mm, 7 degree, Blendr compatible |
| Saddle | Bontrager Evoke 2, chromoly rails |
| Seatpost | Bontrager alloy, 2-bolt head, 31.6mm, 8mm offset |
Wheels & Tires
| Hubs | Alloy disc |
|---|---|
| Rims | Alloy Fat Rim |
| Front Tire | Bontrager Barbegazi Team Issue, Tubeless Ready, 120tpi, aramid bead, 26x4.7" |
| Wheel Size | 26 |

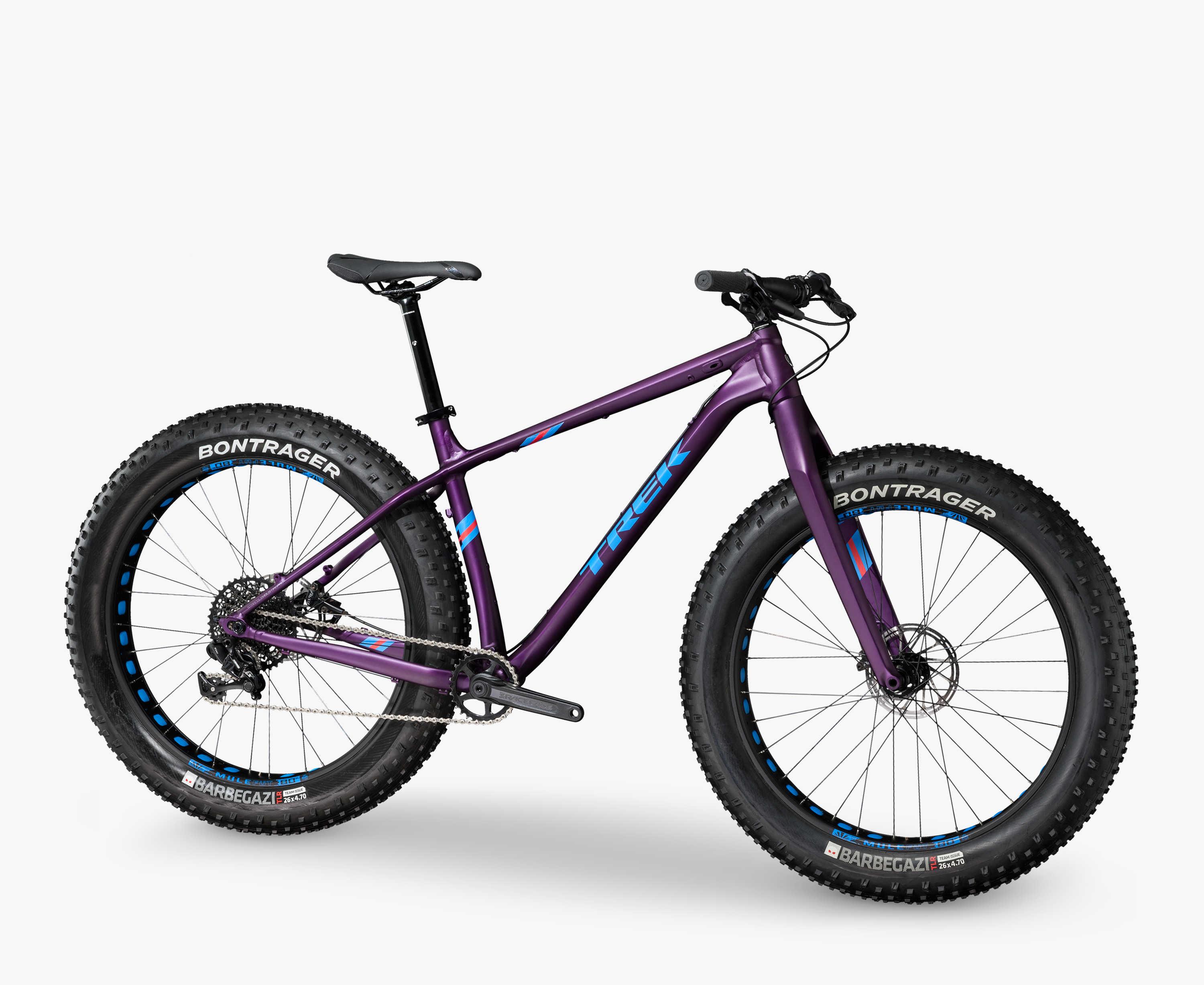

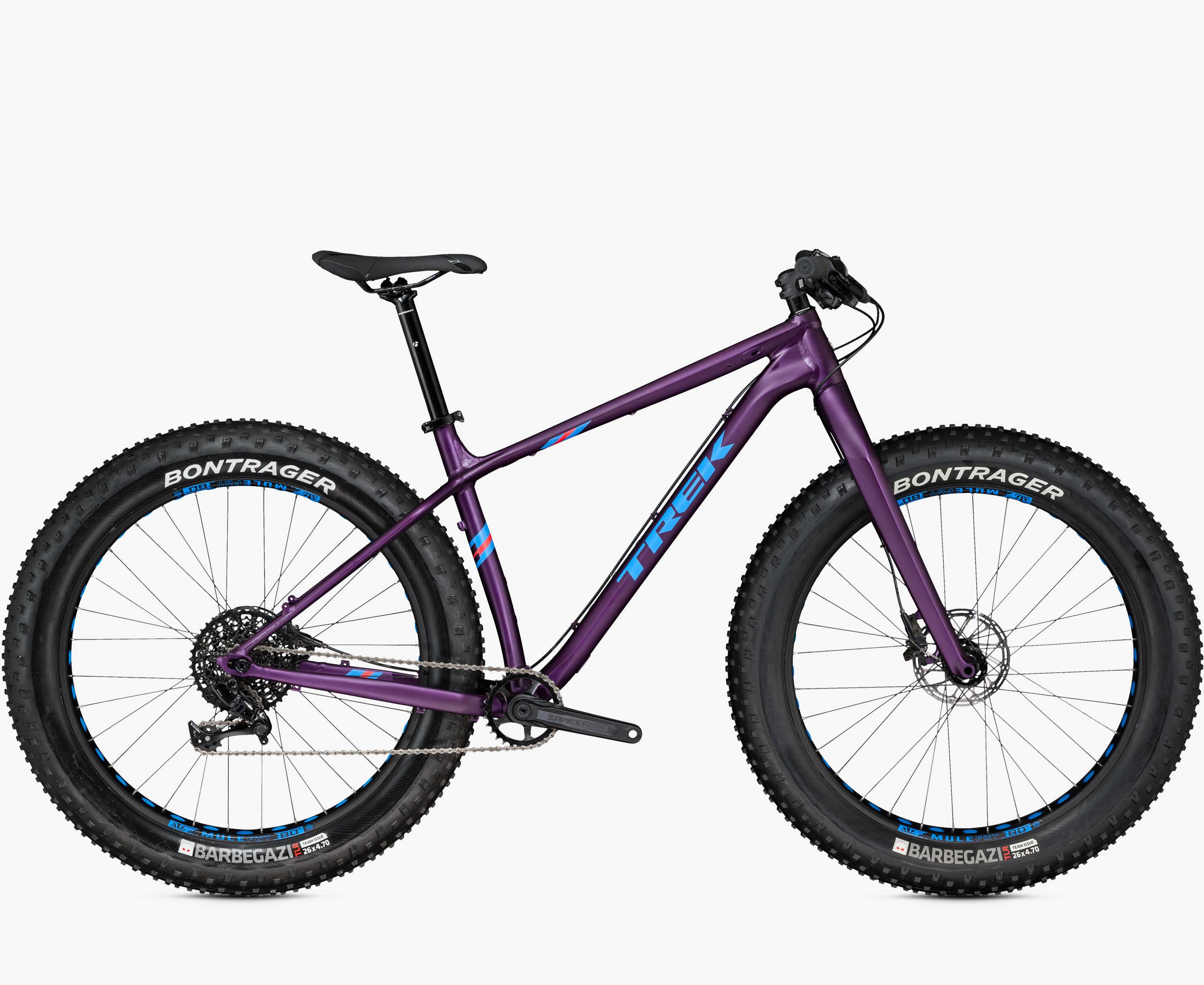

Gallery
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
