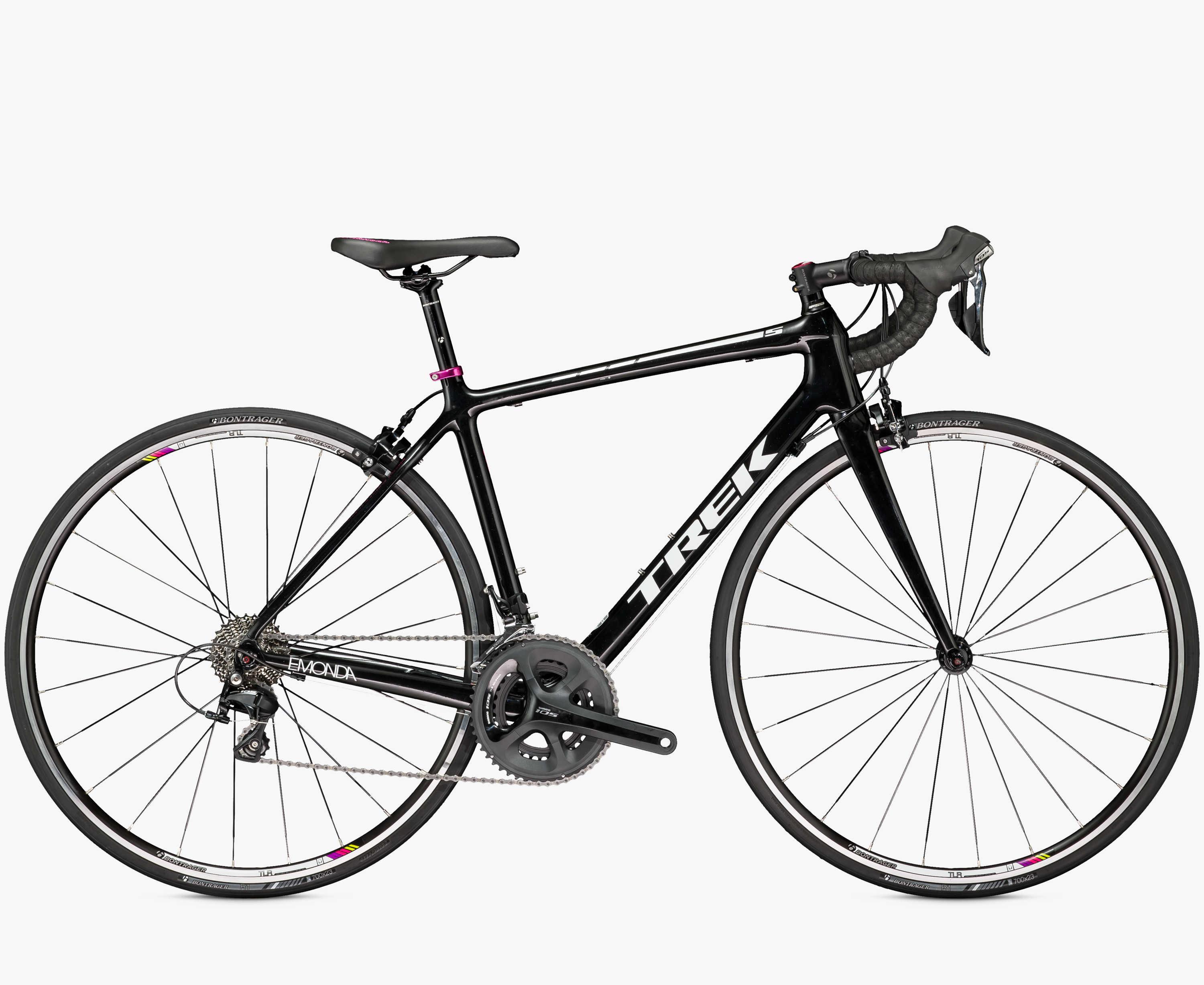

2016 Trek Emonda S 5 WSD
Road Double bicycle from the Velopedia specification archive.
- Original MSRP
- $2,099.99
- Sizes
- 44, 47, 50, 52, 54, 56cm
- Colors
- Black Pearl/Crystal White/Flaming Rose
- Archive ID
- 1183194
Frameset
| Frame Construction | Ultralight 300 Series OCLV Carbon, ride-tuned performance tube optimization, E2, BB86.5, 3S chain keeper, DuoTrap compatible |
|---|---|
| Frame Material | Carbon Fiber |
| Fork Material | Carbon Fiber |
Drivetrain
| Component Group | Shimano 105 |
|---|---|
| Shifters | Shimano 105, 11 speed |
| Front Derailleur | Shimano 105 |
| Rear Derailleur | Shimano 105 |
| Crankset | Shimano 105, 50/34 (compact) |
| Bottom Bracket | BB86.5 |
| Rear Cogs | Shimano 105, 11-28, 11 speed |
| Chain | Shimano 105 |
Brakes
| Brakes | Shimano 105 |
|---|
Cockpit & Contact Points
| Headset | Integrated, cartridge bearings, sealed, 1-1/8" top, 1.5" bottom |
|---|---|
| Handlebar | Bontrager Race, VR-S shallow drop, WSD sized, 31.8mm |
| Stem | Bontrager Race Lite, 31.8mm, 7 degree |
| Saddle | Bontrager Affinity 1 WSD |
| Seatpost | Bontrager Alloy, 2-bolt head, 27.2mm, 8mm offset |
Wheels & Tires
| Hubs | Bontrager alloy hubs |
|---|---|
| Rims | Bontrager TLR |
| Front Tire | Bontrager R1 Hard-Case Lite, 700x23c |
| Wheel Size | 700c |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
