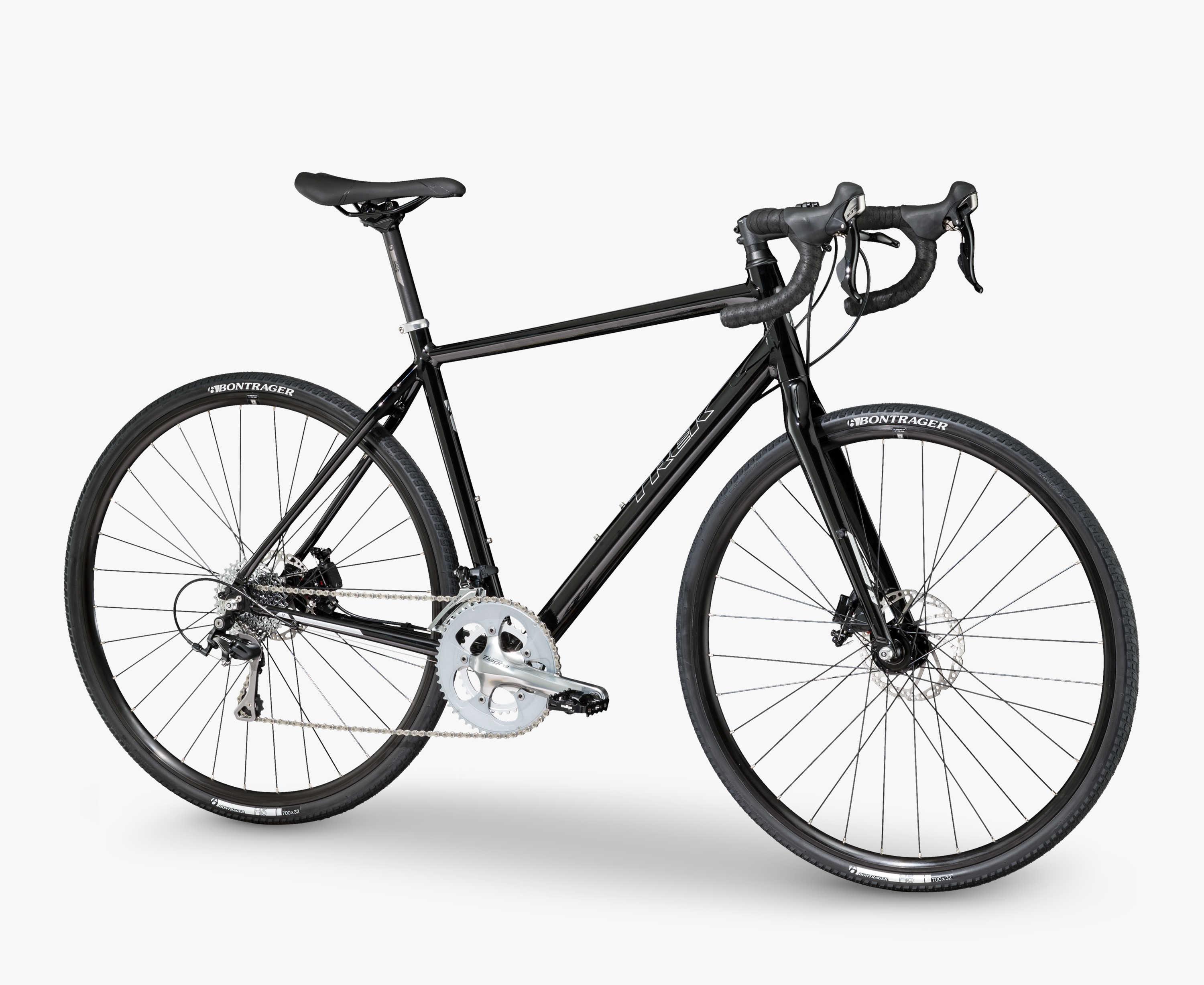

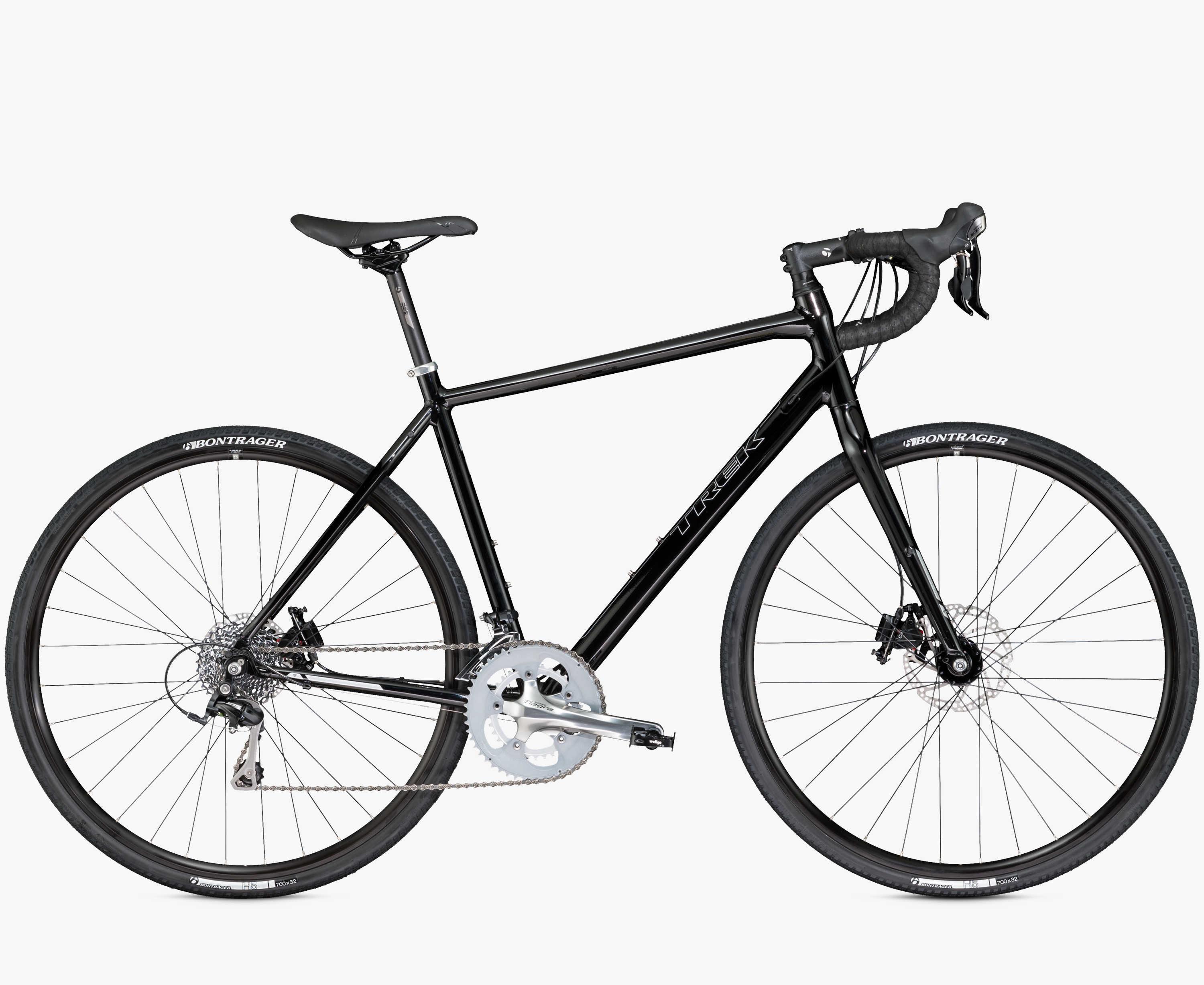

2016 Trek Crossrip LTD

Original specifications: Shimano 105 · 10-speed rear derailleur · 700c wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #1571090
Model year
2016
Category
Gravel & Cyclocross
Original MSRP
$1,679.99
Sizes
49, 52, 54, 56, 58, 61cm
Colors
Gloss Trek Black
In this record
19 specifications · 2 archived images · original MSRP
Model history 2 other years

Browse other years

Compare side by side

Identification clues

2016 archived details

Published colors
Gloss Trek Black
Frame
Aluminum
Original equipment
Shimano mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Sponsored affiliate link
Original buildAluminum · Shimano mix · 700c

Manufacturer catalog

Published sizes and colors

6 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

495254565861cm

Published colors

Gloss Trek Black

Frameset

Frame Construction100 Series Alpha Aluminum w/rack & fender mounts, internal cable routing, inboard disc brake mounts
Frame MaterialAluminum

Drivetrain

Component GroupShimano mix
ShiftersShimano 105, 10 speed
Front DerailleurShimano
Rear DerailleurShimano 105
CranksetShimano Tiagra, 50/34 (compact)
Rear CogsSRAM PG 1050, 11-32, 10 speed
ChainKMC X10

Brakes

BrakesTRP HY/RD cable/hydro disc brakes, Tektro alloy levers

Cockpit & Contact Points

HeadsetCartridge bearings, sealed
HandlebarBontrager Race Lite IsoZone, VR-CF, 31.8mm
StemBontrager Elite, 31.8mm, 7 degree, comes w/computer & light mounts
SaddleBontrager Evoke 1.5
SeatpostBontrager SSR, 2-bolt head, 27.2mm, 12mm offset

Wheels & Tires

HubsAlloy disc
RimsAlloy disc
Front TireBontrager H5 Hard-Case Ultimate, 700x32c
Wheel Size700c

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes50/34T · 11–32T · 10-speed
Lowest1.06:1 Highest4.55:1 Total range428%
Estimated speed At 90 RPM Lowest gear7.7 mph Highest gear32.9 mph

Uses front tire 700C×32; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Front tire · Original
Bontrager H5 Hard-Case Ultimate

700x32c

Retailer offers
Chain · Original
KMC X10
Cassette / rear cogs · Original
SRAM PG 1050

11-32, 10 speed

More parts (7)Fewer parts
Saddle · Original
Bontrager Evoke 1.5
Crankset · Original
Shimano Tiagra

50/34 (compact)

Rear derailleur · Original
Shimano 105 Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Shifters · Original
Shimano 105

10 speed

Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Handlebar · Original
Bontrager Race Lite IsoZone

VR-CF, 31.8mm

Stem · Original
Bontrager Elite

31.8mm, 7 degree, comes w/computer & light mounts

Seatpost · Original
Bontrager SSR

2-bolt head, 27.2mm, 12mm offset

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Bontrager H5 Hard-Case Ultimate, 700x32c
Drivetrain
10-speed
Seatpost diameter
27.2 mm
Equipment inspection checks 9 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 9 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: 100 Series Alpha Aluminum w/rack & fender mounts, internal cable routing, inboard disc brake mounts

Archived: Group: Shimano mix · Shifters: Shimano 105, 10 speed · Front derailleur: Shimano · Rear derailleur: Shimano 105 · Crankset: Shimano Tiagra, 50/34 (compact) · Rear cogs: SRAM PG 1050, 11-32, 10 speed · Chain: KMC X10

Archived: Brakes: TRP HY/RD cable/hydro disc brakes, Tektro alloy levers

Archived: Wheel size: 700c · Rims: Alloy disc · Hubs: Alloy disc · Front tire: Bontrager H5 Hard-Case Ultimate, 700x32c

Controls and contact points

Archived: Headset: Cartridge bearings, sealed · Handlebar: Bontrager Race Lite IsoZone, VR-CF, 31.8mm · Stem: Bontrager Elite, 31.8mm, 7 degree, comes w/computer & light mounts · Seatpost: Bontrager SSR, 2-bolt head, 27.2mm, 12mm offset · Saddle: Bontrager Evoke 1.5
