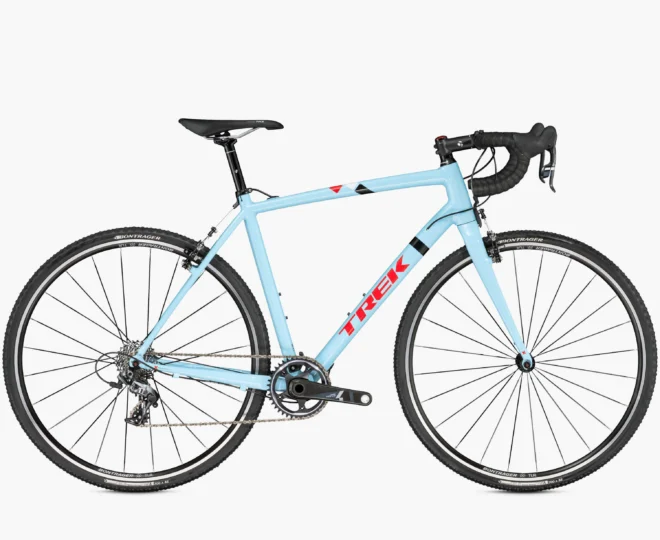

2016 Trek Crockett 7

Original specifications: SRAM CX1 drivetrain · 700c wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #1087105
Model year
2016
Category
Gravel & Cyclocross
Original MSRP
$2,199.99
Sizes
50, 52, 54, 56, 58, 61cm
Colors
Powder Blue
In this record
19 specifications · 2 archived images · original MSRP
Model history 2 other years

Browse other years

Compare side by side

Identification clues

2016 archived details

Published colors
Powder Blue
Frame
Aluminum
Original equipment
SRAM CX1

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildAluminum · SRAM CX1 · 700c

Manufacturer catalog

Published sizes and colors

6 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

505254565861cm

Published colors

Powder Blue

Frameset

Frame Construction200 Series Alpha Aluminum, E2 tapered head tube, BB86.5, internal control routing, 3S chain keeper
Frame MaterialAluminum

Drivetrain

Component GroupSRAM CX1
ShiftersSRAM Force, 11 speed
Rear DerailleurSRAM Force CX1
CranksetSRAM Force CX1, 40T
Bottom BracketBB86.5
Rear CogsSRAM PG 1130, 11-28, 11 speed
ChainSRAM PC 1130

Brakes

BrakesTRP RevoX Alloy

Cockpit & Contact Points

HeadsetFSA Integrated, sealed cartridge bearings, 1-1/8" top, 1.5" bottom
HandlebarBontrager Race, VR-C, 31.8mm
StemBontrager Elite, 31.8mm, 7 degree, w/Blendr computer & light mounts
SaddleBontrager Paradigm R, hollow chromoly rails
SeatpostBontrager alloy, 2-bolt head, 27.2mm, 8mm offset

Wheels & Tires

HubsBontrager
RimsBontrager TLR
Front TireBontrager CX3 Team Issue, aramid bead, 120tpi, 700x32c
Wheel Size700c

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes40T · 11–28T · 11-speed
Lowest1.43:1 Highest3.64:1 Total range255%
Estimated speed At 90 RPM Lowest gear10.3 mph Highest gear26.3 mph

Uses front tire 700C×32; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Chain · Original
SRAM PC 1130
Cassette / rear cogs · Original
SRAM PG 1130

11-28, 11 speed

Front tire · Original
Bontrager CX3 Team Issue

aramid bead, 120tpi, 700x32c

More parts (9)Fewer parts
Saddle · Original
Bontrager Paradigm R

hollow chromoly rails

Crankset · Original
SRAM Force CX1

40T

Rear derailleur · Original
SRAM Force CX1 Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Shifters · Original
SRAM Force

11 speed

Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Handlebar · Original
Bontrager Race

VR-C, 31.8mm

Stem · Original
Bontrager Elite

31.8mm, 7 degree, w/Blendr computer & light mounts

Seatpost · Original
Bontrager alloy

2-bolt head, 27.2mm, 8mm offset

Headset · Original
FSA Integrated

sealed cartridge bearings, 1-1/8" top, 1.5" bottom

Rims · Original
Bontrager TLR

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Bontrager CX3 Team Issue, aramid bead, 120tpi, 700x32c
Drivetrain
11-speed
Seatpost diameter
27.2 mm
Bottom bracket / shell
BB86.5
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: 200 Series Alpha Aluminum, E2 tapered head tube, BB86.5, internal control routing, 3S chain keeper

Archived: Group: SRAM CX1 · Shifters: SRAM Force, 11 speed · Rear derailleur: SRAM Force CX1 · Crankset: SRAM Force CX1, 40T · Bottom bracket: BB86.5 · Rear cogs: SRAM PG 1130, 11-28, 11 speed · Chain: SRAM PC 1130

Archived: Brakes: TRP RevoX Alloy

Archived: Wheel size: 700c · Rims: Bontrager TLR · Hubs: Bontrager · Front tire: Bontrager CX3 Team Issue, aramid bead, 120tpi, 700x32c

Controls and contact points

Archived: Headset: FSA Integrated, sealed cartridge bearings, 1-1/8" top, 1.5" bottom · Handlebar: Bontrager Race, VR-C, 31.8mm · Stem: Bontrager Elite, 31.8mm, 7 degree, w/Blendr computer & light mounts · Seatpost: Bontrager alloy, 2-bolt head, 27.2mm, 8mm offset · Saddle: Bontrager Paradigm R, hollow chromoly rails
