Uses front tire 700C×28; rear size isn’t listed.
Velopedia Bicycle Archive

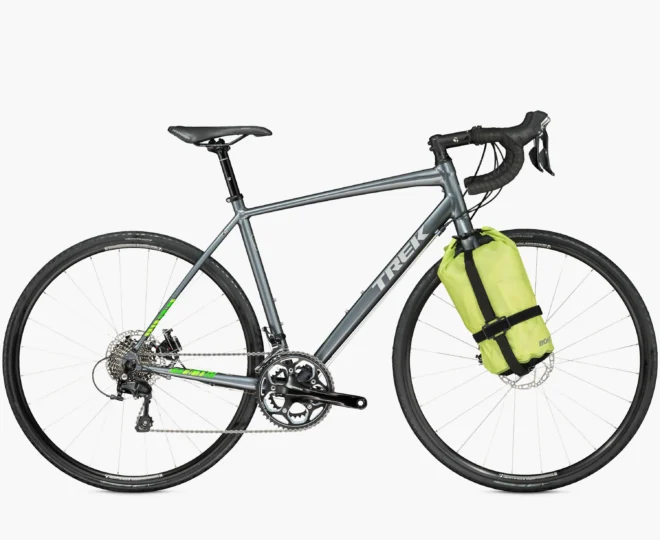

2016 Trek 720 Disc
Original specifications: Shimano 105 · 11-speed rear derailleur · 700c wheels.
Planning to sell? Draft your listing
At a glance
Archive #1008261- Model year
- 2016
- Category
- Touring
- Original MSRP
- $1,889.99
- Sizes
- 49, 52, 54, 56, 58, 61cm
- Colors
- Graphite
- In this record
- 19 specifications · 2 archived images · original MSRP
Model history 1 other year
Browse other years
Compare side by side
Identification clues
2016 archived details
- Published colors
- Graphite
- Frame
- Aluminum
- Original equipment
- Shimano 105 mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildAluminum · Shimano 105 mix · 700c
Frameset
| Frame Construction | 100 Series Alpha Aluminum w/rack & fender mounts, internal cable routing, inboard disc mounts |
|---|---|
| Frame Material | Aluminum |
Drivetrain
| Component Group | Shimano 105 mix |
|---|---|
| Shifters | Shimano 105, 11 speed |
| Front Derailleur | Shimano |
| Rear Derailleur | Shimano 105 |
| Crankset | Shimano RS500, 50/34T |
| Rear Cogs | Shimano 105, 11-32, 11 speed |
| Chain | Shimano HG600 |
Brakes
| Brakes | TRP HY/RD cable/hydro disc brake, 160mm |
|---|
Cockpit & Contact Points
| Headset | Cartridge bearings, sealed |
|---|---|
| Handlebar | Bontrager Race Lite IsoZone, VR-CF, 31.8mm |
| Stem | Bontrager Elite, 31.8mm, 7 degree, comes w/computer & light mounts |
| Saddle | Bontrager Paradigm 1 |
| Seatpost | Bontrager alloy, 2-bolt head, 27.2mm, 8mm offset |
Wheels & Tires
| Hubs | Bontrager |
|---|---|
| Rims | Bontrager TLR, 32-hole |
| Front Tire | Bontrager AW1 Hard-Case Lite, 700x28c |
| Wheel Size | 700c |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
700x28c

Vittoria Zaffiro Pro V Clincher Tire Black, 700x28
700x28c
Replacement option
11-32, 11 speed
More parts (8)Fewer parts
50/34T
11 speed
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.VR-CF, 31.8mm
31.8mm, 7 degree, comes w/computer & light mounts
2-bolt head, 27.2mm, 8mm offset
32-hole
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Bontrager AW1 Hard-Case Lite, 700x28c
- Drivetrain
- 11-speed
- Seatpost diameter
- 27.2 mm
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: 100 Series Alpha Aluminum w/rack & fender mounts, internal cable routing, inboard disc mounts
Drivetrain
Check drivetrain wear →Archived: Group: Shimano 105 mix · Shifters: Shimano 105, 11 speed · Front derailleur: Shimano · Rear derailleur: Shimano 105 · Crankset: Shimano RS500, 50/34T · Rear cogs: Shimano 105, 11-32, 11 speed · Chain: Shimano HG600
Brakes
Inspect the brakes →Archived: Brakes: TRP HY/RD cable/hydro disc brake, 160mm
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c · Rims: Bontrager TLR, 32-hole · Hubs: Bontrager · Front tire: Bontrager AW1 Hard-Case Lite, 700x28c
Controls and contact points
Archived: Headset: Cartridge bearings, sealed · Handlebar: Bontrager Race Lite IsoZone, VR-CF, 31.8mm · Stem: Bontrager Elite, 31.8mm, 7 degree, comes w/computer & light mounts · Seatpost: Bontrager alloy, 2-bolt head, 27.2mm, 8mm offset · Saddle: Bontrager Paradigm 1
