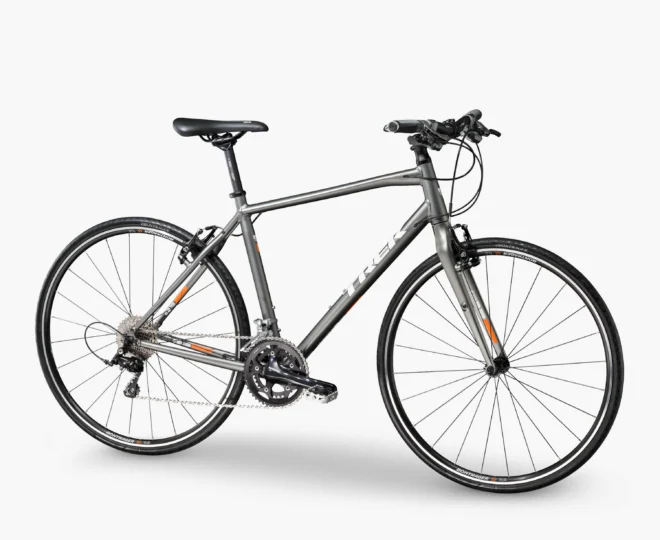

2016 Trek 7.5 FX

Original specifications: Shimano mix drivetrain · 700c wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #1193055
Model year
2016
Category
City & Commuter
Original MSRP
$1,099.99
Sizes
15, 17.5, 20, 22.5"
Colors
Matte Trek Charcoal
In this record
18 specifications · 2 archived images · original MSRP
Model history 10 other years

Browse other years

Compare side by side

Identification clues

2016 archived details

Published colors
Matte Trek Charcoal
Frame
Aluminum
Original equipment
Shimano mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Sponsored affiliate link
Original buildAluminum · Shimano mix · 700c

Manufacturer catalog

Published sizes and colors

4 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

1517.52022.5"

Published colors

Matte Trek Charcoal

Frameset

Frame ConstructionFX Alpha Gold Aluminum, DuoTrap S compatible, rack & fender mounts
Frame MaterialAluminum

Drivetrain

Component GroupShimano mix
ShiftersShimano Tiagra, 10 speed
Front DerailleurShimano
Rear DerailleurShimano RD-R350
CranksetShimano R460, 48/34
Rear CogsShimano HG62, 11-34, 10 speed
ChainKMC X10

Brakes

BrakesTektro alloy linear-pull brakes, Tektro adjustable-reach alloy levers

Cockpit & Contact Points

HeadsetVP Slimstak, sealed semi-cartridge bearings
HandlebarBontrager Satellite Plus IsoZone, 31.8mm, 15mm rise
StemBontrager Blendr Elite, w/computer & light mounts, 31.8mm, 7 degree
SaddleBontrager H1
SeatpostBontrager Nebula, 27.2mm, 20mm offset

Wheels & Tires

RimsBontrager TLR, 32-hole
Front TireBontrager AW1 Hard-Case Lite, 700x28c
Wheel Size700c

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes48/34T · 11–34T · 10-speed
Lowest1.00:1 Highest4.36:1 Total range436%
Estimated speed At 90 RPM Lowest gear7.2 mph Highest gear31.2 mph

Uses front tire 700C×28; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Front tire · Original
Bontrager AW1 Hard-Case Lite

700x28c

Retailer offers
Seatpost · Original
Bontrager Nebula

27.2mm, 20mm offset

Retailer offers
Chain · Original
KMC X10
More parts (9)Fewer parts
Cassette / rear cogs · Original
Shimano HG62

11-34, 10 speed

Brake pads · Original
Tektro alloy linear-pull brakes

Tektro adjustable-reach alloy levers

Saddle · Original
Bontrager H1
Crankset · Original
Shimano R460

48/34

Rear derailleur · Original
Shimano RD-R350
Shifters · Original
Shimano Tiagra

10 speed

Handlebar · Original
Bontrager Satellite Plus IsoZone

31.8mm, 15mm rise

Stem · Original
Bontrager Blendr Elite

w/computer & light mounts, 31.8mm, 7 degree

Rims · Original
Bontrager TLR

32-hole

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Bontrager AW1 Hard-Case Lite, 700x28c
Drivetrain
10-speed
Seatpost diameter
27.2 mm
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: FX Alpha Gold Aluminum, DuoTrap S compatible, rack & fender mounts

Archived: Group: Shimano mix · Shifters: Shimano Tiagra, 10 speed · Front derailleur: Shimano · Rear derailleur: Shimano RD-R350 · Crankset: Shimano R460, 48/34 · Rear cogs: Shimano HG62, 11-34, 10 speed · Chain: KMC X10

Archived: Brakes: Tektro alloy linear-pull brakes, Tektro adjustable-reach alloy levers

Archived: Wheel size: 700c · Rims: Bontrager TLR, 32-hole · Front tire: Bontrager AW1 Hard-Case Lite, 700x28c

Controls and contact points

Archived: Headset: VP Slimstak, sealed semi-cartridge bearings · Handlebar: Bontrager Satellite Plus IsoZone, 31.8mm, 15mm rise · Stem: Bontrager Blendr Elite, w/computer & light mounts, 31.8mm, 7 degree · Seatpost: Bontrager Nebula, 27.2mm, 20mm offset · Saddle: Bontrager H1
