Velopedia Bicycle Archive

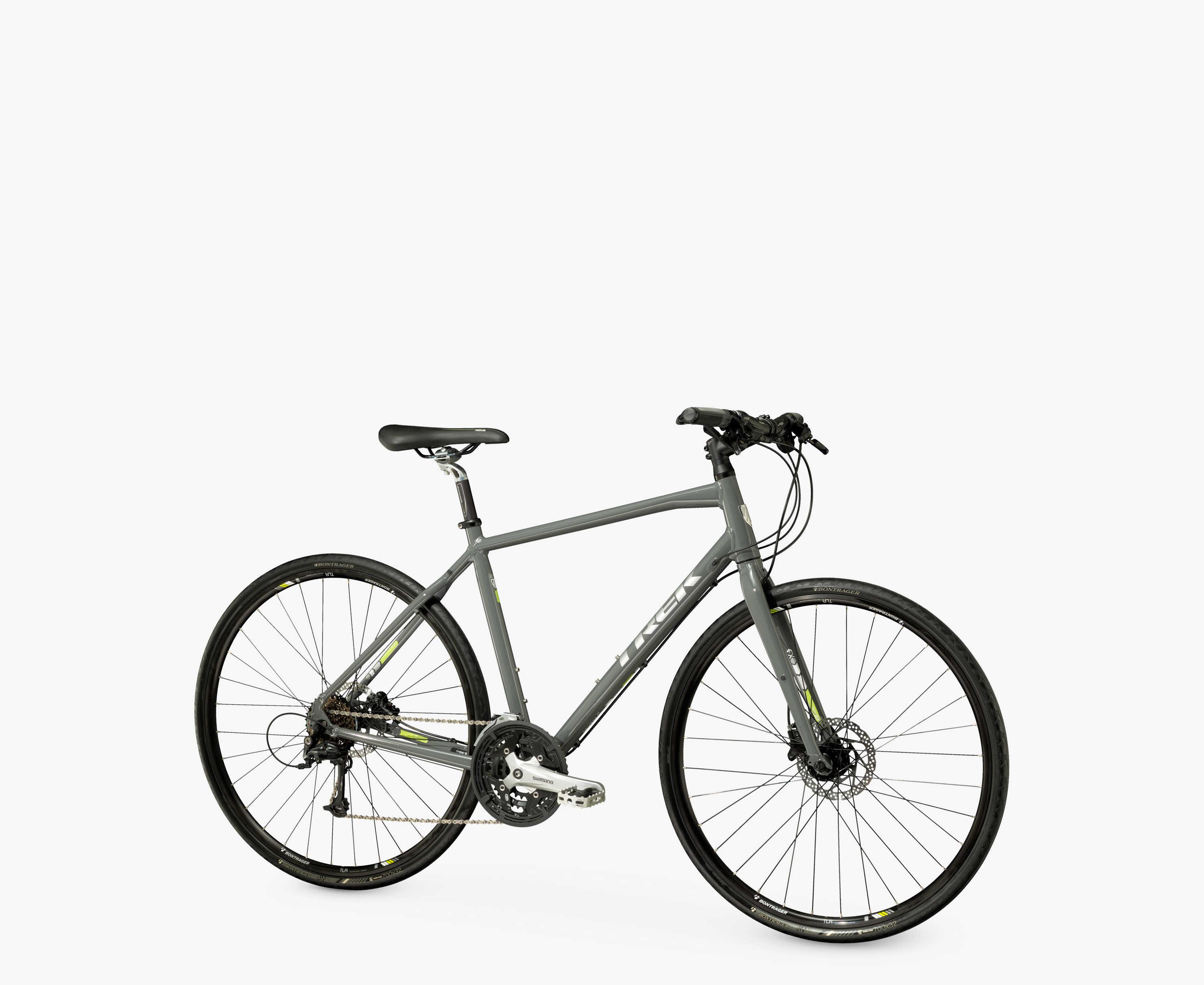

2016 Trek 7.4 FX Disc
City/Commuter bicycle from the Velopedia specification archive.
- Original MSRP
- $879.99
- Sizes
- 15, 17.5, 20, 22.5, 25"
- Colors
- Paramount Grey/Volt Green
- Archive ID
- 1385812
Current market
Checking current listings…Frameset
| Frame Construction | FX Alpha Gold Aluminum, DuoTrap S compatible, rack and fender mounts |
|---|---|
| Frame Material | Aluminum |
Drivetrain
| Component Group | Shimano mix |
|---|---|
| Shifters | Shimano Acera M390, 9 speed |
| Front Derailleur | Shimano |
| Rear Derailleur | Shimano Deore |
| Crankset | Shimano Acera M391, 48/36/26 w/chainguard |
| Rear Cogs | Shimano HG20 11-32, 9 speed |
| Chain | KMC X9 |
Brakes
| Brakes | Shimano M395 disc brake |
|---|
Cockpit & Contact Points
| Headset | VP, semi-cartridge bearings, sealed |
|---|---|
| Handlebar | Bontrager Satellite Plus IsoZone, 31.8mm, 15mm rise |
| Stem | Bontrager Elite Blendr, w/computer & light mounts, 31.8mm, 7 degree |
| Saddle | Bontrager H1 |
| Seatpost | Bontrager Nebula, 27.2mm |
Wheels & Tires
| Hubs | Bontrager |
|---|---|
| Rims | Bontrager TLR disc, 32-hole |
| Front Tire | Bontrager AW1 Hard-Case Lite, 700x32c |
| Wheel Size | 700c |
Gallery
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
