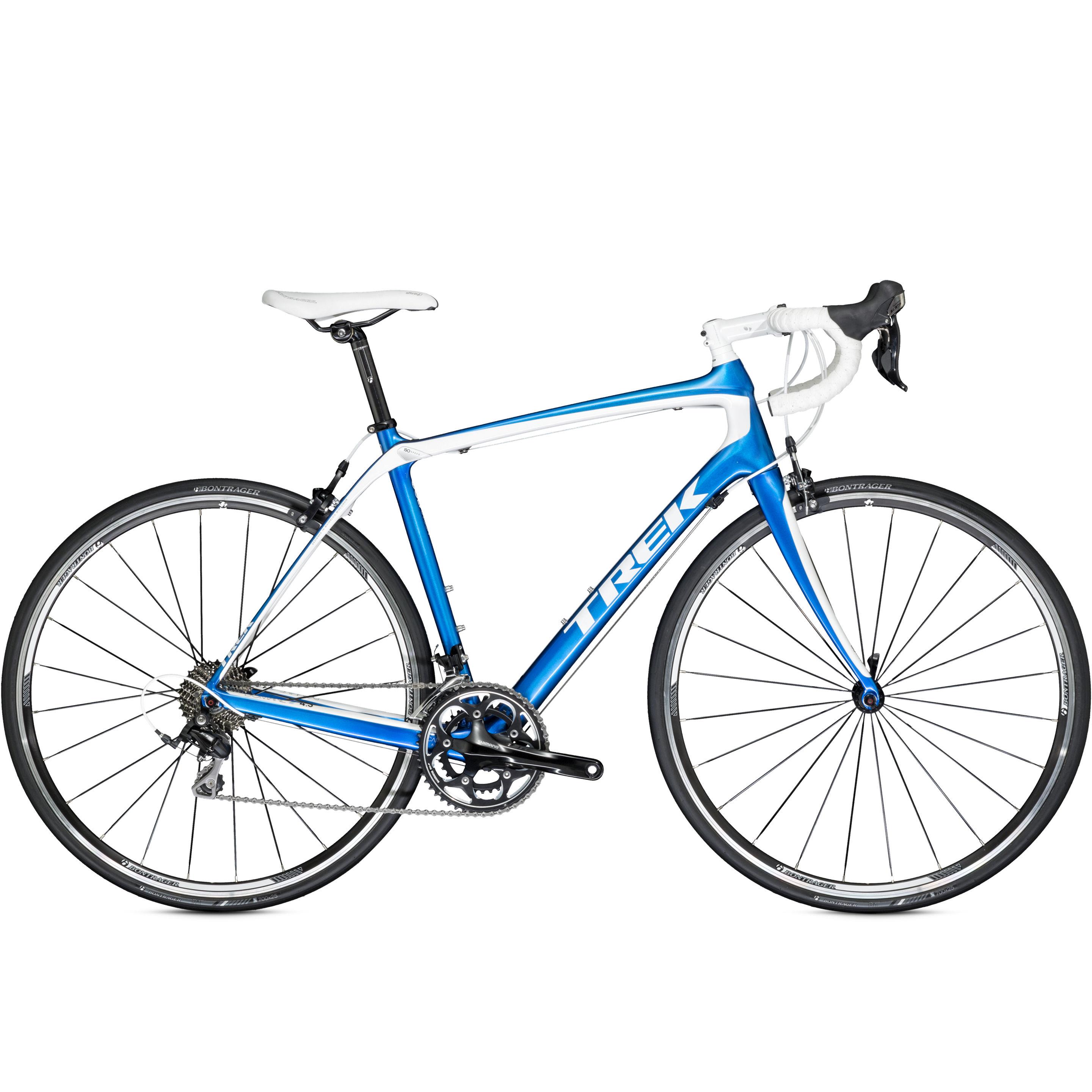

2014 Trek Domane 4.3 T

Original specifications.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #9258627
Model year
2014
Sizes
50 cm, 52 cm, 54 cm, 56 cm, 58 cm, 60 cm, 62 cm
Colors
Liquid Blue/Trek White
In this record
15 specifications · archived image
Sponsored affiliate link
Original build400 Series OCLV Carbon E2

Manufacturer catalog

Published sizes and colors

7 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

50 cm52 cm54 cm56 cm58 cm60 cm62 cm

Published colors

Liquid Blue/Trek White

Frameset

Frame Material400 Series OCLV Carbon E2
ForkTrek IsoSpeed carbon, E2

Drivetrain

ShiftersShimano 105 STI, 10 speed
Front DerailleurShimano 105, braze-on
Rear DerailleurShimano 105
CranksetShimano R563 50/39/30t
CassetteShimano Tiagra 12-30, 10 speed

Brakes

BrakesShimano 105

Cockpit & Contact Points

Headset1 1/8" - 1 1/2" Integrated
HandlebarBontrager Race Blade VR-C
StemBontrager Race Lite 31.8mm
SaddleBontrager Affinity 1
SeatpostBontrager Carbon 27.2mm

Wheels & Tires

RimsAlloy
Front TireBontrager R1 Hard-Case Lite

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

All published sizes50/39/30T · 12–30T · 10-speed
Lowest1.00:1 Highest4.17:1 Total range417%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed
How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Seatpost · Original
Bontrager Carbon 27.2mm
Retailer offers
Cassette · Original
Shimano Tiagra 12-30

10 speed

Saddle · Original
Bontrager Affinity 1
More parts (6)Fewer parts
Crankset · Original
Shimano R563 50/39/30t
Front derailleur · Original
Shimano 105

braze-on

Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Rear derailleur · Original
Shimano 105 Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Shifters · Original
Shimano 105 STI

10 speed

Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Handlebar · Original
Bontrager Race Blade VR-C
Stem · Original
Bontrager Race Lite 31.8mm

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Bontrager R1 Hard-Case Lite
Drivetrain
10-speed
Seatpost diameter
27.2 mm
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: 400 Series OCLV Carbon E2 · Fork: Trek IsoSpeed carbon, E2

Archived: Shifters: Shimano 105 STI, 10 speed · Front derailleur: Shimano 105, braze-on · Rear derailleur: Shimano 105 · Crankset: Shimano R563 50/39/30t · Cassette: Shimano Tiagra 12-30, 10 speed

Archived: Brakes: Shimano 105

Archived: Rims: Alloy · Front tire: Bontrager R1 Hard-Case Lite

Controls and contact points

Archived: Headset: 1 1/8" - 1 1/2" Integrated · Handlebar: Bontrager Race Blade VR-C · Stem: Bontrager Race Lite 31.8mm · Seatpost: Bontrager Carbon 27.2mm · Saddle: Bontrager Affinity 1
