At a glance

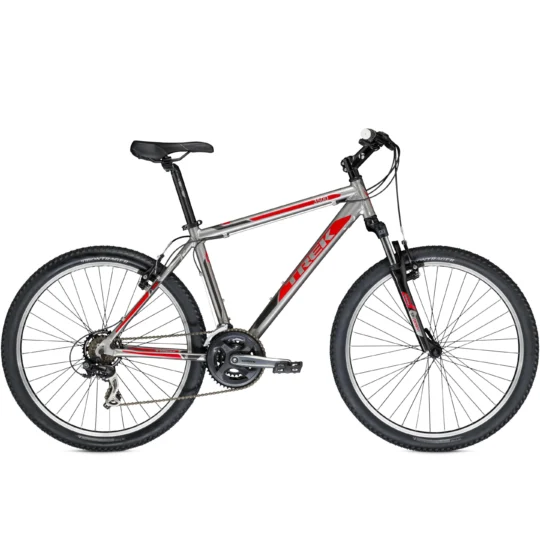

Archive #9258459- Model year
- 2014
- Sizes
- 13 in, 16 in, 18 in, 19.5 in, 21 in
- Colors
- Ti/Viper Red, Trek Black/Catalyst Orange
- In this record
- 16 specifications · 2 archived images
Model history 9 other years
Browse other years
Compare side by side
Identification clues
2014 archived details
- Published colors
- Ti/Viper Red, Trek Black/Catalyst Orange
- Frame
- Alpha Silver Aluminum
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildAlpha Silver Aluminum
Frameset
| Frame Material | Alpha Silver Aluminum |
|---|---|
| Fork | SR Suntour M-3030 75mm |
Drivetrain
| Shifters | Shimano Altus EF51, 7 speed |
|---|---|
| Front Derailleur | Shimano Tourney |
| Rear Derailleur | Shimano Tourney TX35 |
| Crankset | Shimano M131 48/38/28t |
| Cassette | Shimano TZ31 14-34, 7 speed |
| Pedals | Wellgo nylon platform |
Brakes
| Brakes | Alloy Linear Pull |
|---|
Cockpit & Contact Points
| Headset | 1-1/8" threadless |
|---|---|
| Handlebar | Bontrager Riser |
| Stem | Bontrager Forged |
| Saddle | Bontrager SSR |
| Seatpost | Bontrager SSR 31.6mm |
Wheels & Tires
| Rims | Bontrager AT-550 Rims |
|---|---|
| Front Tire | Bontrager LT3, 26x2.0" |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
Speed unavailable: wheel or tire size is missing or unclear.
Add your rear tire size to calculate speedHow it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Race Face Ride XC Seatpost Black, 31.6x375mm
Replacement option
7 speed
26x2.0"
Replacement search: 26x2 bicycle tire Before ordering: Check rim type and tire clearance.More parts (7)Fewer parts
7 speed
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Bontrager LT3, 26x2.0"
- Drivetrain
- 7-speed
- Seatpost diameter
- 31.6 mm
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Alpha Silver Aluminum · Fork: SR Suntour M-3030 75mm
Suspension
Evaluate the suspension →Archived: Fork: SR Suntour M-3030 75mm
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Altus EF51, 7 speed · Front derailleur: Shimano Tourney · Rear derailleur: Shimano Tourney TX35 · Crankset: Shimano M131 48/38/28t · Cassette: Shimano TZ31 14-34, 7 speed
Brakes
Inspect the brakes →Archived: Brakes: Alloy Linear Pull
Wheels and tires
Check wheels and tires →Archived: Rims: Bontrager AT-550 Rims · Front tire: Bontrager LT3, 26x2.0"
Controls and contact points
Archived: Headset: 1-1/8" threadless · Handlebar: Bontrager Riser · Stem: Bontrager Forged · Seatpost: Bontrager SSR 31.6mm · Saddle: Bontrager SSR · Pedals: Wellgo nylon platform
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery2 images
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
