At a glance

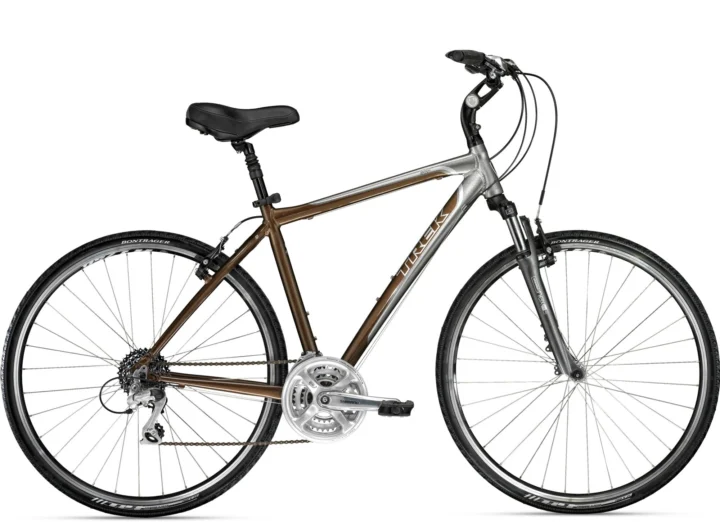

Archive #3068907- Model year
- 2012
- Category
- Hybrid
- Original MSRP
- $569.99
- Sizes
- 15, 17.5, 20, 22.5, 25
- Colors
- Charcoal Metallic/Mocha, Satin Steel Blue/Silver
- In this record
- 16 specifications · 2 archived images · original MSRP
Model history 13 other years
Browse other years
Compare side by side
Identification clues
2012 archived details
- Published colors
- Charcoal Metallic/Mocha, Satin Steel Blue/Silver
- Frame
- Alpha Gold Aluminum
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildAlpha Gold Aluminum
Frameset
| Frame Material | Alpha Gold Aluminum |
|---|---|
| Fork | SR Suntour NEX-4110V2 |
Drivetrain
| Shifters | Shimano EF-51 8spd |
|---|---|
| Front Derailleur | Shimano Altus |
| Rear Derailleur | Shimano Alivio 8spd |
| Crankset | Shimano M171 48/38/28t |
| Cassette | SRAM PG-830 8spd 11-32t |
| Pedals | Dual-density platform |
Brakes
| Brakes | Tektro linear pull |
|---|
Cockpit & Contact Points
| Headset | Slimstak semi-cartridge |
|---|---|
| Handlebar | Bontrager Approved alloy 50mm |
| Stem | Alloy adjustable |
| Saddle | Bontrager Boulevard |
| Seatpost | Alloy w/adjustable suspension |
Wheels & Tires
| Hubs | Alloy hubs Shimano RM30 alloy |
|---|---|
| Front Tire | Bontrager H4 Hard-Case 700x35c |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
Speed unavailable: wheel or tire size is missing or unclear.
Add your rear tire size to calculate speedHow it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Vittoria Randonneur Reflect Tire Black, 700x35
700x35c
Replacement option
More parts (6)Fewer parts
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Bontrager H4 Hard-Case 700x35c
- Drivetrain
- 8-speed
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Alpha Gold Aluminum · Fork: SR Suntour NEX-4110V2
Suspension
Evaluate the suspension →Archived: Fork: SR Suntour NEX-4110V2
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano EF-51 8spd · Front derailleur: Shimano Altus · Rear derailleur: Shimano Alivio 8spd · Crankset: Shimano M171 48/38/28t · Cassette: SRAM PG-830 8spd 11-32t
Brakes
Inspect the brakes →Archived: Brakes: Tektro linear pull
Wheels and tires
Check wheels and tires →Archived: Hubs: Alloy hubs Shimano RM30 alloy · Front tire: Bontrager H4 Hard-Case 700x35c
Controls and contact points
Archived: Headset: Slimstak semi-cartridge · Handlebar: Bontrager Approved alloy 50mm · Stem: Alloy adjustable · Seatpost: Alloy w/adjustable suspension · Saddle: Bontrager Boulevard · Pedals: Dual-density platform
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery2 images
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
