Uses front tire 700C×35; rear size isn’t listed.
Velopedia Bicycle Archive

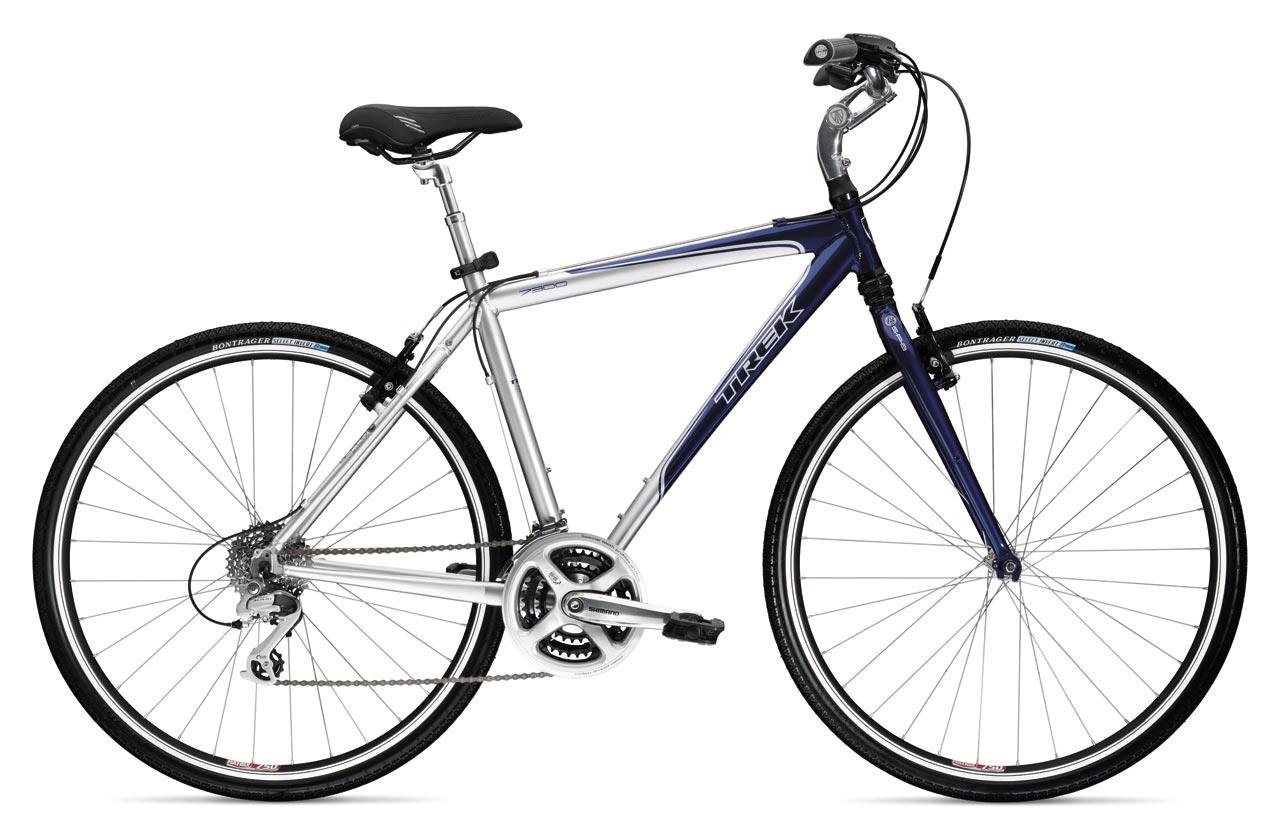

2009 Trek 7300
Original specifications: Shimano Alivio · 9-speed rear derailleur · 700c wheels.
Planning to sell? Draft your listing
At a glance
Archive #17587- Model year
- 2009
- Category
- Hybrid
- Original MSRP
- $639.99
- Sizes
- 15", 17.5", 20", 22.5", 25"
- Colors
- Newport Blue/Bright Silver
- In this record
- 23 specifications · archived image · original MSRP
Model history 13 other years
Browse other years
Compare side by side
Identification clues
2009 archived details
- Published colors
- Newport Blue/Bright Silver
- Frame
- Alpha Black Aluminum
- Original equipment
- Shimano mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildAlpha Black Aluminum · Shimano mix · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Alpha Black Aluminum |
| Fork | Bontrager SPA Integrated Suspension, 35mm travel |
| Fork Material | Alloy, unicrown crown |
Drivetrain
| Component Group | Shimano mix |
|---|---|
| Shifters | Shimano EF-60 |
| Front Derailleur | Shimano C102 |
| Rear Derailleur | Shimano Alivio |
| Crankset | Shimano M191 w/chainguard, 28/38/48 teeth |
| Cassette | SRAM PG-830 |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Pedals | Dual density platform |
Brakes
| Brakes | Tektro Alloy V-brake brakes, Shimano EF-60 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Aheadset Slimstak |
|---|---|
| Handlebar | Bontrager Approved |
| Handlebar Extensions | Not included |
| Stem | Alloy Adjustable |
| Saddle | Bontrager Satellite |
| Seatpost | Alloy Micro-adjust Suspension |
Wheels & Tires
| Hubs | Front: Alloy, Rear: Shimano RM60 |
|---|---|
| Rims | Matrix 750, 32-hole |
| Front Tire | 700 x 35c Bontrager Invert Hardcase |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Vittoria Randonneur Reflect Tire Black, 700x35
700x35c
Replacement option
Shimano EF-60 levers
More parts (4)Fewer parts
28/38/48 teeth
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 35c Bontrager Invert Hardcase
- Drivetrain
- 9-speed
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Bontrager SPA Integrated Suspension, 35mm travel · Alloy, unicrown crown
Suspension
Evaluate the suspension →Archived: Fork: Bontrager SPA Integrated Suspension, 35mm travel
Drivetrain
Check drivetrain wear →Archived: Group: Shimano mix · Shifters: Shimano EF-60 · Front derailleur: Shimano C102 · Rear derailleur: Shimano Alivio · Crankset: Shimano M191 w/chainguard, 28/38/48 teeth · Cassette: SRAM PG-830 · Rear cogs: 9-speed, 11 - 32 teeth
Brakes
Inspect the brakes →Archived: Brakes: Tektro Alloy V-brake brakes, Shimano EF-60 levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Matrix 750, 32-hole · Hubs: Front: Alloy, Rear: Shimano RM60 · Front tire: 700 x 35c Bontrager Invert Hardcase
Controls and contact points
Archived: Headset: 1 1/8" threadless Aheadset Slimstak · Handlebar: Bontrager Approved · Stem: Alloy Adjustable · Seatpost: Alloy Micro-adjust Suspension · Saddle: Bontrager Satellite · Pedals: Dual density platform
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
