Velopedia Bicycle Archive

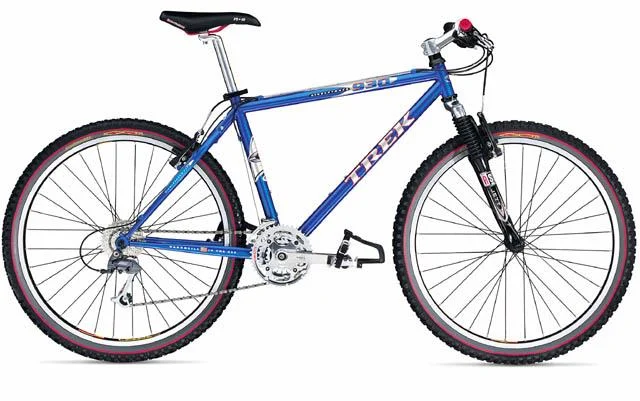

1999 Trek 930

Original specifications: Shimano Deore LX · 8-speed · mechanical rear derailleur · 26" wheels · legacy reference geometry.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #89194
Model year
1999
Category
Mountain
Original MSRP
$649.99
Sizes
13", 16.5", 18", 19.5", 21", 22.5"
Colors
Metal Flake Blue, Pearl White
Geometry
Legacy reference
In this record
28 specifications · archived image · original MSRP · geometry
Model history 6 other years

Browse other years

Compare side by side

Identification clues

1999 archived details

Published colors
Metal Flake Blue, Pearl White
Frame
True Temper chromoly, triple-butted
Original equipment
Mountain Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildTrue Temper chromoly, triple-butted · Mountain Mix · 26" wheels

Manufacturer catalog

Published sizes and colors

6 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

13"16.5"18"19.5"21"22.5"

Published colors

Metal Flake BluePearl White

Frameset

Frame ConstructionTIG-welded
Frame MaterialTrue Temper chromoly, triple-butted
ForkRock Shox Jett T2, 2.5" travel
Fork MaterialAluminum/magnesium, triple-clamp crown

Drivetrain

Component GroupMountain Mix
ShiftersShimano STX-RC RapidFire SL
Front DerailleurShimano Alivio, top-pull/bottom bracket mount
Rear DerailleurShimano Deore LX SGS
CranksetShimano Alivio, 22/32/42 teeth
Bottom BracketShimano BB-LP27E, 113mm spindle
BB Shell Width73mm English
Rear Cogs8-speed, 11 - 30 teeth
ChainShimano CN-IG31, 1/2 x 3/32"
PedalsAluminum cage w/clips & straps

Brakes

BrakesLee Chi TX22 brakes, Lee Chi LV77E levers

Cockpit & Contact Points

Headset1 1/8" threadless Aheadset SE-1
HandlebarIcon 6061
Handlebar ExtensionsNot included
StemAlloy Ahead type
SaddleBontrager FS+10 Comp
SeatpostKalloy SP-312, 27.2mm diameter

Wheels & Tires

HubsFront: Bontrager Comp I, Rear: Bontrager Comp II
RimsBontrager Corvair, 28-hole/32-hole
SpokesDT stainless steel, 1.8mm straight gauge
Spoke NipplesBrass nipples
Front Tire26 x 2.10" Bontrager Jones
Rear Tire26 x 1.90" Bontrager Jones
Wheel Size26" wheels

Geometry

Legacy reference · 6 measurements

Historical measurements. Frame size unknown.

All geometry measurementsLegacy reference · 6 measurements
MeasurementLegacy reference
Top tube580 mm
Head-tube angle71°
Seat-tube angle73°
Chainstay / rear center430 mm
Wheelbase1056 mm
Fork offset / rake38 mm

Frame size not recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes42/32/22T · 11–30T · 8-speed
Lowest0.73:1 Highest3.82:1 Total range521%
Estimated speed At 90 RPM Lowest gear5.1 mph Highest gear26.4 mph

Rear tire: 26×1.9.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Chain · Original
Shimano CN-IG31

1/2 x 3/32"

Front tire · Original
26 x 2.10" Bontrager Jones
More parts (6)Fewer parts
Rear tire · Original
26 x 1.90" Bontrager Jones
Bottom bracket · Original
Shimano BB-LP27E

113mm spindle

Saddle · Original
Bontrager FS+10 Comp
Crankset · Original
Shimano Alivio

22/32/42 teeth

Rear derailleur · Original
Shimano Deore LX SGS
Shifters · Original
Shimano STX-RC RapidFire SL

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Front: 26 x 2.10" Bontrager Jones, Rear: 26 x 1.90" Bontrager Jones
Drivetrain
8-speed
Seatpost diameter
27.2 mm
Bottom bracket / shell
Shimano BB-LP27E, 113mm spindle · 73mm English
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 11 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: Rock Shox Jett T2, 2.5" travel · Aluminum/magnesium, triple-clamp crown

Archived: Fork: Rock Shox Jett T2, 2.5" travel

Archived: Group: Mountain Mix · Shifters: Shimano STX-RC RapidFire SL · Front derailleur: Shimano Alivio, top-pull/bottom bracket mount · Rear derailleur: Shimano Deore LX SGS · Crankset: Shimano Alivio, 22/32/42 teeth · Bottom bracket: Shimano BB-LP27E, 113mm spindle · Rear cogs: 8-speed, 11 - 30 teeth · Chain: Shimano CN-IG31, 1/2 x 3/32"

Archived: Brakes: Lee Chi TX22 brakes, Lee Chi LV77E levers

Archived: Wheel size: 26" wheels · Rims: Bontrager Corvair, 28-hole/32-hole · Hubs: Front: Bontrager Comp I, Rear: Bontrager Comp II · Front tire: Front: 26 x 2.10" Bontrager Jones, Rear: 26 x 1.90" Bontrager Jones

Controls and contact points

Archived: Headset: 1 1/8" threadless Aheadset SE-1 · Handlebar: ICON 6061 · Stem: Alloy Ahead type · Seatpost: Kalloy SP-312, 27.2mm diameter · Saddle: Bontrager FS+10 Comp · Pedals: Aluminum cage w/clips & straps
