Velopedia Bicycle Archive

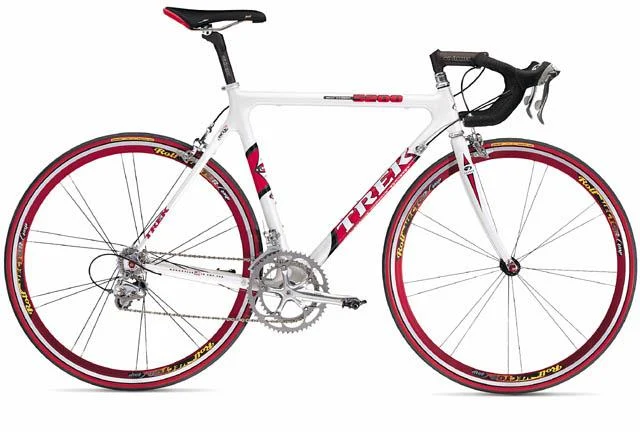

1999 Trek 5200D
Road race & triathlon bicycle from the Velopedia specification archive.
- Original MSRP
- $2,499.99
- Sizes
- 50cm, 52cm, 54cm, 56cm, 58cm, 60cm, 62cm
- Colors
- Pearl White
- Weight
- 20
- Archive ID
- 81476
Current market
Checking current listings…Frameset
| Frame Construction | Bonded |
|---|---|
| Frame Material | OCLV carbon fiber |
| Fork | ICON Air Rail |
| Fork Material | Carbon fiber composite, unicrown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Shimano Ultegra |
|---|---|
| Shifters | Shimano Ultegra STI Dual Control |
| Front Derailleur | Shimano Ultegra, bottom-pull/braze-on |
| Rear Derailleur | Shimano Ultegra |
| Crankset | Shimano Ultegra, 39/53 teeth |
| Bottom Bracket | Shimano BB-6500, 109.5mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 9-speed, 12 - 25 teeth |
| Chain | Shimano CN-HG92, 1/2 x 3/32" |
| Pedals | ICON clipless |
Brakes
| Brakes | Shimano Ultegra Dual Pivot brakes, Shimano Ultegra STI levers |
|---|
Cockpit & Contact Points
| Headset | 1" Tange-Seiki Vantage |
|---|---|
| Handlebar | ICON |
| Handlebar Extensions | Not included |
| Stem | ICON |
| Saddle | Fi'zi:k Pave, titanium rails |
| Seatpost | ICON OZ, 27.2mm diameter |
Wheels & Tires
| Hubs | Rolf |
|---|---|
| Rims | Rolf Vector Comp, 18-hole/20-hole |
| Spokes | DT stainless steel, 2.0mm aero |
| Spoke Nipples | Alloy nipples |
| Front Tire | 700 x 25c Continental Grand Prix 3000 kevlar |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
