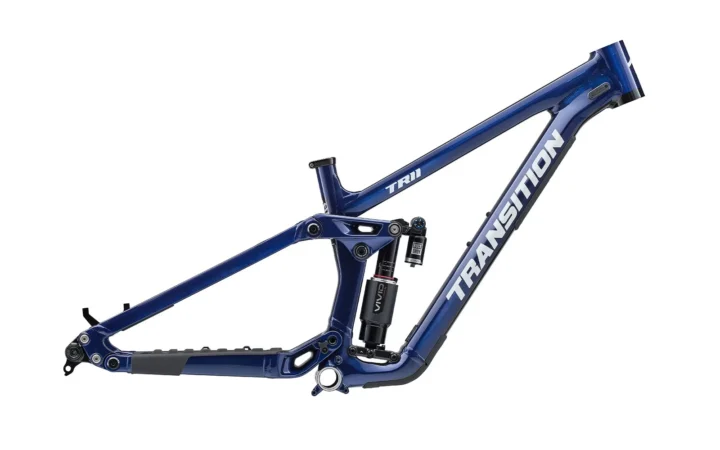

2026 Transition TR11 Alloy Frameset
Original manufacturer specifications including Mixed wheels, 11.9 lbs / 5.38 kg (Size MD) published weight, geometry for 8 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Mountain
- Original MSRP
- $2,599.00
- Sizes
- S, M, L, XL
- Colors
- Moonstone, Nightshade
- Weight
- 11.9 lbs / 5.38 kg (Size MD)
- Geometry
- 8 manufacturer sizes · Geometry context
- Record coverage
- 6 preserved details · 2 archived images · original MSRP · preserved geometry
- Archive ID
- 900001581
Frameset
| Frame Construction | TR11 Alloy 211mm |
|---|---|
| Frame Material | Aluminum |
| Rear Shock | RockShox Vivid Ultimate DH(225x75mm) |
Cockpit & Contact Points
| Headset | TR11 Reach Adjust (Included) |
|---|
Wheels & Tires
| Wheel Size | Mixed |
|---|
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | SM · High | SM · Low | MD · High | MD · Low | LG · High | LG · Low | XL · High | XL · Low |
|---|---|---|---|---|---|---|---|---|
| Seat tube | 390 mm | 390 mm | 390 mm | 390 mm | 390 mm | 390 mm | 390 mm | 390 mm |
| Effective top tube | 545 mm | 545 mm | 578 mm | 578 mm | 610 mm | 610 mm | 641 mm | 641 mm |
| Head tube | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Head-tube angle | 63° | 62.6° | 63° | 62.6° | 63° | 62.6° | 63° | 62.6° |
| Chainstay / rear center | 445 mm | 447 mm | 445 mm | 447 mm | 450 mm | 452 mm | 450 mm | 452 mm |
| Wheelbase | 1229 mm | 1229 mm | 1263 mm | 1263 mm | 1303 mm | 1303 mm | 1333 mm | 1333 mm |
| Bottom-bracket drop | 25 mm | 31 mm | 25 mm | 31 mm | 25 mm | 31 mm | 25 mm | 31 mm |
| Reach | 420 mm | 415 mm | 450 mm | 445 mm | 480 mm | 476 mm | 510 mm | 506 mm |
| Stack | 635 mm | 638 mm | 643 mm | 647 mm | 652 mm | 656 mm | 652 mm | 656 mm |
Geometry source: Transition first-party SBG geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
The manufacturer publishes more than one geometry configuration. Velopedia analyzes each labeled state separately while treating them as one chassis in archive comparisons.
SM geometry
Configuration
Archive context: Its stack of 635 mm sits toward the taller end. The head angle of 63° sits toward the slacker end. Its wheelbase of 1229 mm sits toward the longer end.
Compared with 180 distinct mountain geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Archive context: The head angle of 62.6° sits toward the slacker end. Its stack of 638 mm sits toward the taller end. The chainstay of 447 mm sits toward the longer rear-center end.
Compared with 180 distinct mountain geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.MD geometry
Configuration
Archive context: Its stack of 643 mm sits toward the taller end. Its wheelbase of 1263 mm sits toward the longer end. The head angle of 63° sits toward the slacker end.
Compared with 182 distinct mountain geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Archive context: The head angle of 62.6° sits toward the slacker end. Its stack of 647 mm sits toward the taller end. Its wheelbase of 1263 mm sits toward the longer end.
Compared with 182 distinct mountain geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.LG geometry
Configuration
Archive context: Its wheelbase of 1303 mm sits toward the longer end. Its stack of 652 mm sits toward the taller end. The head angle of 63° sits toward the slacker end.
Compared with 178 distinct mountain geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Archive context: Its stack of 656 mm sits toward the taller end. Its wheelbase of 1303 mm sits toward the longer end. The head angle of 62.6° sits toward the slacker end.
Compared with 178 distinct mountain geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.XL geometry
Configuration
Archive context: Its wheelbase of 1333 mm sits toward the longer end. The head angle of 63° sits toward the slacker end. The chainstay of 450 mm sits toward the longer rear-center end.
Compared with 153 distinct mountain geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Archive context: The head angle of 62.6° sits toward the slacker end. Its wheelbase of 1333 mm sits toward the longer end. The chainstay of 452 mm sits toward the longer rear-center end.
Compared with 153 distinct mountain geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Used-frameset inspection
If you’re buying this frameset used
Before buying: confirm the serial number and exact model, inspect frame and fork alignment, and inventory every included axle, hanger, clamp, headset part, cable guide and proprietary fitting.
Inspect the frame and fork →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- SuspensionAsk when the rear shock was last serviced. Check the shaft and seals for damage or oil, cycle the shock through its travel and test every suspension pivot for play.Evaluate the suspension →
- Included hardwareInventory every axle, hanger, clamp, headset part, cable guide, frame plug and proprietary fitting included with the frameset. Confirm replacement availability before treating a missing small part as insignificant.
Used-frameset inspection checklist 16 universal checks for a record with limited component data Open checklistClose checklist
The archived record does not contain enough component detail for a fully specification-informed frameset checklist. Use these universal checks on the frameset in front of you, inventory every included part and confirm exact interfaces before choosing components.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Transition TR11 Alloy Frameset · Mountain · Published sizes: S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: TR11 Alloy 211mm
Suspension
Evaluate the suspension →Archived: Rear shock: RockShox Vivid Ultimate DH(225x75mm)
Alignment
Inspect the frame and fork →Frame interfaces
Inspect the bottom bracket and shell →Before accepting the frameset
Inspect the frame and fork →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
