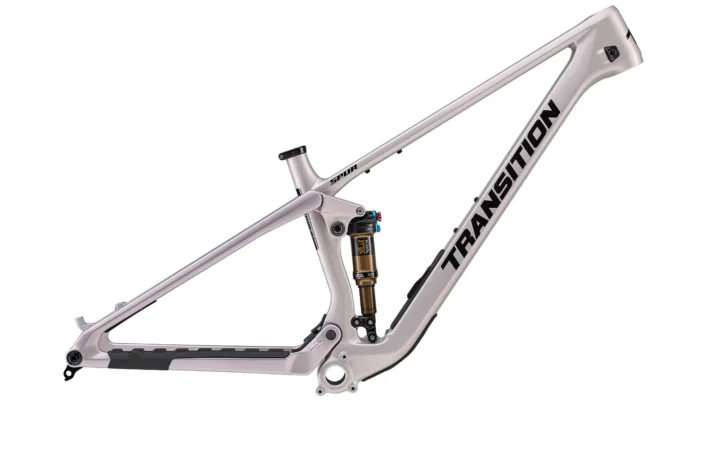

2026 Transition Spur Frameset
Original manufacturer specifications including 29" wheels, 5.6 lbs / 2.54 kg (Size MD) published weight, geometry for 8 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Mountain
- Original MSRP
- $3,599.00
- Sizes
- S, M, L, XL
- Colors
- Nightshade, Frostberry
- Weight
- 5.6 lbs / 2.54 kg (Size MD)
- Geometry
- 8 manufacturer sizes · Geometry context
- Record coverage
- 6 preserved details · 2 archived images · original MSRP · preserved geometry
- Archive ID
- 900001513
Frameset
| Frame Construction | Spur Carbon 120mm |
|---|---|
| Frame Material | Carbon Fiber |
| Rear Shock | Fox Float SL Factory(190x45mm) |
Cockpit & Contact Points
| Headset | FSA No.42/48/ACB (Included) |
|---|
Wheels & Tires
| Wheel Size | 29" |
|---|
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | SM · High | SM · Low | MD · High | MD · Low | LG · High | LG · Low | XL · High | XL · Low |
|---|---|---|---|---|---|---|---|---|
| Seat tube | 360 mm | 360 mm | 390 mm | 390 mm | 430 mm | 430 mm | 460 mm | 460 mm |
| Effective top tube | 570 mm | 570 mm | 603 mm | 603 mm | 631 mm | 631 mm | 660 mm | 660 mm |
| Head tube | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm | 135 mm | 135 mm |
| Head-tube angle | 66° | 65.5° | 66° | 65.5° | 66° | 65.5° | 66° | 65.5° |
| Chainstay / rear center | 434 mm | 436 mm | 434 mm | 436 mm | 439 mm | 441 mm | 439 mm | 441 mm |
| Wheelbase | 1163 mm | 1163 mm | 1197 mm | 1197 mm | 1231 mm | 1231 mm | 1262 mm | 1262 mm |
| Bottom-bracket drop | 40 mm | 47 mm | 40 mm | 47 mm | 40 mm | 47 mm | 40 mm | 47 mm |
| Reach | 430 mm | 425 mm | 460 mm | 455 mm | 485 mm | 480 mm | 510 mm | 505 mm |
| Stack | 608 mm | 612 mm | 617 mm | 621 mm | 626 mm | 630 mm | 640 mm | 644 mm |
| Standover height | 660 mm | 660 mm | 660 mm | 660 mm | 660 mm | 660 mm | 660 mm | 660 mm |
Geometry source: Transition first-party SBG geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
The manufacturer publishes more than one geometry configuration. Velopedia analyzes each labeled state separately while treating them as one chassis in archive comparisons.
SM geometry
Configuration
Archive context: Its bottom-bracket drop of 40 mm sits somewhat deeper than typical. The head angle of 66° sits somewhat steeper than typical. Its wheelbase of 1163 mm sits close to the middle of the group.
Compared with 180 distinct mountain geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Archive context: Its bottom-bracket drop of 47 mm sits somewhat deeper than typical. The chainstay of 436 mm sits somewhat longer than typical. Its wheelbase of 1163 mm sits close to the middle of the group.
Compared with 180 distinct mountain geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.MD geometry
Configuration
Archive context: Its reach of 460 mm sits somewhat longer than typical. The head angle of 66° sits somewhat steeper than typical. The chainstay of 434 mm sits somewhat shorter than typical.
Compared with 182 distinct mountain geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Archive context: Its bottom-bracket drop of 47 mm sits somewhat deeper than typical. Its wheelbase of 1197 mm sits close to the middle of the group. Its reach of 455 mm sits close to the middle of the group.
Compared with 182 distinct mountain geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.LG geometry
Configuration
Archive context: Its reach of 485 mm sits somewhat longer than typical. The head angle of 66° sits somewhat steeper than typical. Its bottom-bracket drop of 40 mm sits somewhat deeper than typical.
Compared with 178 distinct mountain geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Archive context: The chainstay of 441 mm sits somewhat longer than typical. Its bottom-bracket drop of 47 mm sits somewhat deeper than typical. Its reach of 480 mm sits somewhat longer than typical.
Compared with 178 distinct mountain geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.XL geometry
Configuration
Archive context: Its reach of 510 mm sits somewhat longer than typical. The head angle of 66° sits somewhat steeper than typical. Its bottom-bracket drop of 40 mm sits somewhat deeper than typical.
Compared with 153 distinct mountain geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Archive context: Its bottom-bracket drop of 47 mm sits somewhat deeper than typical. The chainstay of 441 mm sits somewhat longer than typical. Its stack of 644 mm sits close to the middle of the group.
Compared with 153 distinct mountain geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Parts & serviceability
Find replacement parts
FSA No.42/48/ACB (Included)
Exact archived model
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-frameset inspection
If you’re buying this frameset used
Before buying: confirm the serial number and exact model, inspect frame and fork alignment, and inventory every included axle, hanger, clamp, headset part, cable guide and proprietary fitting.
Inspect the frame and fork →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- SuspensionAsk when the rear shock was last serviced. Check the shaft and seals for damage or oil, cycle the shock through its travel and test every suspension pivot for play.Evaluate the suspension →
- Included hardwareInventory every axle, hanger, clamp, headset part, cable guide, frame plug and proprietary fitting included with the frameset. Confirm replacement availability before treating a missing small part as insignificant.
Used-frameset inspection checklist 16 universal checks for a record with limited component data Open checklistClose checklist
The archived record does not contain enough component detail for a fully specification-informed frameset checklist. Use these universal checks on the frameset in front of you, inventory every included part and confirm exact interfaces before choosing components.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Transition Spur Frameset · Mountain · Published sizes: S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Spur Carbon 120mm
Suspension
Evaluate the suspension →Archived: Rear shock: Fox Float SL Factory(190x45mm)
Alignment
Inspect the frame and fork →Frame interfaces
Inspect the bottom bracket and shell →Before accepting the frameset
Inspect the frame and fork →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
