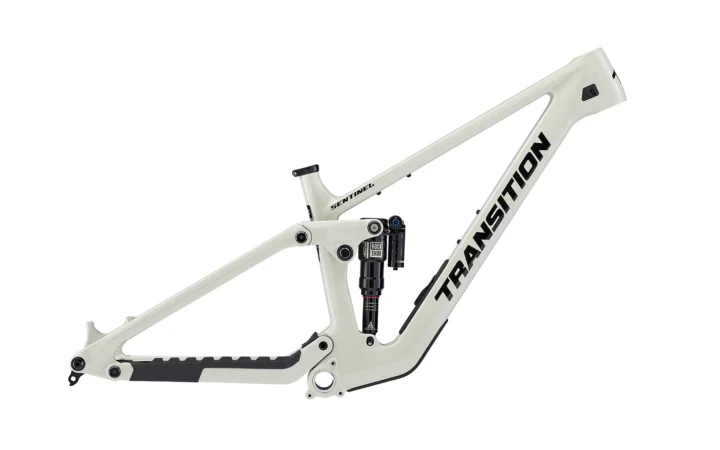

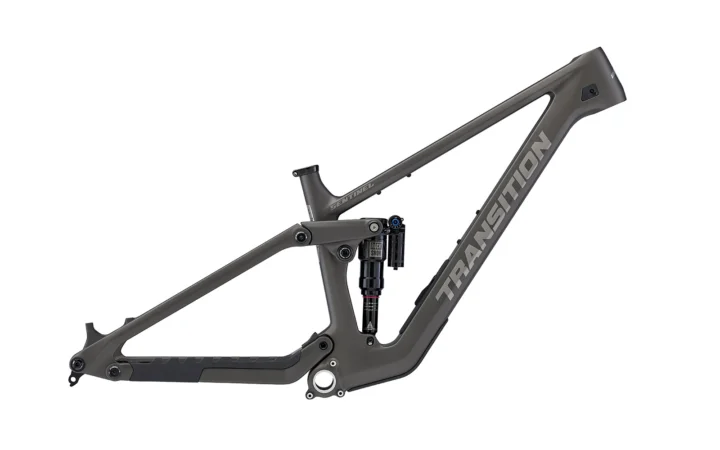

2026 Transition Sentinel Carbon Frameset Youth
Original manufacturer specifications including 27.5" wheels, 7.41 lbs / 3.36 kg published weight, geometry for 1 published size.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Mountain
- Original MSRP
- $3,599.00
- Sizes
- XS
- Colors
- Deep Purple, Graphite Grey, Glacier White
- Weight
- 7.41 lbs / 3.36 kg
- Geometry
- 1 manufacturer size · Geometry context
- Record coverage
- 5 preserved details · 3 archived images · original MSRP · preserved geometry
- Archive ID
- 900001434
Frameset
| Frame Construction | Sentinel Carbon 150mm |
|---|---|
| Frame Material | Carbon Fiber |
| Rear Shock | RockShox Super Deluxe Ultimate (205x60mm) |
Wheels & Tires
| Wheel Size | 27.5" |
|---|
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS |
|---|---|
| Seat tube | 360 mm |
| Effective top tube | 527 mm |
| Head tube | 100 mm |
| Head-tube angle | 64° |
| Chainstay / rear center | 436 mm |
| Wheelbase | 1173 mm |
| Bottom-bracket drop | 15 mm |
| Reach | 415 mm |
| Stack | 592 mm |
Geometry source: Transition first-party SBG geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS geometry
Archive context: Its bottom-bracket drop of 15 mm sits toward the shallower-drop end. The head angle of 64° sits toward the slacker end. Its wheelbase of 1173 mm sits toward the longer end.
Compared with 56 distinct mountain geometries in the XS-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Used-frameset inspection
If you’re buying this frameset used
Before buying: confirm the serial number and exact model, inspect frame and fork alignment, and inventory every included axle, hanger, clamp, headset part, cable guide and proprietary fitting.
Inspect the frame and fork →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- SuspensionAsk when the rear shock was last serviced. Check the shaft and seals for damage or oil, cycle the shock through its travel and test every suspension pivot for play.Evaluate the suspension →
- Included hardwareInventory every axle, hanger, clamp, headset part, cable guide, frame plug and proprietary fitting included with the frameset. Confirm replacement availability before treating a missing small part as insignificant.
Used-frameset inspection checklist 16 universal checks for a record with limited component data Open checklistClose checklist
The archived record does not contain enough component detail for a fully specification-informed frameset checklist. Use these universal checks on the frameset in front of you, inventory every included part and confirm exact interfaces before choosing components.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Transition Sentinel Carbon Frameset Youth · Mountain · Published sizes: XS
Frame and fork
Inspect the frame and fork →Archived: Frame: Sentinel Carbon 150mm
Suspension
Evaluate the suspension →Archived: Rear shock: RockShox Super Deluxe Ultimate (205x60mm)
Alignment
Inspect the frame and fork →Frame interfaces
Inspect the bottom bracket and shell →Before accepting the frameset
Inspect the frame and fork →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
