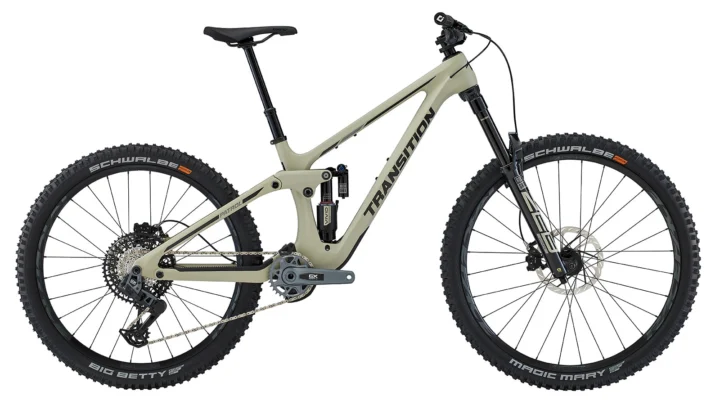

2026 Transition Patrol GX AXS Carbon
Original manufacturer specifications including Mixed wheels, 33.1 lbs / 14.97 kg (Size MD) published weight, geometry for 8 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Mountain
- Original MSRP
- $6,999.00
- Sizes
- S, M, L, XL
- Colors
- Beachwood, Blue Lagoon
- Weight
- 33.1 lbs / 14.97 kg (Size MD)
- Geometry
- 8 manufacturer sizes · Geometry context
- Record coverage
- 22 preserved details · 2 archived images · original MSRP · preserved geometry
- Archive ID
- 900001566
Frameset
| Frame Construction | Patrol Carbon 160mm |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | RockShox ZEB Ultimate (160mm) |
| Rear Shock | RockShox Vivid Ultimate (205x60mm) |
Drivetrain
| Shifters | SRAM POD Bridge MMX |
|---|---|
| Rear Derailleur | SRAM GX AXS Eagle Transmission |
| Crankset | SRAM GX Eagle DUB T-Type(32t/165mm) |
| Cassette | SRAM XS 1275 T-Type (10-52t) |
| Chain | SRAM GX Eagle Transmission |
Brakes
| Brakes | SRAM Maven Silver; Rotors: SRAM HS2 (200mm) |
|---|
Cockpit & Contact Points
| Headset | FSA no.55R/57 |
|---|---|
| Handlebar | ANVL Mandrel Alloy 35 SM (800x20mm) MD (800x30mm) LG/XL (800x40mm) |
| Stem | ANVL Swage (40mm) |
| Saddle | SDG Bel Air 3 LUX |
| Seatpost | OneUp Dropper Post SM (150mm) MD (180mm) LG/XL (210mm) |
Wheels & Tires
| Hubs | RaceFace Trace 28H or DT Swiss 370 Ratchet LN |
|---|---|
| Rims | RaceFace Aeffect R or DT Swiss 1900 Spline 30 |
| Spokes | RaceFace 2.0/1.7/2.0 or DT Swiss Champion |
| Front Tire | Schwalbe Magic Mary Super Trail, Soft (2.4) |
| Rear Tire | Schwalbe Big Betty Super Trail, Soft (2.4) |
| Wheel Size | Mixed |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | SM · High | SM · Low | MD · High | MD · Low | LG · High | LG · Low | XL · High | XL · Low |
|---|---|---|---|---|---|---|---|---|
| Seat tube | 360 mm | 360 mm | 390 mm | 390 mm | 430 mm | 430 mm | 460 mm | 460 mm |
| Effective top tube | 543 mm | 540 mm | 578 mm | 575 mm | 606 mm | 603 mm | 639 mm | 636 mm |
| Head tube | 100 mm | 100 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm |
| Head-tube angle | 63.5° | 63° | 63.5° | 63° | 63.5° | 63° | 63.5° | 63° |
| Chainstay / rear center | 434 mm | 436 mm | 434 mm | 436 mm | 440 mm | 442 mm | 440 mm | 442 mm |
| Wheelbase | 1196 mm | 1198 mm | 1231 mm | 1233 mm | 1266 mm | 1268 mm | 1301 mm | 1303 mm |
| Bottom-bracket drop | 35 mm | 42 mm | 35 mm | 42 mm | 35 mm | 42 mm | 35 mm | 42 mm |
| Reach | 420 mm | 415 mm | 455 mm | 450 mm | 480 mm | 475 mm | 510 mm | 505 mm |
| Stack | 623 mm | 628 mm | 623 mm | 628 mm | 632 mm | 637 mm | 641 mm | 646 mm |
| Standover height | 675 mm | 685 mm | 690 mm | 700 mm | 705 mm | 715 mm | 720 mm | 730 mm |
Geometry source: Transition first-party SBG geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
