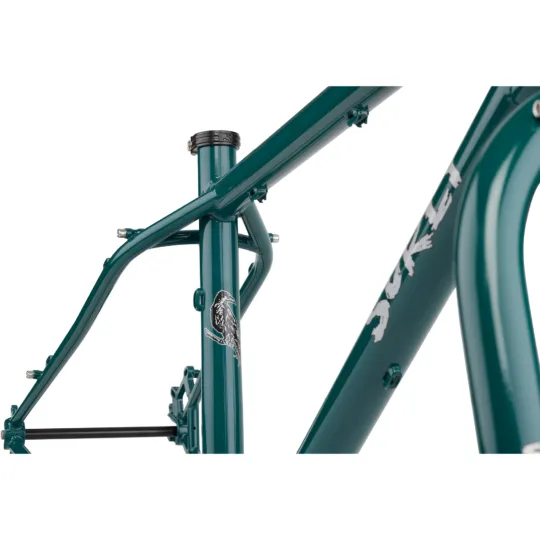

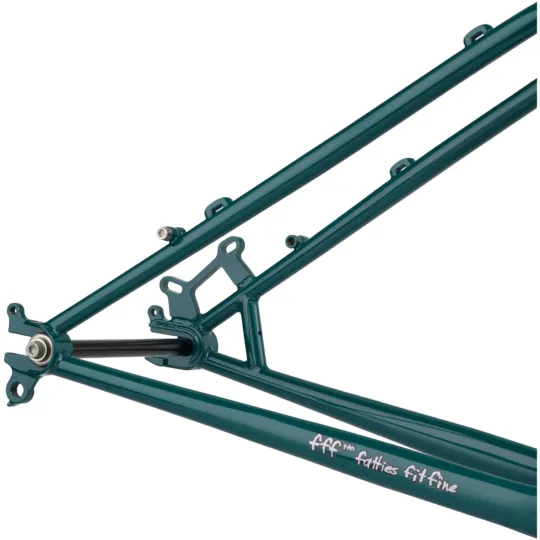

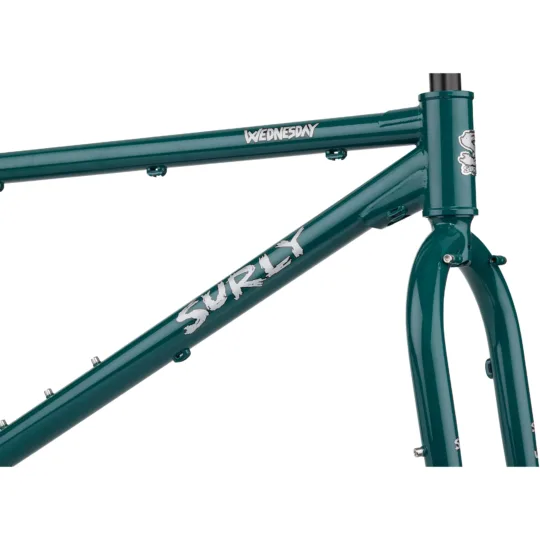

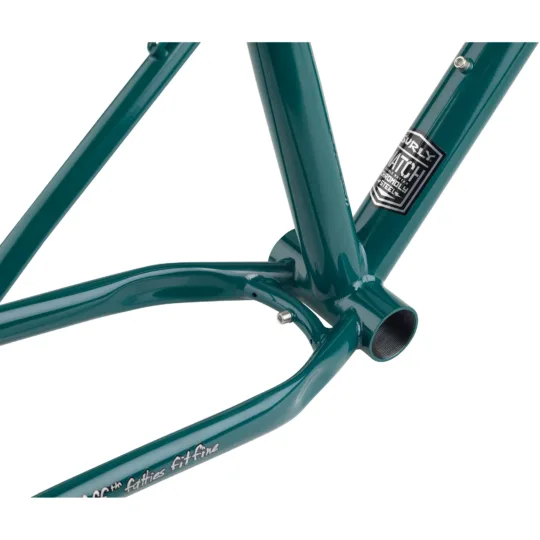

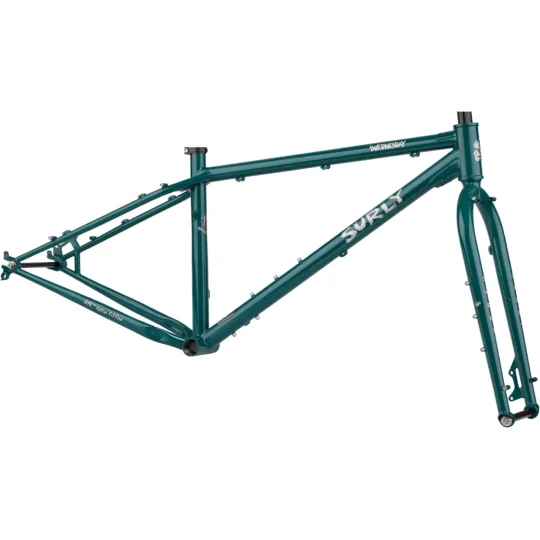

Surly Wednesday Frameset - OG Algae

Original specifications: 26" wheels · geometry for 5 published sizes.

Share owner experience

At a glance

Model year: Not published by manufacturer
Category: Mountain
Original MSRP: $849.00
Sizes: XS, S, M, L, XL
Colors: OG Algae
Geometry: 5 manufacturer sizes
In this record: 5 specifications · 8 archived images · original MSRP · geometry
Archive ID: 900000570

Learn more about Surly →

Original buildSteel · 26"

Manufacturer catalog

Published sizes and colors

5 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

XSSMLXL

Published colors

OG Algae

Frameset

Frame Construction	Surly Wednesday, 100% Surly 4130 Chromoly steel. 100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Frame Material	Steel
Fork	Surly Wednesday, 100% Surly 4130 Chromoly steel. 100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Fork Material	Steel

Wheels & Tires

Wheel Size	26"

Geometry

5 sizes · 13 measurements

Frame measurements by size.

Measurement	X-Small	Small	Medium	Large	X-Large
Seat tube	316 mm	366 mm	416 mm	466 mm	516 mm
Effective top tube	570 mm	590 mm	610 mm	630 mm	650 mm
Head tube	95 mm	100 mm	110 mm	120 mm	130 mm
Head-tube angle	69°	69°	69°	69°	69°
Seat-tube angle	73.5°	73.5°	73.5°	73.5°	73.5°
Chainstay / rear center	435 mm	435 mm	435 mm	435 mm	435 mm
Wheelbase	1081 mm	1101 mm	1122 mm	1143 mm	1164 mm
Bottom-bracket drop	55 mm	55 mm	55 mm	55 mm	55 mm
Reach	400 mm	420 mm	436 mm	453 mm	471 mm
Stack	573 mm	578 mm	587 mm	597 mm	606 mm
Standover height	711 mm	737 mm	774 mm	807 mm	841 mm
Fork offset / rake	47 mm	47 mm	47 mm	47 mm	47 mm
Fork length / axle-to-crown	468 mm	468 mm	468 mm	468 mm	468 mm

Measurements may vary by configuration, wheel size, or frame setting where noted in the published chart.
