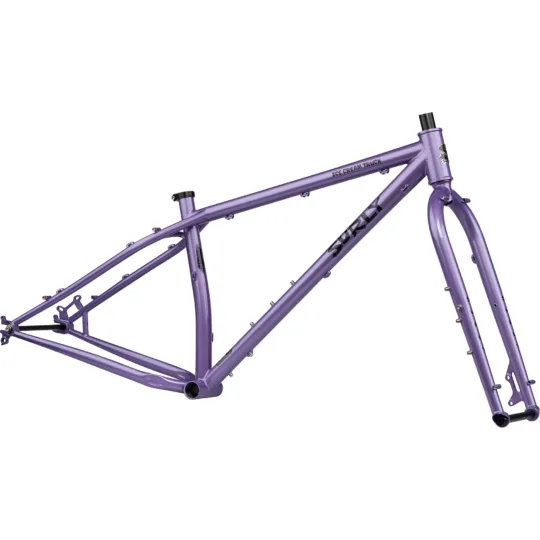

Surly Ice Cream Truck Frameset - Taro Milk Tea

Original specifications: 26" wheels · geometry for 4 published sizes.

Share owner experience

At a glance

Model year: Not published by manufacturer
Category: Mountain
Original MSRP: $899.00
Sizes: S, M, L, XL
Colors: Taro Milk Tea
Geometry: 4 manufacturer sizes
In this record: 5 specifications · 8 archived images · original MSRP · geometry
Archive ID: 900000873

Original buildSteel · 26"

Manufacturer catalog

Published sizes and colors

4 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

SMLXL

Published colors

Taro Milk Tea

Frameset

Frame Construction	Surly Ice Cream Truck 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Frame Material	Steel
Fork	Surly Ice Cream Truck 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
Fork Material	Steel

Wheels & Tires

Wheel Size	26"

Geometry

4 sizes · 13 measurements

Frame measurements by size.

Measurement	Small	Medium	Large	X-Large
Seat tube	366 mm	419 mm	470 mm	521 mm
Effective top tube	585 mm	610 mm	635 mm	660 mm
Head tube	95 mm	105 mm	115 mm	125 mm
Head-tube angle	68°	68°	68°	68°
Seat-tube angle	73°	73°	73°	73°
Chainstay / rear center	440 mm	440 mm	440 mm	440 mm
Wheelbase	1105 mm	1131 mm	1157 mm	1182 mm
Bottom-bracket drop	60 mm	60 mm	60 mm	60 mm
Reach	405 mm	427 mm	449 mm	472 mm
Stack	588 mm	598 mm	607 mm	616 mm
Standover height	777 mm	803 mm	831 mm	860 mm
Fork offset / rake	47 mm	47 mm	47 mm	47 mm
Fork length / axle-to-crown	483 mm	483 mm	483 mm	483 mm

Dimensions as recorded.
