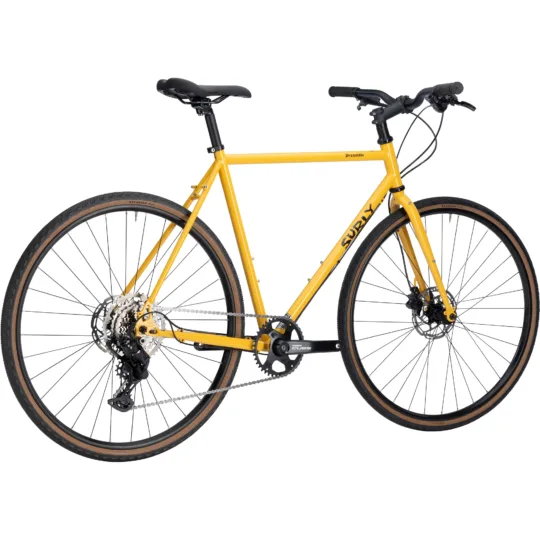

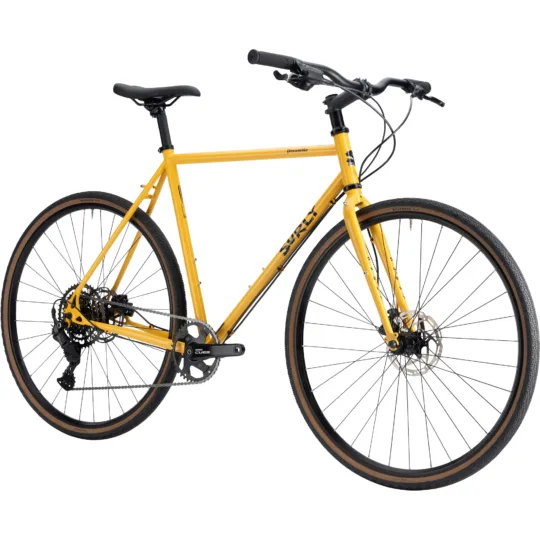

Surly Preamble Flat Bar - Milky Lemonade

City/Commuter bicycle from the Velopedia specification archive.

Model year: Not published by manufacturer
Original MSRP: $1,099.00
Sizes: X-Small; Small; Medium; Large; X-Large
Colors: Milky Lemonade
Weight: 27 lb 7 oz for Medium
Geometry: 5 manufacturer sizes
Archive ID: 900000434
Catalog verified: August 13, 2026

Current market

0 close matches

Used asking No listingsNo close matches in this condition.

New asking No listingsNo close matches in this condition.

View market details

Frameset

Frame Construction	Surly Premble - 100% Surly Chromoly steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Frame Material	Steel
Fork	Surly Preamble - 100% Surly Chromoly steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
Fork Material	Steel

Drivetrain

Shifters	Shimano Cues U4000
Front Derailleur	N/A
Rear Derailleur	Shimano Cues U4000 GS
Crankset	Shimano Cues U4000, 40T
Bottom Bracket	Shimano UN101, 68mm BSA
Cassette	Shimano Cues LG400, 11-46t, 9spd
Chain	Shimano LG500

Brakes

Brakes	Brake Calipers: Tektro HD-M275 OR Tektro HD-M3120, 2 Piston; Brake Levers: Tektro HD-M275 OR Tektro HD-M3120; Rotors: Tektro 160/160mm, Center Lock

Cockpit & Contact Points

Headset	FSA Orbit MX
Handlebar	Kalloy AL, 9 degree backsweep, 35mm rise
Stem	Kalloy AL 31.8mm
Saddle	WTB Volt Wide
Seatpost	Kalloy 27.2 x 300mm: 0 offset (XS-MD), 12mm offset (LG-XL)

Wheels & Tires

Hubs	(F) Shimano MT200 QR x 100mm, Center Lock, 32h / (R) Shimano QC400 QR x 141mm, Center Lock, 32h
Rims	Shining DB-21, 32h
Spokes	14G Black
Front Tire	Teravail Washburn 650b x 35, Wire Bead (XS-SM)
Rear Tire	Teravail Washburn 650b x 35, Wire Bead (XS-SM)
Wheel Size	650B

Size-specific frame data

Geometry

5 sizes · 16 measurements

Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.

Measurement	X-Small	Small	Medium	Large	X-Large
Seat tube	410 mm	505 mm	565 mm	605 mm	645 mm
Effective top tube	500 mm	545 mm	570 mm	600 mm	630 mm
Head tube	120 mm	135 mm	130 mm	170 mm	210 mm
Head-tube angle	70°	71°	72°	72°	72°
Seat-tube angle	74°	73°	72.5°	72°	72°
Chainstay / rear center	420 mm	420 mm	435 mm	435 mm	435 mm
Wheelbase	987 mm	1013 mm	1030 mm	1055 mm	1085 mm
Bottom-bracket drop	54 mm	54 mm	66 mm	66 mm	66 mm
Reach	352 mm	381 mm	391 mm	404 mm	421 mm
Stack	517 mm	535 mm	567 mm	605 mm	643 mm
Standover height	722 mm	776 mm	826 mm	863 mm	901 mm
Fork offset / rake	47 mm	47 mm	44 mm	44 mm	44 mm
Fork length / axle-to-crown	380 mm	380 mm	400 mm	400 mm	400 mm
Crank length	170 mm	170 mm	170 mm	175 mm	175 mm
Stem length	80 mm	90 mm	90 mm	100 mm	100 mm
Handlebar width	700 mm	700 mm	720 mm	720 mm	720 mm

Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
