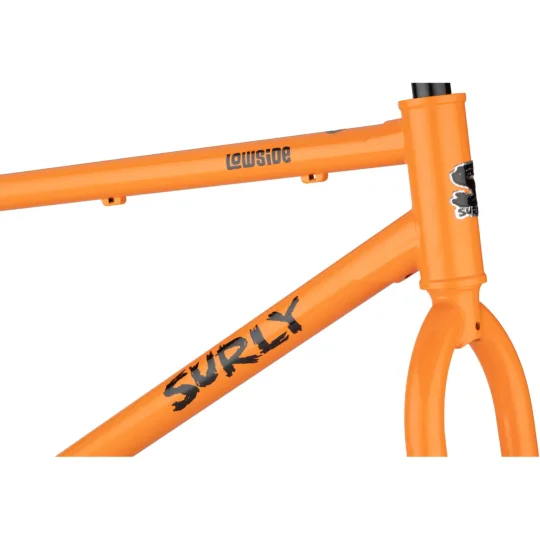

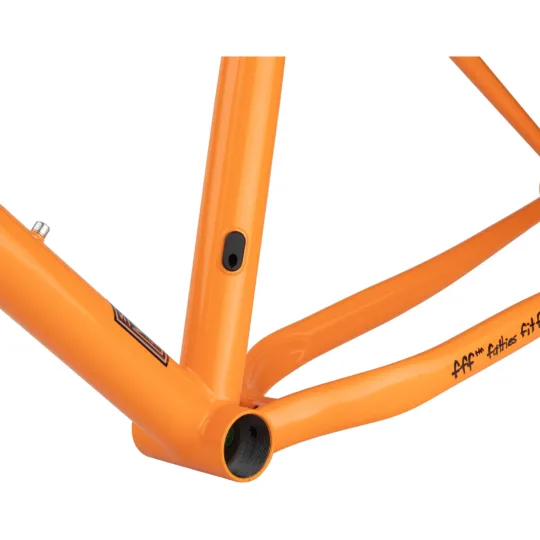

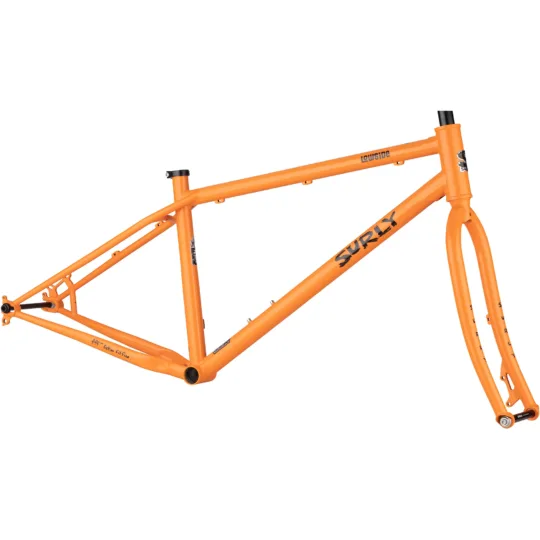

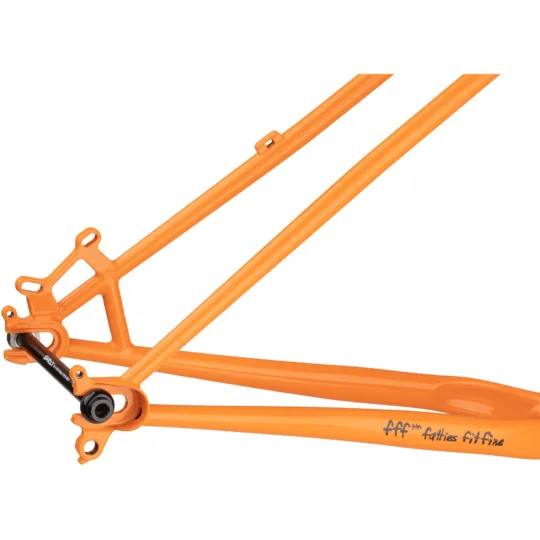

Surly Lowside Frameset - Dream Tangerine
Original manufacturer specifications including 26" wheels, geometry for 5 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- Not published by manufacturer
- Category
- Mountain
- Original MSRP
- $899.00
- Sizes
- XS, S, M, L, XL
- Colors
- Dream Tangerine
- Geometry
- 5 manufacturer sizes
- Record coverage
- 5 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900001170
Frameset
| Frame Construction | Surly Lowside - 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated |
|---|---|
| Frame Material | Steel |
| Fork | Surly Lowside - 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated |
| Fork Material | Steel |
Wheels & Tires
| Wheel Size | 26" |
|---|
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| Seat tube | 316 mm | 366 mm | 416 mm | 466 mm | 516 mm |
| Effective top tube | 570 mm | 590 mm | 610 mm | 630 mm | 650 mm |
| Head tube | 110 mm | 125 mm | 140 mm | 155 mm | 170 mm |
| Head-tube angle | 70° | 70° | 70° | 70° | 70° |
| Seat-tube angle | 74° | 74° | 74° | 74° | 74° |
| Chainstay / rear center | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1068 mm | 1089 mm | 1110 mm | 1131 mm | 1152 mm |
| Bottom-bracket drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Reach | 414.5 mm | 429.3 mm | 445.3 mm | 461 mm | 477 mm |
| Stack | 542.2 mm | 560.3 mm | 574.4 mm | 588.5 mm | 602.5 mm |
| Standover height | 700 mm | 729 mm | 762 mm | 792 mm | 823 mm |
| Fork offset / rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Fork length / axle-to-crown | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Used-frameset inspection
If you’re buying this frameset used
Before buying: confirm the serial number and exact model, inspect frame and fork alignment, and inventory every included axle, hanger, clamp, headset part, cable guide and proprietary fitting.
Inspect the frame and fork →- FrameCheck paint chips, vent holes and the inside of the seat tube for corrosion. Also look for dents, bent tubes and cracking around welded or brazed joints.Inspect the frame and fork →
- Included hardwareInventory every axle, hanger, clamp, headset part, cable guide, frame plug and proprietary fitting included with the frameset. Confirm replacement availability before treating a missing small part as insignificant.
- AlignmentSight along the frame and fork from several directions. Confirm that the fork, rear dropouts, head tube and other visible interfaces appear straight; professional measurement is appropriate when alignment cannot be established visually.
Used-frameset inspection checklist 14 universal checks for a record with limited component data Open checklistClose checklist
The archived record does not contain enough component detail for a fully specification-informed frameset checklist. Use these universal checks on the frameset in front of you, inventory every included part and confirm exact interfaces before choosing components.
Identity and fit
Follow the full used-bike inspection order →Archived: Surly Lowside Frameset - Dream Tangerine · Mountain · Published sizes: XS, S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Surly Lowside - 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated · Fork: Surly Lowside - 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated · Steel
Alignment
Inspect the frame and fork →Frame interfaces
Inspect the bottom bracket and shell →Before accepting the frameset
Inspect the frame and fork →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
