Velopedia Bicycle Archive

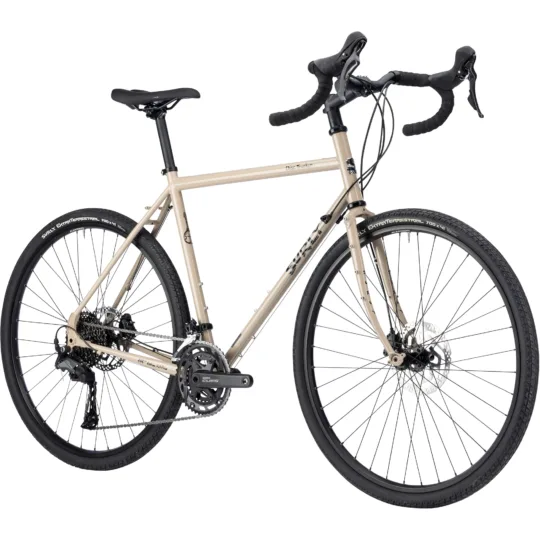

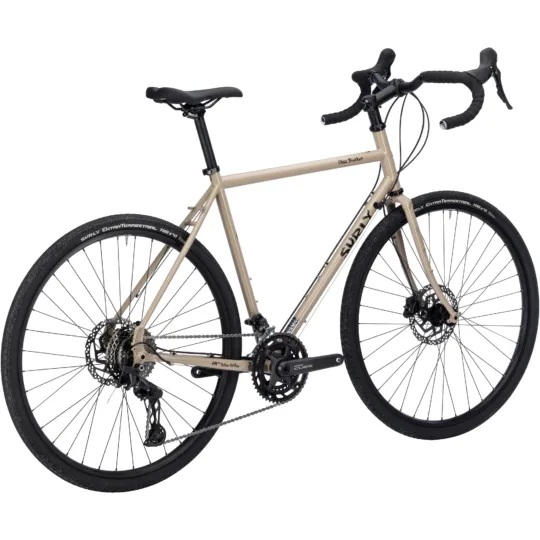

Surly Disc Trucker 700c - Grandpa's Khakis

Touring bicycle from the Velopedia specification archive.

Model year: Not published by manufacturer
Original MSRP: $2,199.00
Sizes: 56cm; 58cm; 60cm; 62cm; 64cm
Colors: Grandpa's Khakis
Weight: 29lb 13oz for 56cm
Geometry: 5 manufacturer sizes
Archive ID: 900000362
Catalog verified: August 12, 2026

Current market

0 close matches

Used asking No listingsNo close matches in this condition.

New asking No listingsNo close matches in this condition.

View market details

Frameset

Frame Construction	Surly Disc Trucker - 100% Surly Chromoly steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Frame Material	Steel
Fork	Surly Disc Trucker - 100% Surly Chromoly steel, Natch tubing, double-butted tapered fork blades, brazed lugs, E.D. coated
Fork Material	Steel

Drivetrain

Shifters	Shimano CUES U6030
Front Derailleur	Shimano CUES U6030
Rear Derailleur	Shimano CUES 6020 SGS
Crankset	Shimano CUES U6010, 46/30T
Bottom Bracket	Shimano UR400 BSA
Cassette	Shimano CUES LG400, 11-39t, 10-speed
Chain	Shimano LG500

Brakes

Brakes	Brake Calipers: Shimano CUES U6030; Brake Levers: Shimano CUES U6030; Rotors: Shimano RT26 180/180, 6-Bolt

Cockpit & Contact Points

Headset	FSA Orbit MX
Handlebar	Surly Truckstop
Stem	Promax DA-296, 31.8mm
Saddle	WTB Volt Wide OR WTB Rocket Medium Fusion
Seatpost	Promax 27.2 x 350mm

Wheels & Tires

Hubs	(F) Novatec 12 x 100mm, 6-bolt, 36h / (R) Novatec 12 x 142mm, 6-bolt, 36h
Rims	Alex Adventurer 2 700c, 36h
Spokes	14G Black
Front Tire	Surly ExtraTerrestrial 700c x 41mm, 60tpi
Rear Tire	Surly ExtraTerrestrial 700c x 41mm, 60tpi
Wheel Size	700C; 26"

Size-specific frame data

Geometry

5 sizes · 16 measurements

Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.

Measurement	56cm	58cm	60cm	62cm	64cm
Seat tube	560 mm	580 mm	600 mm	620 mm	640 mm
Effective top tube	575 mm	590 mm	605 mm	620 mm	635 mm
Head tube	175 mm	195 mm	215 mm	235 mm	250 mm
Head-tube angle	72°	72°	72°	72°	72°
Seat-tube angle	73°	72.5°	72.5°	72°	72°
Chainstay / rear center	450 mm	450 mm	450 mm	450 mm	450 mm
Wheelbase	1051 mm	1060 mm	1075.5 mm	1084 mm	1090 mm
Bottom-bracket drop	80 mm	80 mm	80 mm	80 mm	80 mm
Reach	387.5 mm	391 mm	400 mm	402 mm	412.5 mm
Stack	613 mm	632 mm	651.5 mm	670.5 mm	685 mm
Standover height	813 mm	831 mm	850 mm	869 mm	885 mm
Fork offset / rake	45 mm	45 mm	45 mm	45 mm	45 mm
Fork length / axle-to-crown	390 mm	390 mm	390 mm	390 mm	390 mm
Crank length	170 mm	170 mm	170 mm	170 mm	170 mm
Stem length	100 mm	100 mm	110 mm	120 mm	120 mm
Handlebar width	480 mm	480 mm	480 mm	480 mm	480 mm

Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
