Velopedia Bicycle Archive

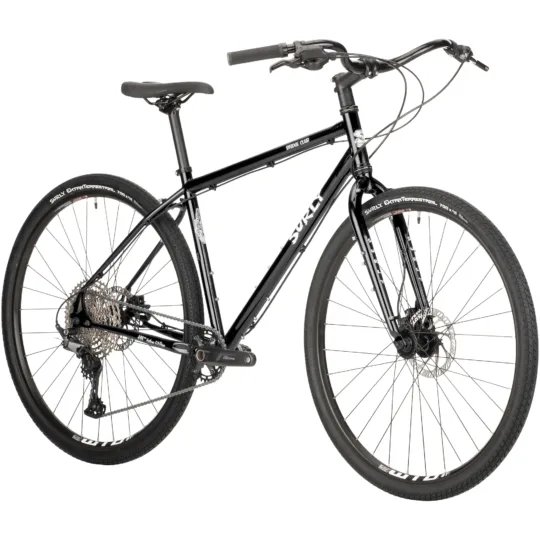

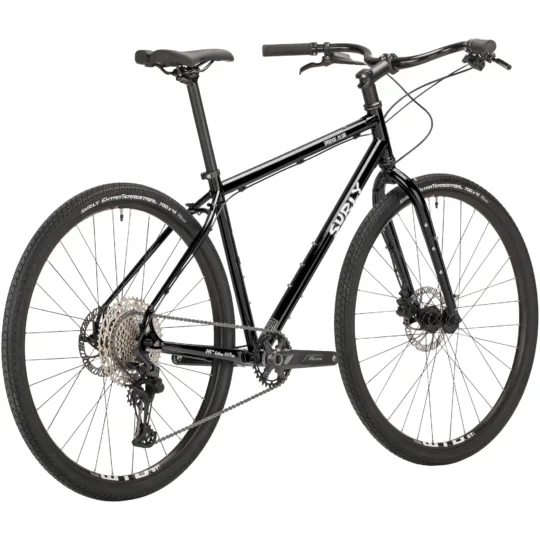

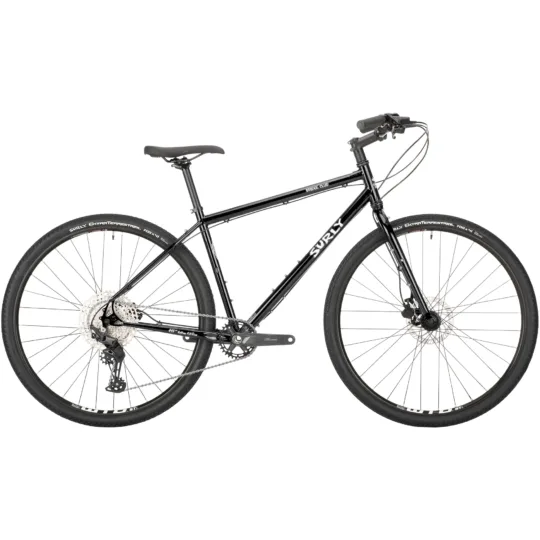

Surly Bridge Club 700c - Black

Touring bicycle from the Velopedia specification archive.

Model year: Not published by manufacturer
Original MSRP: $1,449.00
Sizes: X-Small; Small; Medium; Large; X-Large
Colors: Black
Geometry: 5 manufacturer sizes
Archive ID: 900000481
Catalog verified: August 13, 2026

Current market

0 close matches

Observed used market No listingsNo close used matches in the latest snapshot.

New asking No listingsNo close matches in this condition.

View market details

Velopedia analysis

What the specifications mean

Derived from the archived manufacturer record

The calculated 464% cassette spread is a clearer measure of gearing breadth than the component-group name by itself. The 700C label identifies a 622 mm bead-seat diameter, but tire width and frame or fork clearance remain separate compatibility questions. Tubeless-ready means the rims and tires are designed to support a tubeless setup; it does not confirm that the bike is currently set up without tubes. That still depends on the rim tape, valves, sealant and tire condition.

Gearing 464% cassette range Calculated from the published 11–51-tooth sprocket span.

Wheel standard 700C · 622 mm The label fixes rim diameter, not tire width or available frame and fork clearance.

Tire setup Tubeless-ready The rims and tires may support tubeless use, but the bike may still be running tubes.

Frame inspection Steel Paint damage and moisture entry matter because corrosion can start externally or inside the frame.

Used-bike inspection

If you’re buying this bike used

Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.

FrameCheck paint chips, vent holes and the inside of the seat tube for corrosion. Also look for dents, bent tubes and cracking around welded or brazed joints.
DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.
Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.
BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.
Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.

This interpretation explains relationships in the published data. Confirm exact standards and dimensions before ordering parts or performing service.

Frameset

Frame Construction	Surly Bridge Club - 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Frame Material	Steel
Fork	Surly Cocktail Fork - 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
Fork Material	Steel

Drivetrain

Shifters	Shimano Deore M5100 Rapid Fire
Front Derailleur	N/A
Rear Derailleur	Shimano Deore M5100 Shadow Plus
Crankset	Shimano Deore M5100 32t
Bottom Bracket	Shimano BSA
Cassette	Shimano Deore CSM5100 11-51t
Chain	KMC X11 EPT

Brakes

Brakes	Brake Levers: Tektro HD-M275; Rotors: Tektro 160/160, 6-Bolt

Cockpit & Contact Points

Headset	Cane Creek 40
Handlebar	Surly Terminal Bar
Stem	Promax, 31.8mm
Saddle	WTB Volt 142
Seatpost	Promax 27.2mm

Wheels & Tires

Hubs	(F) Novatec, QR x 100mm, 6 bolt, 32h / (R) Novatec, QR x 141mm, 6 bolt, 32h
Rims	WTB ST i21 TCS
Front Tire	Surly Extraterrestrial 700x41, 60tpi Tubeless Ready
Rear Tire	Surly Extraterrestrial 700x41, 60tpi Tubeless Ready
Wheel Size	27.5"; 26"; 700C

Size-specific frame data

Geometry

5 sizes · 16 measurements

Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.

Measurement	X-Small	Small	Medium	Large	X-Large
Seat tube	335.6 mm	406.4 mm	457.2 mm	508 mm	558.8 mm
Effective top tube	545 mm	570 mm	595 mm	615 mm	630 mm
Head tube	110 mm	120 mm	130 mm	145 mm	165 mm
Head-tube angle	70°	71°	71°	71°	71°
Seat-tube angle	73°	73°	73°	73°	73°
Chainstay / rear center	435 mm	435 mm	435 mm	435 mm	435 mm
Wheelbase	1032 mm	1047.5 mm	1073 mm	1093 mm	1109 mm
Bottom-bracket drop	60 mm	60 mm	60 mm	60 mm	60 mm
Reach	376 mm	397 mm	419 mm	434.5 mm	444 mm
Stack	553 mm	567 mm	576 mm	590 mm	609 mm
Standover height	709 mm	750.5 mm	780 mm	812 mm	845.5 mm
Fork offset / rake	45 mm	45 mm	45 mm	45 mm	45 mm
Fork length / axle-to-crown	420 mm	420 mm	420 mm	420 mm	420 mm
Crank length	170 mm	170 mm	175 mm	175 mm	175 mm
Stem length	80 mm	80 mm	90 mm	90 mm	90 mm
Handlebar width	700 mm	700 mm	740 mm	740 mm	740 mm

Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
