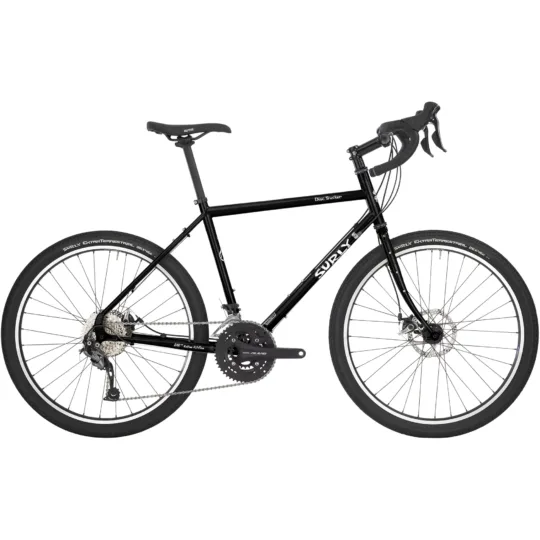

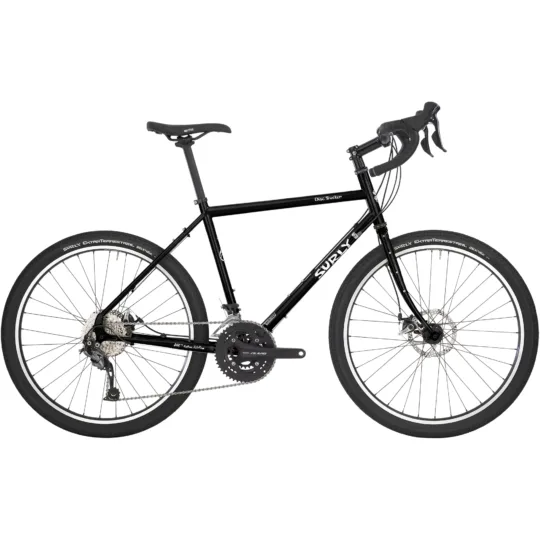

Surly Disc Trucker 26" - Hi-Viz Black

Touring bicycle from the Velopedia specification archive.

Model year: Not published by manufacturer
Original MSRP: $2,099.00
Sizes: 42cm; 46cm; 50cm; 52cm; 54cm; 56cm
Colors: Hi-Viz Black
Geometry: 6 manufacturer sizes
Archive ID: 900000358
Catalog verified: August 12, 2026

Current market

0 close matches

Used asking No listingsNo close matches in this condition.

New asking No listingsNo close matches in this condition.

View market details

Frameset

Frame Construction	Surly Disc Trucker: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Frame Material	Steel
Fork	Surly Disc Trucker: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Fork Material	Steel

Drivetrain

Shifters	Shimano Sora 3x9
Front Derailleur	Shimano Sora R3030
Rear Derailleur	Shimano Alivio M4000 SGS
Crankset	Shimano Alivio 48x36x26t
Bottom Bracket	Shimano BB-RS500
Cassette	Shimano Alivio, 11-34t, 9 speed
Chain	KMC X9

Brakes

Brakes	Brake Calipers: TRP Spyre C; Brake Levers: Shimano Sora; Rotors: TRP 160mm front and rear

Cockpit & Contact Points

Headset	Cane Creek 40
Handlebar	Surly Truckstop Bar
Stem	ProMax 31.8 4 bolt
Saddle	WTB Volt Sport
Seatpost	ProMax 27.2, 350L, non-offset (42-50), offset (52-64)

Wheels & Tires

Hubs	(F) Novatec 12x100, 6 bolt, 36H / (R) Novatec 12x142, 6 bolt, 36H
Rims	Alex Adventurer 2
Front Tire	Surly ExtraTerrestrial 26x46
Rear Tire	Surly ExtraTerrestrial 26x46
Wheel Size	26"; 700C

Size-specific frame data

Geometry

6 sizes · 16 measurements

Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.

Measurement	42cm	46cm	50cm	52cm	54cm	56cm
Seat tube	420 mm	460 mm	500 mm	520 mm	540 mm	560 mm
Effective top tube	500 mm	515 mm	530 mm	545 mm	560 mm	575 mm
Head tube	125 mm	130 mm	170 mm	185 mm	205 mm	225 mm
Head-tube angle	70°	70°	71°	71°	71°	71°
Seat-tube angle	75°	74.5°	74°	73.5°	73°	73°
Chainstay / rear center	450 mm	450 mm	450 mm	450 mm	450 mm	450 mm
Wheelbase	1026 mm	1037 mm	1040 mm	1050 mm	1060.5 mm	1076 mm
Bottom-bracket drop	50 mm	50 mm	50 mm	50 mm	50 mm	50 mm
Reach	362 mm	371 mm	369 mm	374.5 mm	378 mm	387.5 mm
Stack	515 mm	520 mm	561 mm	575.5 mm	594.5 mm	613 mm
Standover height	710 mm	731 mm	766 mm	782 mm	800 mm	819.5 mm
Fork offset / rake	45 mm	45 mm	45 mm	45 mm	45 mm	45 mm
Fork length / axle-to-crown	376 mm	376 mm	376 mm	376 mm	376 mm	376 mm
Crank length	165 mm	165 mm	170 mm	170 mm	170 mm	175 mm
Stem length	70 mm	70 mm	70 mm	90 mm	100 mm	110 mm
Handlebar width	420 mm	420 mm	420 mm	450 mm	450 mm	480 mm

Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
