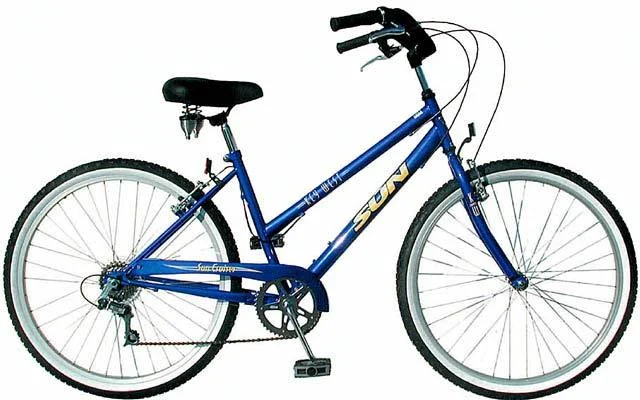

2008 Sun Bicycles Key West

Archived: 2008 Sun Bicycles Key West · Cruiser · Published sizes: 20", 23", womens 16"

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: TIG-Welded · Fork: Sun · Hi-Tensile Steel, Unicrown With 1-1/8" Curved Legs crown

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Archived: Group: Cruiser Mix · Shifters: SRAM MRX Grip Shift · Rear derailleur: Shimano Tourney TX-51 · Crankset: Alloy, 3-Piece, 170mm, Steel, 44T, Silver teeth · Bottom bracket: VP-B32 Cup & Cone Style, 119mm spindle · Rear cogs: 7-speed, 14 - 34 teeth · Chain: KMC Z51 RB, 1/2 x 3/32"

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Tektro Alloy V-brake brakes, Tektro Alloy for V-Brake levers

• Inspect pads, cables and housings, then examine both rim braking surfaces for concavity, cracking or heavy wear. Confirm each caliper returns and centers correctly.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Wheel size: 26" wheels · Rims: Weinman AS7X, Alloy, Single Wall, 36-hole · Hubs: Alloy With 3/8" Axle - Nutted · Front tire: 26 x 2.125" Kenda K841A

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

Archived: Headset: 1" VP-MH203C Steel, Sealed · Handlebar: Steel, Cruiser Type, 26.38" Wide by 6.69" Rise · Stem: Alloy, 80mm Ext, 200mm Quill, 40° Rise · Seatpost: Alloy, 300mm, 27.2mm diameter · Saddle: Sun Double Coil Spring Cruiser · Pedals: Wellgo LU-990 Cruiser

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
