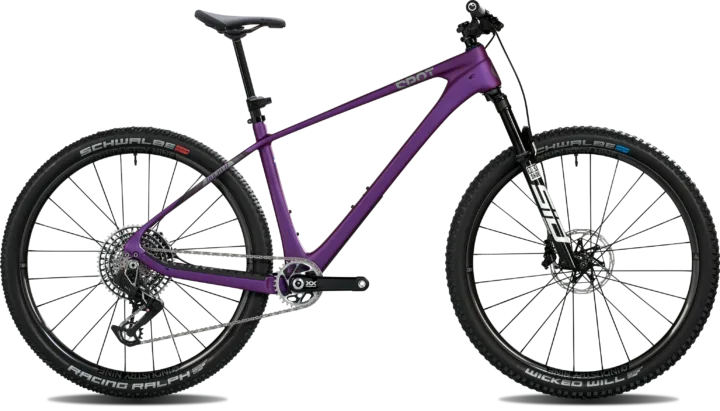

2026 Spot Rocker V2 Geared Frame Only
Original manufacturer specifications including 29 wheels, S: 3.7 | M: 3.7 | L: 3.8 | XL: 3.9 published weight, geometry for 4 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Mountain
- Original MSRP
- $2,699.00
- Sizes
- S, M, L, XL
- Colors
- Black, Twilight Purple
- Weight
- S: 3.7 | M: 3.7 | L: 3.8 | XL: 3.9
- Geometry
- 4 manufacturer sizes · Geometry context
- Record coverage
- 4 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900001739
Frameset
| Frame Construction | Spot carbon frame — Rocker’s all-carbon frame |
|---|---|
| Frame Material | Carbon |
Wheels & Tires
| Wheel Size | 29 |
|---|
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| Seat tube | 380 mm | 410 mm | 460 mm | 510 mm |
| Top tube | 567 mm | 601 mm | 634 mm | 667 mm |
| Head tube | 90 mm | 105 mm | 120 mm | 130 mm |
| Head-tube angle | 67° | 67° | 67° | 67° |
| Seat-tube angle | 75.5° | 75.5° | 75.5° | 75.5° |
| Chainstay / rear center | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1141 mm | 1177 mm | 1213 mm | 1247 mm |
| Bottom-bracket drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Bottom-bracket height | 320 mm | 320 mm | 320 mm | 320 mm |
| Reach | 410 mm | 440 mm | 470 mm | 500 mm |
| Stack | 607 mm | 621 mm | 635 mm | 644 mm |
| Standover height | 741 mm | 741 mm | 782 mm | 782 mm |
| Front center | 696 mm | 732 mm | 768 mm | 802 mm |
Geometry source: Spot first-party size geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
Small geometry
Archive context: Its reach of 410 mm sits toward the shorter end. Its bottom-bracket drop of 50 mm sits toward the deeper-drop end. The head angle of 67° sits toward the steeper end.
Compared with 242 distinct mountain geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Medium geometry
Archive context: Its reach of 440 mm sits toward the shorter end. The head angle of 67° sits toward the steeper end. Its bottom-bracket drop of 50 mm sits toward the deeper-drop end.
Compared with 247 distinct mountain geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Large geometry
Archive context: The head angle of 67° sits toward the steeper end. Its bottom-bracket drop of 50 mm sits toward the deeper-drop end. Its reach of 470 mm sits somewhat shorter than typical.
Compared with 241 distinct mountain geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.X-Large geometry
Archive context: The head angle of 67° sits toward the steeper end. Its bottom-bracket drop of 50 mm sits toward the deeper-drop end. Its wheelbase of 1247 mm sits somewhat shorter than typical.
Compared with 211 distinct mountain geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Used-frameset inspection
If you’re buying this frameset used
Before buying: confirm the serial number and exact model, inspect frame and fork alignment, and inventory every included axle, hanger, clamp, headset part, cable guide and proprietary fitting.
Inspect the frame and fork →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- Included hardwareInventory every axle, hanger, clamp, headset part, cable guide, frame plug and proprietary fitting included with the frameset. Confirm replacement availability before treating a missing small part as insignificant.
- AlignmentSight along the frame and fork from several directions. Confirm that the fork, rear dropouts, head tube and other visible interfaces appear straight; professional measurement is appropriate when alignment cannot be established visually.
Used-frameset inspection checklist 13 universal checks for a record with limited component data Open checklistClose checklist
The archived record does not contain enough component detail for a fully specification-informed frameset checklist. Use these universal checks on the frameset in front of you, inventory every included part and confirm exact interfaces before choosing components.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Spot Rocker V2 Geared Frame Only · Frame/Frameset · Published sizes: S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Spot carbon frame — Rocker’s all-carbon frame
Alignment
Inspect the frame and fork →Frame interfaces
Inspect the bottom bracket and shell →Before accepting the frameset
Inspect the frame and fork →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
