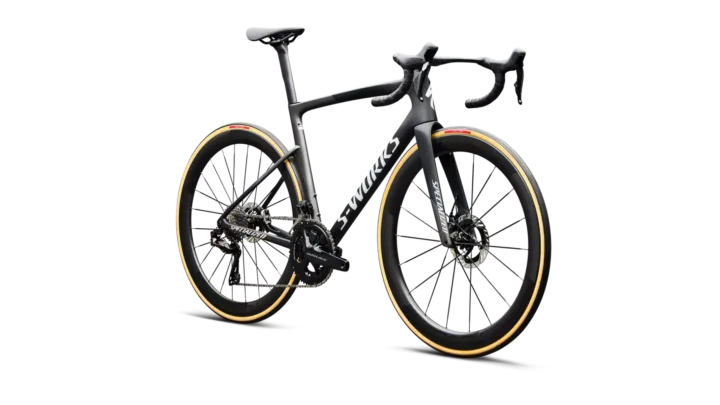

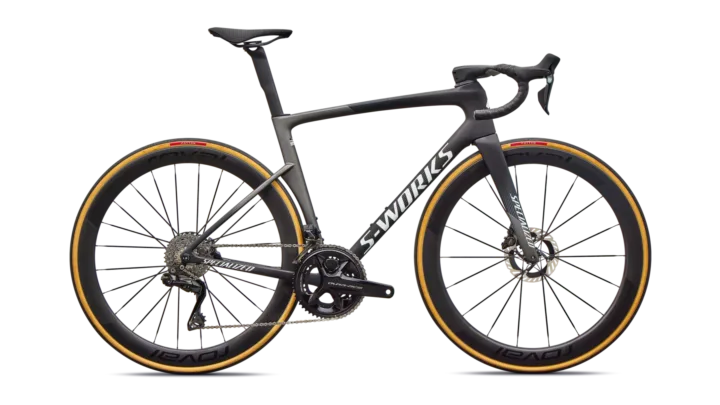

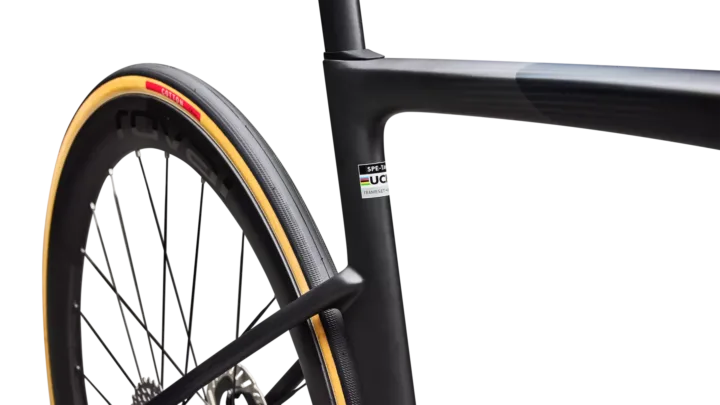

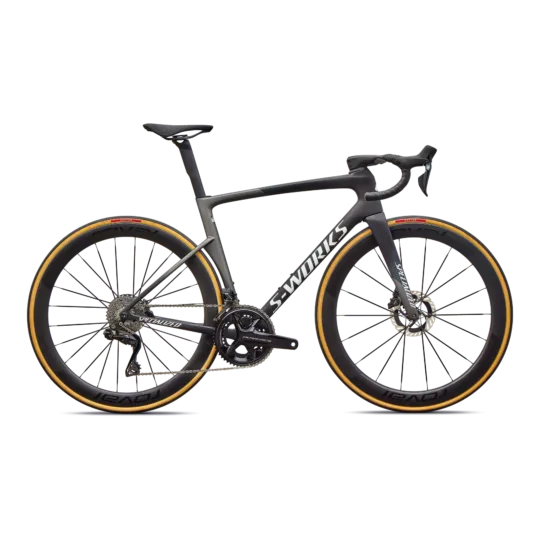

2027 Specialized S-Works Tarmac SL9 - Shimano Dura-Ace Di2
Original manufacturer specifications including 6.6 kg (14 lb, 8.8 oz) published weight, geometry for 7 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2027
- Category
- Road
- Original MSRP
- $13,499.99
- Sizes
- 44, 49, 52, 54, 56, 58, 61
- Colors
- Satin Carbon / Satin White
- Weight
- 6.6 kg (14 lb, 8.8 oz)
- Geometry
- 7 manufacturer sizes · Geometry context
- Record coverage
- 19 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900001141
Frameset
| Frame Construction | S-Works Tarmac SL9 FACT 12r Carbon, Rider First Engineered, Win Tunnel Engineered, Ceramic Speed SLT headset bearings, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | S-Works FACT 12r Carbon, 12x100mm thru-axle, flat-mount disc |
| Fork Material | Carbon Fiber |
Drivetrain
| Shifters | Shimano Dura-Ace ST-R9270 |
|---|---|
| Front Derailleur | Shimano Dura-Ace FD-R9250, braze-on |
| Rear Derailleur | Shimano Dura-Ace RD-R9250, 12-speed |
| Crankset | Shimano Dura-Ace FC-R9200, HollowTech II, 12-speed with 4iiii Precision Pro dual-sided powermeter, 52/36t |
| Bottom Bracket | CeramicSpeed Alpha Bottom Bracket, BSA Threaded Shimano |
| Cassette | Shimano Dura-Ace CS-R9200, 12-speed, 11-34t |
| Chain | Shimano XTR M9100, 12-speed w/ quick link |
Brakes
| Brakes | (F) Shimano Dura-Ace BR-R9270 / (R) Shimano Dura-Ace BR-R9270 |
|---|
Cockpit & Contact Points
| Handlebar | Roval Rapide Cockpit, Integrated Bar/Stem |
|---|---|
| Saddle | S-Works Power with Mirror |
| Seatpost | S-Works Rapide Post, FACT Carbon, 15mm offset |
Wheels & Tires
| Wheels | (F) Roval Rapide CLX III, Tubeless, 21mm internal width carbon rim, 51mm depth, Win Tunnel Engineered, Roval LF18F 18H hub with Sinc Ceramic Bearings, Roval by ARRIS Composite Aero Spoke with Ti end fittings / (R) Roval Rapide CLX III, Tubeless, 21mm internal width carbon rim, 48.5mm depth, Win Tunnel Engineered, Roval LF19-R 24H hub with Sinc Ceramic Bearings, Roval by ARRIS Composite Aero Spoke with Ti end fittings |
|---|---|
| Front Tire | Cotton TLR, 700x30 |
| Rear Tire | Cotton TLR, 700x30 |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | 44 | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|---|
| Seat tube | 433 mm | 445 mm | 456 mm | 473 mm | 494 mm | 515 mm | 545 mm |
| Effective top tube | 496 mm | 509 mm | 531 mm | 540 mm | 563 mm | 577 mm | 595 mm |
| Head tube | 99 mm | 109 mm | 120 mm | 140 mm | 157 mm | 184 mm | 204 mm |
| Head-tube angle | 70.5° | 71.75° | 72.5° | 72.5° | 73.5° | 73.5° | 74° |
| Seat-tube angle | 75.5° | 75.5° | 74° | 74° | 73.5° | 73.5° | 73° |
| Chainstay / rear center | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 970 mm | 973 mm | 975 mm | 986 mm | 991 mm | 1006 mm | 1013 mm |
| Bottom-bracket drop | 74 mm | 74 mm | 74 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Bottom-bracket height | 266 mm | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Reach | 366 mm | 375 mm | 380 mm | 384 mm | 395 mm | 402 mm | 408 mm |
| Stack | 501 mm | 514 mm | 527 mm | 544 mm | 565 mm | 591 mm | 612 mm |
| Standover height | 722 mm | 734 mm | 745 mm | 767 mm | 785 mm | 807 mm | 833 mm |
| Fork offset / rake | 47 mm | 47 mm | 47 mm | 47 mm | 44 mm | 44 mm | 44 mm |
| Front center | 567 mm | 570 mm | 572 mm | 582 mm | 587 mm | 602 mm | 609 mm |
| Trail | 71 mm | 63 mm | 58 mm | 58 mm | 55 mm | 55 mm | 52 mm |
| Fork length / axle-to-crown | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm |
| Crank length | 165 mm | 165 mm | 165 mm | 170 mm | 170 mm | 172.5 mm | 172.5 mm |
| Stem length | 75 mm | 75 mm | 90 mm | 100 mm | 100 mm | 110 mm | 110 mm |
| Handlebar width | 380 mm | 380 mm | 380 mm | 380 mm | 400 mm | 420 mm | 420 mm |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
44 geometry
Archive context: The seat angle of 75.5° sits toward the steeper end. Its wheelbase of 970 mm sits toward the shorter end. Its reach of 366 mm sits toward the shorter end.
Compared with 61 distinct road geometries in the XS-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 44 geometry 49 geometry
Archive context: Its wheelbase of 973 mm sits toward the shorter end. The seat angle of 75.5° sits toward the steeper end. Its stack of 514 mm sits somewhat lower than typical.
Compared with 83 distinct road geometries in the Small-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 49 geometry 52 geometry
Archive context: Its wheelbase of 975 mm sits toward the shorter end. Its stack of 527 mm sits toward the lower end. Its trail of 58 mm sits somewhat lower than typical.
Compared with 84 distinct road geometries in the Medium-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 52 geometry 54 geometry
Archive context: Its trail of 58 mm sits somewhat lower than typical. Its stack of 544 mm sits somewhat lower than typical. Its wheelbase of 986 mm sits somewhat shorter than typical.
Compared with 84 distinct road geometries in the Medium-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 54 geometry 56 geometry
Archive context: Its trail of 55 mm sits toward the lower-trail end. The head angle of 73.5° sits toward the steeper end. Its wheelbase of 991 mm sits toward the shorter end.
Compared with 73 distinct road geometries in the Large-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 56 geometry 58 geometry
Archive context: Its trail of 55 mm sits toward the lower-trail end. The head angle of 73.5° sits toward the steeper end. Its wheelbase of 1006 mm sits toward the shorter end.
Compared with 59 distinct road geometries in the XL-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 58 geometry 61 geometry
Archive context: The head angle of 74° sits toward the steeper end. Its trail of 52 mm sits toward the lower-trail end. Its wheelbase of 1013 mm sits toward the shorter end.
Compared with 37 distinct road geometries in the XXL-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 61 geometry Parts & serviceability
Find replacement parts
Shimano Dura-Ace CS-R9200, 12-speed, 11-34t
Interpreted as Shimano Dura-Ace · 12-speed Exact archived model
(F) Shimano Dura-Ace BR-R9270 / (R) Shimano Dura-Ace BR-R9270
Brake model identified — verify pad shape
CeramicSpeed Alpha Bottom Bracket, BSA Threaded Shimano
Named archived component — verify dimensions
More qualified parts (4)
Shimano Dura-Ace FC-R9200, HollowTech II, 12-speed with 4iiii Precision Pro dual-sided powermeter, 52/36t
Exact archived model
Shimano Dura-Ace FD-R9250, braze-on
Interpreted as Shimano Dura-Ace · 12-speed · Di2 Exact archived model
Shimano Dura-Ace RD-R9250, 12-speed
Interpreted as Shimano Dura-Ace · 12-speed · Di2 Exact archived model
Shimano Dura-Ace ST-R9270
Interpreted as Shimano Dura-Ace · 12-speed · Di2 Exact archived model
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 12-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 20 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2027 Specialized S-Works Tarmac SL9 - Shimano Dura-Ace Di2 · Road · Published sizes: 44, 49, 52, 54, 56, 58, 61
Frame and fork
Inspect the frame and fork →Archived: Frame: S-Works Tarmac SL9 FACT 12r Carbon, Rider First Engineered, Win Tunnel Engineered, Ceramic Speed SLT headset bearings, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout · Fork: S-Works FACT 12r Carbon, 12x100mm thru-axle, flat-mount disc · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Dura-Ace ST-R9270 · Front derailleur: Shimano Dura-Ace FD-R9250, braze-on · Rear derailleur: Shimano Dura-Ace RD-R9250, 12-speed · Crankset: Shimano Dura-Ace FC-R9200, HollowTech II, 12-speed with 4iiii Precision Pro dual-sided powermeter, 52/36t · Bottom bracket: CeramicSpeed Alpha Bottom Bracket, BSA Threaded Shimano · Cassette: Shimano Dura-Ace CS-R9200, 12-speed, 11-34t · Chain: Shimano XTR M9100, 12-speed w/ quick link
Brakes
Inspect the brakes →Archived: Brakes: (F) Shimano Dura-Ace BR-R9270 / (R) Shimano Dura-Ace BR-R9270
Wheels and tires
Check wheels and tires →Archived: Front tire: Cotton TLR, 700x30 · Rear tire: Cotton TLR, 700x30
Controls and contact points
Archived: Handlebar: Roval Rapide Cockpit, Integrated Bar/Stem · Seatpost: S-Works Rapide Post, FACT Carbon, 15mm offset · Saddle: S-Works Power with Mirror
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
