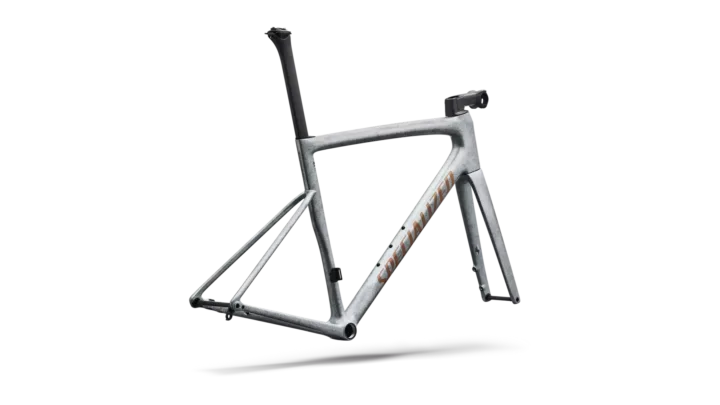

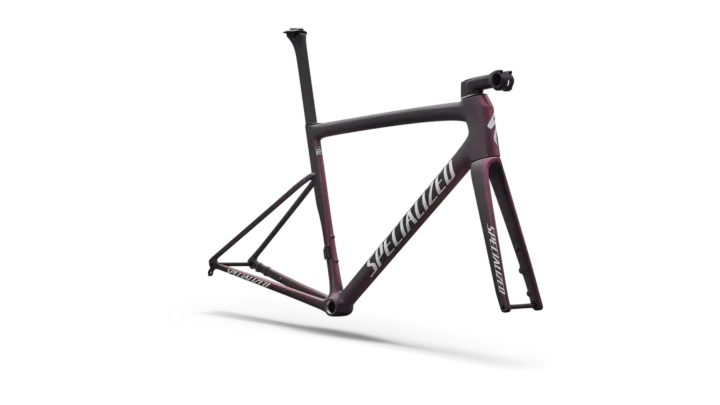

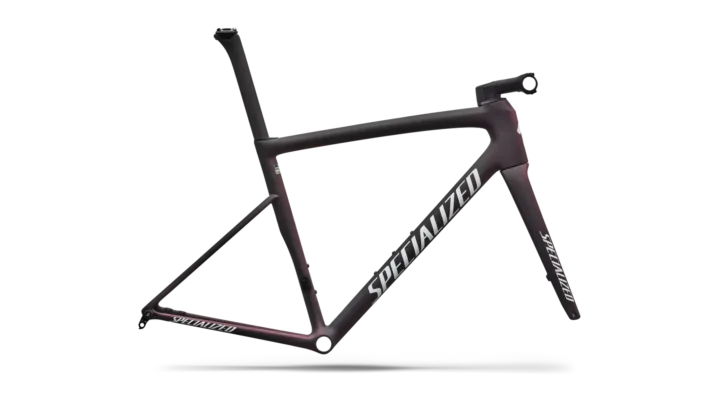

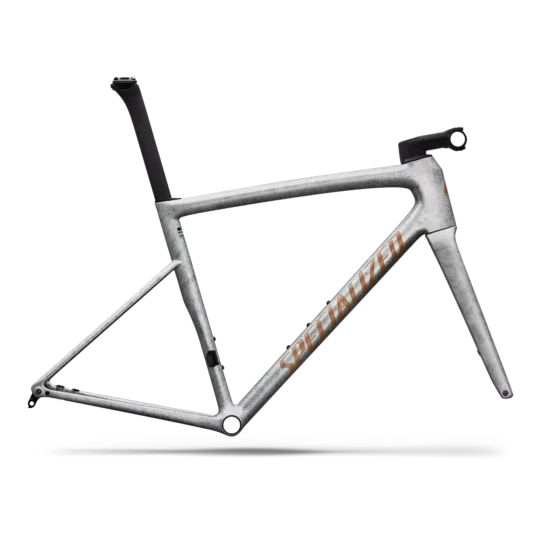

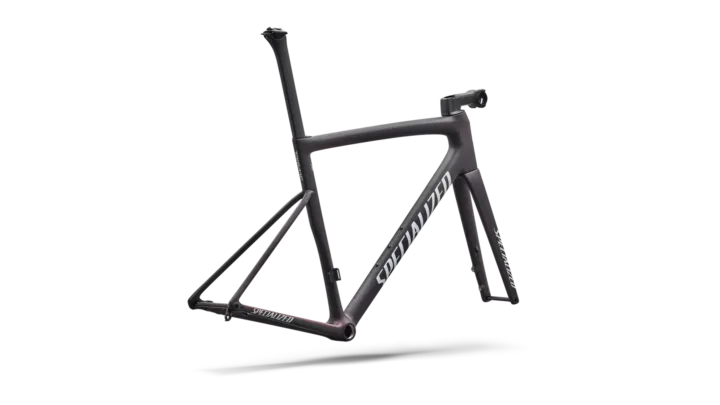

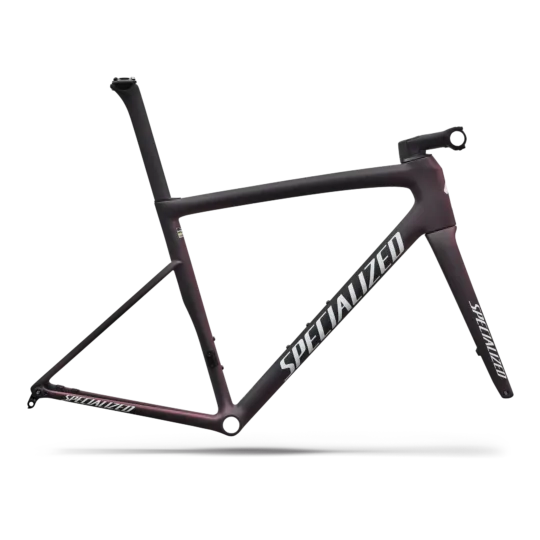

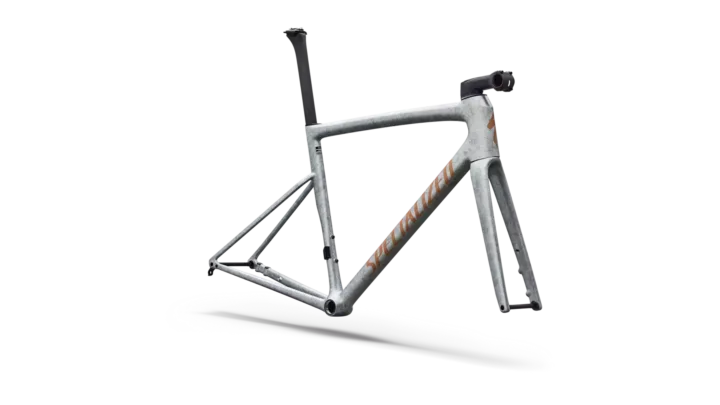

2026 Specialized Tarmac SL8 Frameset - FACT 10r Carbon

Original specifications: 1.69 kg (3 lb, 11.6 oz) published weight · geometry for 7 published sizes.

Share owner experience

At a glance

Model year: 2026
Category: Road
Original MSRP: $3,499.99
Sizes: 44, 49, 52, 54, 56, 58, 61
Colors: Gloss Silver Dust / Shadow Silver Dry Impasto / Photon Orange Tint Over Silver Dust, Satin Carbon / 100% Cqv Reflex Super Red Pearl Front Edge Fade / Metallic White Silver
Weight: 1.69 kg (3 lb, 11.6 oz)
Geometry: 7 manufacturer sizes
In this record: 6 specifications · 8 archived images · original MSRP · geometry
Archive ID: 900001128

Learn more about Specialized →

Original buildCarbon Fiber

Manufacturer catalog

Published sizes and colors

7 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

44495254565861

Published colors

Gloss Silver Dust / Shadow Silver Dry Impasto / Photon Orange Tint Over Silver DustSatin Carbon / 100% Cqv Reflex Super Red Pearl Front Edge Fade / Metallic White Silver

Frameset

Frame Construction	Tarmac SL8 FACT 10r Carbon, Rider First Engineered™, Win Tunnel Engineered, Clean Routing, Threaded BB, 12x142mm thru-axle, flat-mount disc
Frame Material	Carbon Fiber
Fork	FACT 10r Carbon, 12x100mm thru-axle, flat-mount disc
Fork Material	Carbon Fiber

Cockpit & Contact Points

Stem	Tarmac integrated stem, 6-degree
Seatpost	S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset

Geometry

7 sizes · 17 measurements

Frame measurements by size.

Measurement	44	49	52	54	56	58	61
Seat tube	433 mm	445 mm	456 mm	473 mm	494 mm	515 mm	545 mm
Effective top tube	496 mm	509 mm	531 mm	541 mm	563 mm	577 mm	595 mm
Head tube	99 mm	109 mm	120 mm	137 mm	157 mm	184 mm	204 mm
Head-tube angle	70.5°	71.75°	72.5°	73°	73.5°	73.5°	74°
Seat-tube angle	75.5°	75.5°	74°	74°	73.5°	73.5°	73°
Chainstay / rear center	410 mm	410 mm	410 mm	410 mm	410 mm	410 mm	410 mm
Wheelbase	970 mm	973 mm	975 mm	978 mm	991 mm	1006 mm	1013 mm
Bottom-bracket drop	74 mm	74 mm	74 mm	72 mm	72 mm	72 mm	72 mm
Bottom-bracket height	266 mm	266 mm	266 mm	268 mm	268 mm	268 mm	268 mm
Reach	366 mm	375 mm	380 mm	384 mm	395 mm	402 mm	408 mm
Stack	501 mm	514 mm	527 mm	544 mm	565 mm	591 mm	612 mm
Standover height	723 mm	735 mm	746 mm	768 mm	786 mm	808 mm	834 mm
Fork offset / rake	47 mm	47 mm	47 mm	44 mm	44 mm	44 mm	44 mm
Front center	572 mm	574 mm	577 mm	579 mm	592 mm	606 mm	613 mm
Trail	71 mm	63 mm	58 mm	58 mm	55 mm	55 mm	52 mm
Fork length / axle-to-crown	370 mm	370 mm	370 mm	370 mm	370 mm	370 mm	370 mm
Stem length	70 mm	80 mm	90 mm	100 mm	100 mm	110 mm	110 mm

Measurements may vary by configuration, wheel size, or frame setting where noted in the published chart.
