Velopedia Bicycle Archive
2026 Specialized Aethos 2 Frameset - FACT 10r Carbon
Original manufacturer specifications including 1.37 kg (3 lb, 0.3 oz) published weight, geometry for 6 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Road
- Original MSRP
- $3,499.99
- Sizes
- 49, 52, 54, 56, 58, 61
- Colors
- Satin Nebula Metallic, Satin Silver Dust
- Weight
- 1.37 kg (3 lb, 0.3 oz)
- Geometry
- 6 manufacturer sizes · Geometry context
- Record coverage
- 6 preserved details · 6 archived images · original MSRP · preserved geometry
- Archive ID
- 900001085
Frameset
| Frame Construction | Aethos 2 FACT 10r Carbon, Rider First Engineered™, Threaded BB, Hidden Cable Routing, 12x142mm thru-axle, flat-mount disc |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | Aethos 2 FACT 10r Carbon, 12x100mm thru-axle, flat-mount disc |
| Fork Material | Carbon Fiber |
Cockpit & Contact Points
| Seatpost | Roval Alpinist Carbon Seatpost |
|---|
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | 49 · 300mm | 52 · 300mm | 54 · 360mm | 56 · 360mm | 58 · 360mm | 61 · 360mm |
|---|---|---|---|---|---|---|
| Seat tube | 450 mm | 470 mm | 490 mm | 510 mm | 535 mm | 570 mm |
| Effective top tube | 508 mm | 526 mm | 544 mm | 557 mm | 572 mm | 584 mm |
| Head tube | 114 mm | 128 mm | 150 mm | 169 mm | 198 mm | 218 mm |
| Head-tube angle | 71.4° | 72.1° | 72.5° | 73° | 73° | 73.5° |
| Seat-tube angle | 75.5° | 74.5° | 74° | 74° | 74° | 74° |
| Chainstay / rear center | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 978 mm | 981 mm | 992 mm | 998 mm | 1013 mm | 1020 mm |
| Bottom-bracket drop | 76.5 mm | 76.5 mm | 75 mm | 75 mm | 73.5 mm | 73.5 mm |
| Bottom-bracket height | 265.5 mm | 265.5 mm | 267 mm | 267 mm | 268.5 mm | 268.5 mm |
| Reach | 373 mm | 377 mm | 384 mm | 391 mm | 398 mm | 404 mm |
| Stack | 522 mm | 538 mm | 559 mm | 580 mm | 606 mm | 627 mm |
| Standover height | 719 mm | 737 mm | 759 mm | 779 mm | 805 mm | 834 mm |
| Fork offset / rake | 50 mm | 50 mm | 50 mm | 47 mm | 47 mm | 47 mm |
| Front center | 581 mm | 584 mm | 594 mm | 599 mm | 614 mm | 621 mm |
| Trail | 62 mm | 58 mm | 55 mm | 55 mm | 55 mm | 52 mm |
| Fork length / axle-to-crown | 372 mm | 372 mm | 372 mm | 372 mm | 372 mm | 372 mm |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
49 · 300mm geometry
Archive context: The seat angle of 75.5° sits toward the steeper end. Its bottom-bracket drop of 76.5 mm sits toward the deeper-drop end. Its trail of 62 mm sits toward the lower-trail end.
Compared with 64 distinct road geometries in the XS-equivalent size cohort from model years 2024–2027 in the Velopedia archive.52 · 300mm geometry
Archive context: Its bottom-bracket drop of 76.5 mm sits toward the deeper-drop end. Its trail of 58 mm sits somewhat lower than typical. The head angle of 72.1° sits somewhat steeper than typical.
Compared with 88 distinct road geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.54 · 360mm geometry
Archive context: Its trail of 55 mm sits toward the lower-trail end. Its bottom-bracket drop of 75 mm sits somewhat deeper than typical. The chainstay of 410 mm sits somewhat shorter than typical.
Compared with 88 distinct road geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.56 · 360mm geometry
Archive context: Its trail of 55 mm sits toward the lower-trail end. Its bottom-bracket drop of 75 mm sits toward the deeper-drop end. The seat angle of 74° sits toward the steeper end.
Compared with 77 distinct road geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.58 · 360mm geometry
Archive context: Its trail of 55 mm sits toward the lower-trail end. The seat angle of 74° sits toward the steeper end. Its bottom-bracket drop of 73.5 mm sits somewhat deeper than typical.
Compared with 63 distinct road geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.61 · 360mm geometry
Archive context: The seat angle of 74° sits toward the steeper end. Its trail of 52 mm sits toward the lower-trail end. Its bottom-bracket drop of 73.5 mm sits somewhat deeper than typical.
Compared with 39 distinct road geometries in the XXL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Parts & serviceability
Find replacement parts
Roval Alpinist Carbon Seatpost
Named archived component — verify dimensions
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-frameset inspection
If you’re buying this frameset used
Before buying: confirm the serial number and exact model, inspect frame and fork alignment, and inventory every included axle, hanger, clamp, headset part, cable guide and proprietary fitting.
Inspect the frame and fork →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- Included hardwareInventory every axle, hanger, clamp, headset part, cable guide, frame plug and proprietary fitting included with the frameset. Confirm replacement availability before treating a missing small part as insignificant.
- AlignmentSight along the frame and fork from several directions. Confirm that the fork, rear dropouts, head tube and other visible interfaces appear straight; professional measurement is appropriate when alignment cannot be established visually.
Used-frameset inspection checklist 14 universal checks for a record with limited component data Open checklistClose checklist
The archived record does not contain enough component detail for a fully specification-informed frameset checklist. Use these universal checks on the frameset in front of you, inventory every included part and confirm exact interfaces before choosing components.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Specialized Aethos 2 Frameset - FACT 10r Carbon · Road · Published sizes: 49, 52, 54, 56, 58, 61
Frame and fork
Inspect the frame and fork →Archived: Frame: Aethos 2 FACT 10r Carbon, Rider First Engineered™, Threaded BB, Hidden Cable Routing, 12x142mm thru-axle, flat-mount disc · Fork: Aethos 2 FACT 10r Carbon, 12x100mm thru-axle, flat-mount disc · Carbon Fiber
Alignment
Inspect the frame and fork →Frame interfaces
Inspect the bottom bracket and shell →Before accepting the frameset
Inspect the frame and fork →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.

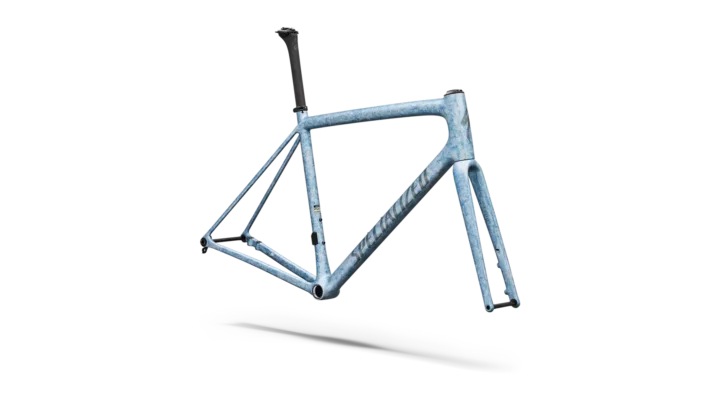

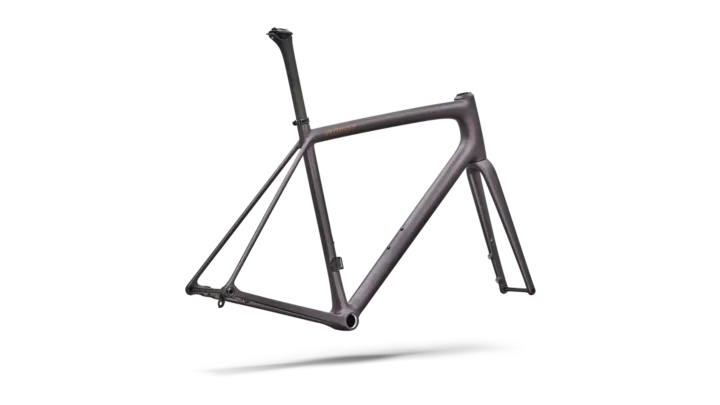

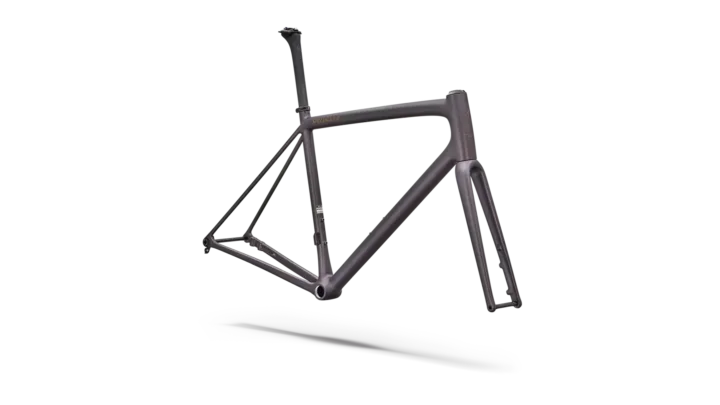

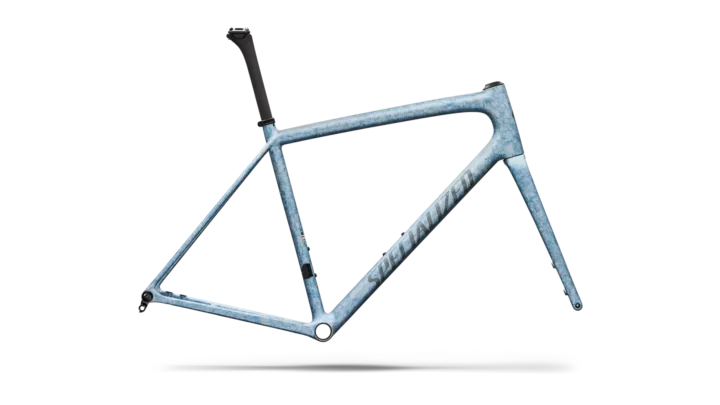

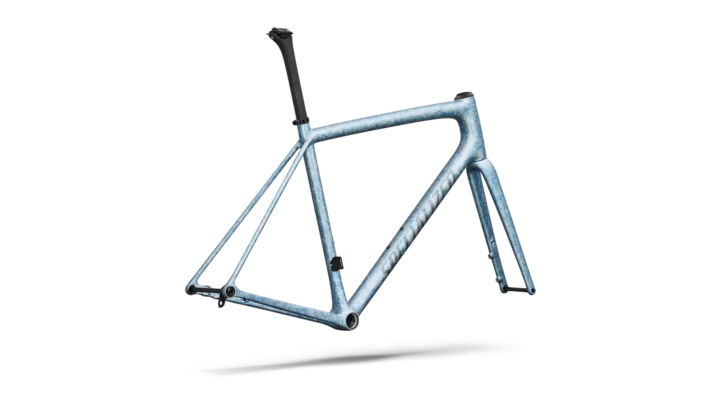

Gallery
Current market
Snapshot not yet availableProtected live updateReady after page interactionAutomated crawlers do not trigger marketplace requests.
Move, scroll, tap or type to start the protected update.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
