DEMO 2026 56cm Specialized Allez Comp E5 R7120 Alloy Disc Road Bike
Used · Fixed price · USD 1443.75
Velopedia Bicycle Archive

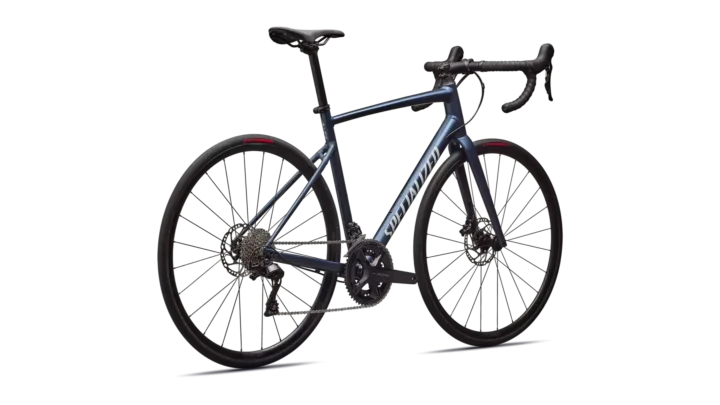

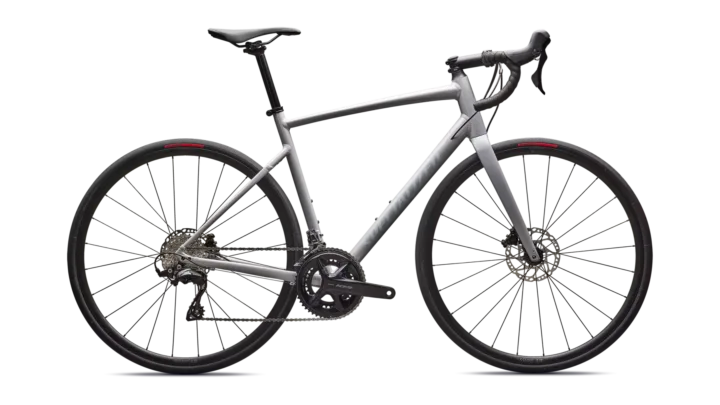

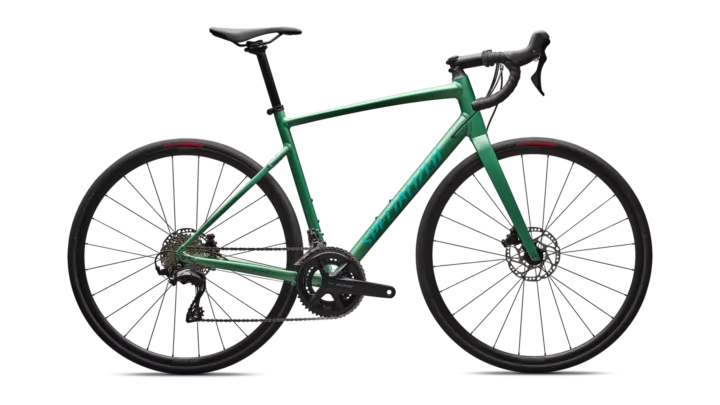

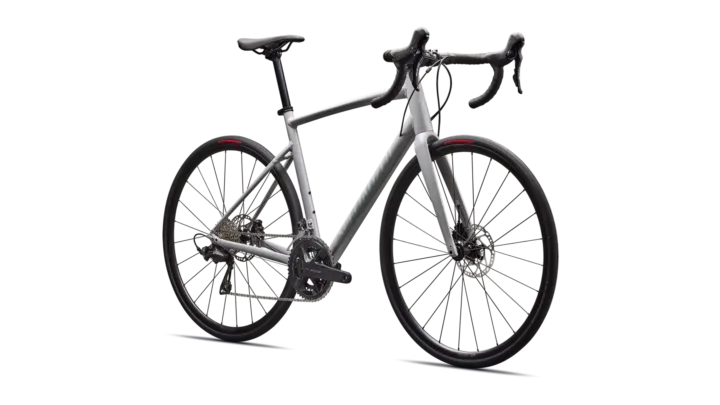

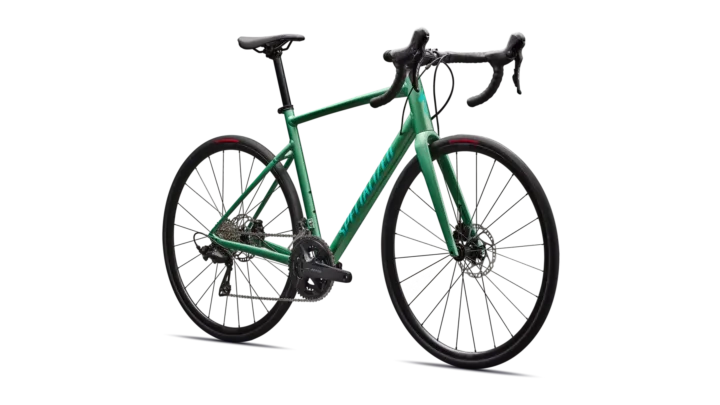

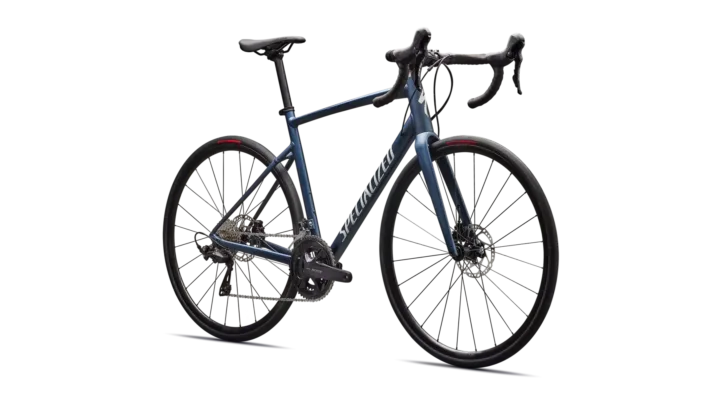

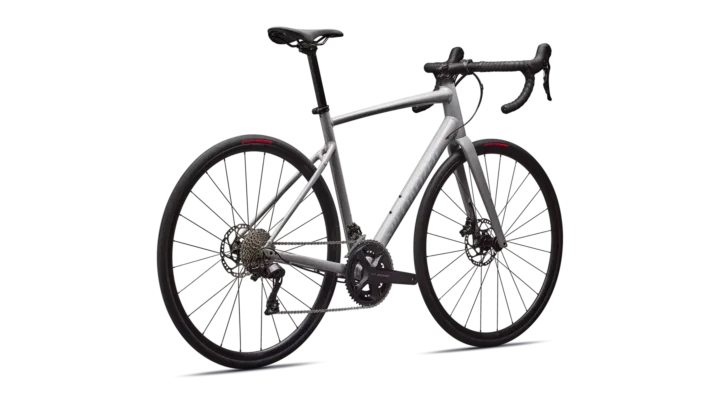

2026 Specialized Allez Comp
Original manufacturer specifications including 9.09 kg (20 lb, 0.6 oz) published weight, geometry for 7 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Road
- Original MSRP
- $2,099.99
- Sizes
- 44, 49, 52, 54, 56, 58, 61
- Colors
- Cast Blue Metallic, Dolomite Metallic, Oasis Tint Over Silver Dust
- Weight
- 9.09 kg (20 lb, 0.6 oz)
- Geometry
- 7 manufacturer sizes · Geometry context
- Record coverage
- 20 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900001080
Model history 5 other years
Frameset
| Frame Construction | Specialized E5 Premium Aluminum, flat mount disc, fully manipulated tubing w/ SmoothWelds, internal cable routing, threaded BB, 12x142mm thru-axle |
|---|---|
| Frame Material | Aluminum |
| Fork | Specialized FACT full carbon, flat mount disc, 1-1/8" to 1-3/8" taper, fender eyelets, 12x100mm thru-axle |
| Fork Material | Carbon Fiber |
Drivetrain
| Shifters | Shimano 105 R7120, 12 speed Mechanical |
|---|---|
| Front Derailleur | Shimano 105, Braze-on |
| Rear Derailleur | Shimnao 105 R7100, 12-Speed Mechanical |
| Crankset | Shimano 105, 12-speed Hollowtech 2, 50/34t |
| Bottom Bracket | Shimano Threaded BSA BB |
| Cassette | Shimano 105, 12-speed, 11-34t |
| Chain | Shimano SLX CN-M7100, 12-speed |
Brakes
| Brakes | (F) Shimano 105, Hydraulic disc, 160mm rotor / (R) Shimano 105, Hydraulic disc, 160mm rotor |
|---|
Cockpit & Contact Points
| Handlebar | Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp |
|---|---|
| Stem | 3D-forged alloy, 31.8mm, 7-degree rise |
| Saddle | Body Geometry Bridge Saddle, steel rails |
| Seatpost | Alloy, 2-bolt Clamp, 12mm offset, 27.2mm, anti-corrosion hardware |
Wheels & Tires
| Wheels | (F) DT R470 Disc / (R) DT R470 Disc |
|---|---|
| Front Tire | Turbo Pro, 700x30 |
| Rear Tire | Turbo Pro, 700x30 |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | 44 | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|---|
| Seat tube | 430 mm | 460 mm | 490 mm | 510 mm | 530 mm | 550 mm | 580 mm |
| Effective top tube | 493 mm | 500 mm | 530 mm | 541 mm | 556 mm | 569 mm | 586 mm |
| Head tube | 110 mm | 125 mm | 140 mm | 155 mm | 175 mm | 195 mm | 230 mm |
| Head-tube angle | 69.5° | 70.5° | 71° | 72° | 72.5° | 73° | 73° |
| Seat-tube angle | 75.25° | 75.25° | 73.25° | 73.25° | 73.25° | 73.25° | 73.25° |
| Chainstay / rear center | 420 mm | 420 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 984 mm | 984 mm | 995 mm | 998 mm | 1008 mm | 1017 mm | 1033 mm |
| Bottom-bracket drop | 77 mm | 77 mm | 77 mm | 76 mm | 76 mm | 74.5 mm | 74.5 mm |
| Bottom-bracket height | 273 mm | 273 mm | 273 mm | 274 mm | 274 mm | 275.5 mm | 275.5 mm |
| Reach | 356 mm | 359 mm | 364 mm | 370 mm | 378 mm | 386 mm | 392 mm |
| Stack | 519 mm | 536 mm | 552 mm | 569 mm | 590 mm | 610 mm | 643 mm |
| Standover height | 715 mm | 739 mm | 761 mm | 781 mm | 801 mm | 821 mm | 852 mm |
| Fork offset / rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Front center | 576 mm | 577 mm | 583 mm | 585 mm | 594 mm | 603 mm | 619 mm |
| Trail | 74 mm | 71 mm | 64 mm | 61 mm | 58 mm | 58 mm | 81 mm |
| Fork length / axle-to-crown | 378 mm | 378 mm | 378 mm | 378 mm | 378 mm | 378 mm | 378 mm |
| Crank length | 165 mm | 165 mm | 170 mm | 172.5 mm | 172.5 mm | 175 mm | 175 mm |
| Stem length | 70 mm | 80 mm | 90 mm | 100 mm | 100 mm | 110 mm | 110 mm |
| Handlebar width | 360 mm | 380 mm | 400 mm | 420 mm | 420 mm | 440 mm | 440 mm |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
44 geometry
Archive context: The head angle of 69.5° sits toward the slacker end. Its reach of 356 mm sits toward the shorter end. Its trail of 74 mm sits toward the higher-trail end.
Compared with 64 distinct road geometries in the XS-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 44 geometry 49 geometry
Archive context: Its reach of 359 mm sits toward the shorter end. The head angle of 70.5° sits toward the slacker end. Its trail of 71 mm sits toward the higher-trail end.
Compared with 88 distinct road geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 49 geometry 52 geometry
Archive context: Its reach of 364 mm sits toward the shorter end. The head angle of 71° sits toward the slacker end. The chainstay of 425 mm sits toward the longer rear-center end.
Compared with 88 distinct road geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 52 geometry 54 geometry
Archive context: Its reach of 370 mm sits toward the shorter end. The chainstay of 425 mm sits toward the longer rear-center end. Its bottom-bracket drop of 76 mm sits toward the deeper-drop end.
Compared with 88 distinct road geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 54 geometry 56 geometry
Archive context: Its reach of 378 mm sits toward the shorter end. Its bottom-bracket drop of 76 mm sits toward the deeper-drop end. The chainstay of 425 mm sits toward the longer rear-center end.
Compared with 77 distinct road geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 56 geometry 58 geometry
Archive context: Its reach of 386 mm sits toward the shorter end. The chainstay of 425 mm sits toward the longer rear-center end. Its bottom-bracket drop of 74.5 mm sits toward the deeper-drop end.
Compared with 63 distinct road geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 58 geometry 61 geometry
Archive context: Its trail of 81 mm sits toward the higher-trail end. Its reach of 392 mm sits toward the shorter end. The chainstay of 425 mm sits toward the longer rear-center end.
Compared with 39 distinct road geometries in the XXL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 61 geometry Parts & serviceability
Find replacement parts
Shimano SLX CN-M7100, 12-speed
Interpreted as Shimano SLX · 12-speed Exact archived model
Shimano 105, 12-speed, 11-34t
Interpreted as Shimano 105 · 12-speed Component family — verify exact version
Shimano Threaded BSA BB
Named archived component — verify dimensions
More qualified parts (5)
Shimano 105, 12-speed Hollowtech 2, 50/34t
Component family — verify exact version
Shimano 105, Braze-on
Interpreted as Shimano 105 · 12-speed · mechanical Named component · published drivetrain speed — verify exact version
Shimano 105 R7120, 12 speed Mechanical
Interpreted as Shimano 105 · 12-speed · mechanical Exact archived model
Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp
Named archived component — verify dimensions
27.2 mm seatpost
Published diameter — verify length and setback
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesBoth levers should feel firm and return cleanly. Check for fluid around the levers and calipers, inspect pad thickness and contamination, and look for worn or bent rotors.Inspect the brakes →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 12-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Specialized Allez Comp · Road · Published sizes: 44, 49, 52, 54, 56, 58, 61
Frame and fork
Inspect the frame and fork →Archived: Frame: Specialized E5 Premium Aluminum, flat mount disc, fully manipulated tubing w/ SmoothWelds, internal cable routing, threaded BB, 12x142mm thru-axle · Fork: Specialized FACT full carbon, flat mount disc, 1-1/8" to 1-3/8" taper, fender eyelets, 12x100mm thru-axle · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano 105 R7120, 12 speed Mechanical · Front derailleur: Shimano 105, Braze-on · Rear derailleur: Shimnao 105 R7100, 12-Speed Mechanical · Crankset: Shimano 105, 12-speed Hollowtech 2, 50/34t · Bottom bracket: Shimano Threaded BSA BB · Cassette: Shimano 105, 12-speed, 11-34t · Chain: Shimano SLX CN-M7100, 12-speed
Brakes
Inspect the brakes →Archived: Brakes: (F) Shimano 105, Hydraulic disc, 160mm rotor / (R) Shimano 105, Hydraulic disc, 160mm rotor
Wheels and tires
Check wheels and tires →Archived: Wheels: (F) DT R470 Disc / (R) DT R470 Disc · Front tire: Turbo Pro, 700x30 · Rear tire: Turbo Pro, 700x30
Controls and contact points
Archived: Handlebar: Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp · Stem: 3D-forged alloy, 31.8mm, 7-degree rise · Seatpost: Alloy, 2-bolt Clamp, 12mm offset, 27.2mm, anti-corrosion hardware · Saddle: Body Geometry Bridge Saddle, steel rails
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery
Recently checked marketplace data
Market Snapshot
Velopedia found 2 close used listings. That is not enough to publish a responsible market indication.
Evidence standard
Fixed-price and Best Offer item prices only
Shipping and tax excluded
Active asks, not completed sales
Model-year coverage: 1 of 2 qualifying asking-price listings explicitly state 2026. There are not yet three year-confirmed used listings, so the used summary is labeled as broader model-family context.
Affiliate disclosure: As an eBay Partner, Velopedia may be compensated if you make a purchase through these links.
Qualified asking evidence22 high-confidence matches
Model-family used askingInsufficient sample2 close used listings found.
Model-family new askingNo listingsNo close matches in this condition.
Specialized Allez Comp E5 49cm / XS Custom Build Road Bicycle Loaded! Extras!!!
Used · Fixed price · offers accepted · USD 1110.00
See all current matches for this bicycle →
Listings shown have not passed their eBay-supplied end time. Velopedia rechecks matched bicycles on a protected weekly cycle; availability can still change between checks. Price calculations use active fixed-price and Best Offer item prices before shipping and tax. Auction bids, auction-only prices, classified ads, lower-confidence Review candidates and ended listings are excluded. These observations are not completed-sale prices, a certified appraisal or a guarantee of value.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
