Velopedia Bicycle Archive

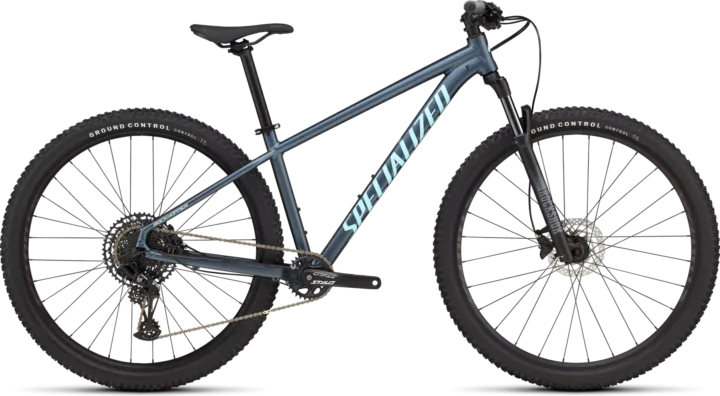

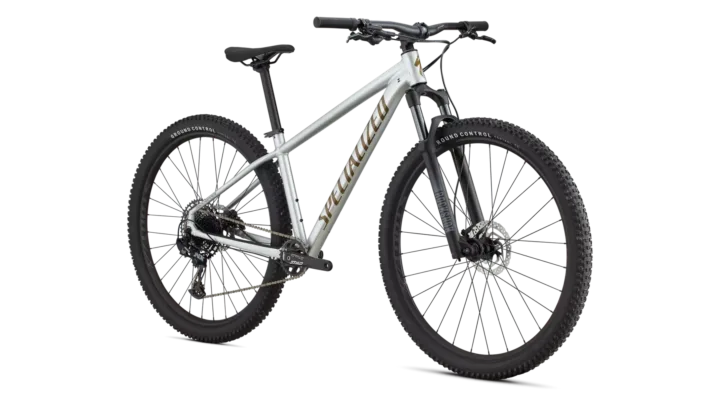

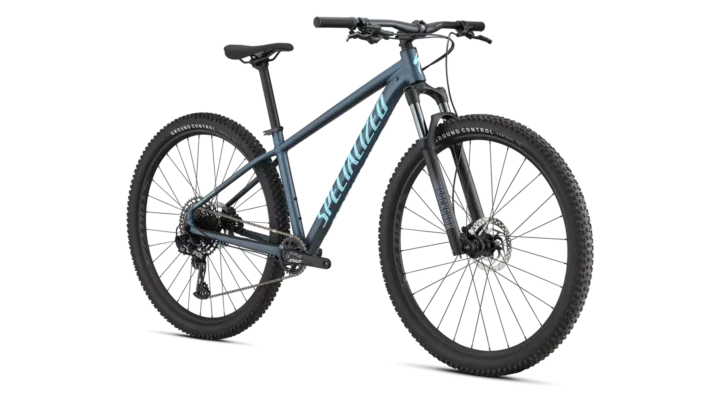

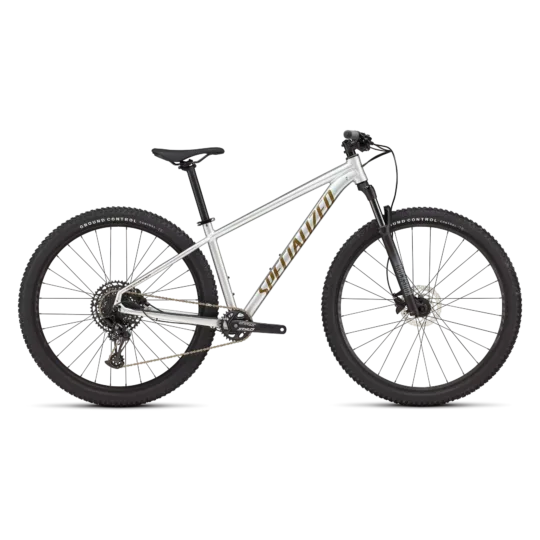

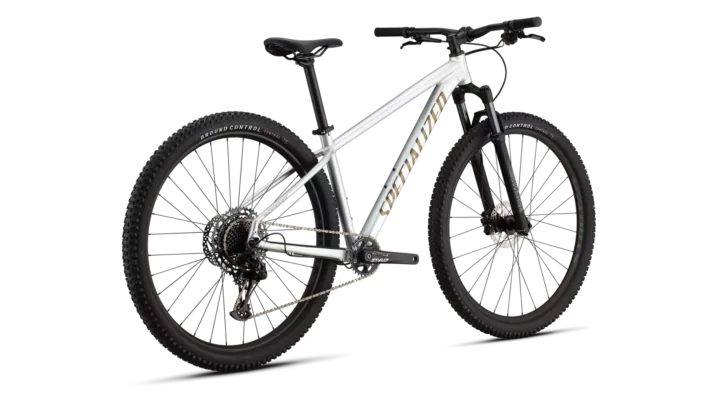

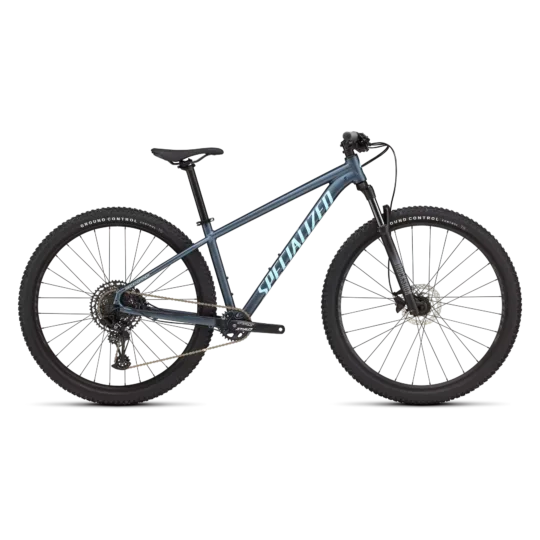

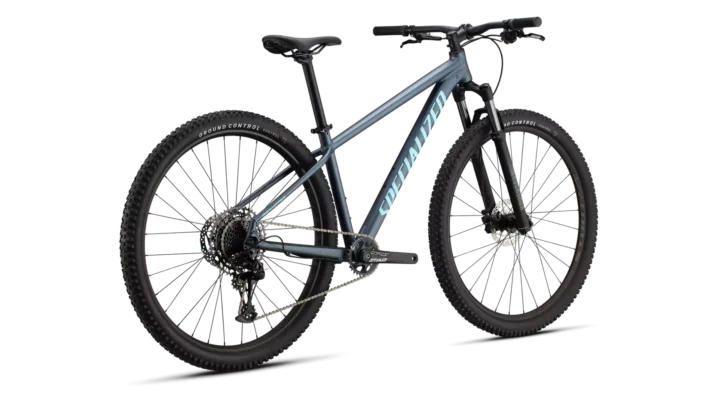

2025 Specialized Rockhopper Expert

Mountain bicycle from the Velopedia specification archive.

Share owner experience

Original MSRP
$1,299.99
Sizes
XS - 27.5; S - 27.5; M - 27.5; S - 29; M - 29; L - 29; XL - 29; XXL - 29
Colors
Gloss Silver Dust / Satin Burnt Gold Metallic; Satin Cast Blue Metallic / Gloss Astral Blue
Weight
13.12 kg (28 lb, 14.8 oz)
Geometry
8 manufacturer sizes
Archive ID
900000953

Recently checked market

0 close matches
Observed used market No listingsNo close used matches in the latest snapshot.
New asking No listingsNo close matches in this condition.
View market details

Move, scroll, tap or type to start the protected update.

Velopedia analysis

What the specifications mean

Derived from the archived manufacturer recordHow Velopedia reads these specifications →

Suspension is concentrated at the fork, so fork setup and rear-tire pressure are the main tools for balancing front and rear behavior. Both 27.5- and 29-inch wheels appear in the record, but it does not establish a mixed front/rear build; confirm the correct diameter for the selected frame size. The 455% cassette range describes the available gearing more clearly than the component-group name alone.

Suspension setup Front only Fork settings affect the front while rear-wheel behavior remains dependent on tire and wheel setup.
Wheel system 27.5 / 29 options Both diameters are documented, but the archive does not prove a mixed front/rear setup.
Gearing 455% cassette range Calculated from the published 11–50-tooth sprocket span.
Brake service Hydraulic disc Pad and rotor condition plus the correct bleed fluid are the primary service checks.

Used-bike inspection

If you’re buying this bike used

Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.

Follow the full used-bike inspection order →
  • FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
  • BrakesBoth levers should feel firm and return cleanly. Check for fluid around the levers and calipers, inspect pad thickness and contamination, and look for worn or bent rotors.Inspect the brakes →
  • SuspensionAsk when the fork was last serviced. Check the stanchions for damage, look for oil at the seals and make sure the fork moves smoothly without bushing play.Evaluate the suspension →
  • DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 12-speed system.Check drivetrain wear →
  • Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
Bike-specific inspection checklist 21 checks based on 6 archived component groups Open checklistClose checklist
0 of 21 checked Progress stays in this browser for this bike.

This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.

Archived: 2025 Specialized Rockhopper Expert · Mountain · Published sizes: XS - 27.5; S - 27.5; M - 27.5; S - 29; M - 29; L - 29; XL - 29; XXL - 29

Archived: Frame: Specialized A1 premium butted alloy, zero-stack head tube, internal cable routing, 135x9mm forged dropouts, chainstay-mounted disc brake, replaceable alloy derailleur hanger, stealth rack mounts, dropper post compatible · Fork: RockShox Judy, Solo Air, Turnkey damper, 46mm offset, QR, 80/90/100mm travel (size-specific), alloy steerer · Aluminum

Archived: Fork: RockShox Judy, Solo Air, Turnkey damper, 46mm offset, QR, 80/90/100mm travel (size-specific), alloy steerer

Archived: Shifters: SRAM SX Eagle, trigger, 12-speed · Rear derailleur: SRAM NX Eagle, 12-speed · Crankset: Stylo Cranks · Bottom bracket: Square-tapered, 73mm, internal bearings, 122.5mm spindle · Cassette: SRAM PG-1210 Eagle, 11-50t · Chain: SRAM SX Eagle, 12-speed

Archived: Brakes: (F) Shimano BR-MT200, hydraulic disc, XS-M 27.5: 160mm, M-XXL 29: 180mm / (R) Shimano BR-MT200, hydraulic disc, 160mm

Archived: Wheel size: 27.5; 29 · Rims: Specialized Alloy, hookless, Tubeless ready, 25mm inner width · Hubs: (F) Formula DC-20, 6-Bolt, disc, 100x9mm spacing, quick-release / (R) Formula DC-22, 6-Bolt freehub, disc, 135x9mm spacing, quick-release · Front tire: Ground Control 2BR 27.5/29X2.35 · Rear tire: Ground Control 2BR 27.5/29X2.35

Controls and contact points

Archived: Handlebar: Specialized, alloy, 9-degree backsweep, 15mm rise, 31.8mm · Stem: Stout 3D-forged alloy, 31.8mm, 6-degree rise · Seatpost: Alloy, 2-bolt clamp, 30.9mm · Saddle: Bridge Sport, Steel rails, 155/143mm · Pedals: Specialized Body Geometry Fitness, Platform, Plastic

Before and during the test ride

Follow the full used-bike inspection order →

Interpretation based on the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.

My Garage

Velopedia

Enter your email and Velopedia will send a private sign-in link. No password required.

Have you owned this bike?Help preserve its real-world history by sharing your owner experience.

Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.

After submitting, use the verification link sent to your email. Nothing appears publicly until Velopedia approves it.

Already contributed? Send me a fresh private edit link

For privacy, Velopedia shows the same confirmation whether or not an experience exists.

Frameset

Frame ConstructionSpecialized A1 premium butted alloy, zero-stack head tube, internal cable routing, 135x9mm forged dropouts, chainstay-mounted disc brake, replaceable alloy derailleur hanger, stealth rack mounts, dropper post compatible
Frame MaterialAluminum
ForkRockShox Judy, Solo Air, Turnkey damper, 46mm offset, QR, 80/90/100mm travel (size-specific), alloy steerer
Fork MaterialAluminum

Drivetrain

ShiftersSRAM SX Eagle, trigger, 12-speed
Rear DerailleurSRAM NX Eagle, 12-speed
CranksetStylo Cranks
Bottom BracketSquare-tapered, 73mm, internal bearings, 122.5mm spindle
BB Shell Width73 mm
CassetteSRAM PG-1210 Eagle, 11-50t
ChainSRAM SX Eagle, 12-speed
PedalsSpecialized Body Geometry Fitness, Platform, Plastic

Brakes

Brakes(F) Shimano BR-MT200, hydraulic disc, XS-M 27.5: 160mm, M-XXL 29: 180mm / (R) Shimano BR-MT200, hydraulic disc, 160mm

Cockpit & Contact Points

HandlebarSpecialized, alloy, 9-degree backsweep, 15mm rise, 31.8mm
StemStout 3D-forged alloy, 31.8mm, 6-degree rise
SaddleBridge Sport, Steel rails, 155/143mm
SeatpostAlloy, 2-bolt clamp, 30.9mm

Wheels & Tires

Hubs(F) Formula DC-20, 6-Bolt, disc, 100x9mm spacing, quick-release / (R) Formula DC-22, 6-Bolt freehub, disc, 135x9mm spacing, quick-release
RimsSpecialized Alloy, hookless, Tubeless ready, 25mm inner width
SpokesStainless, 14g
Front TireGround Control 2BR 27.5/29X2.35
Rear TireGround Control 2BR 27.5/29X2.35
Wheel Size27.5; 29

Size-specific frame data

Geometry

8 sizes · 19 measurements

Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.

MeasurementXS - 27.5S - 27.5M - 27.5S - 29M - 29L - 29XL - 29XXL - 29
Seat tube310 mm350 mm400 mm360 mm400 mm450 mm500 mm560 mm
Effective top tube541 mm565 mm589 mm586 mm608 mm630 mm654 mm679 mm
Head tube95 mm100 mm105 mm95 mm95 mm105 mm120 mm135 mm
Head-tube angle68°68°68°68.5°68.5°68.5°68.5°68.5°
Seat-tube angle73.5°73.5°73.5°73.5°73.5°73.5°73.5°73.5°
Chainstay / rear center440 mm440 mm440 mm440 mm440 mm440 mm440 mm440 mm
Wheelbase1067 mm1092 mm1118 mm1105 mm1128 mm1152 mm1178 mm1203 mm
Bottom-bracket drop43 mm43 mm43 mm62 mm62 mm62 mm62 mm62 mm
Bottom-bracket height310 mm310 mm310 mm310 mm310 mm310 mm310 mm310 mm
Reach375 mm395 mm415 mm405 mm425 mm445 mm465 mm485 mm
Stack559 mm573 mm589 mm607 mm616 mm626 mm640 mm654 mm
Fork offset / rake42 mm42 mm42 mm46 mm46 mm46 mm46 mm46 mm
Front center630 mm656 mm682 mm672 mm696 mm719 mm745 mm770 mm
Trail97 mm97 mm97 mm97 mm97 mm97 mm97 mm97 mm
Fork length / axle-to-crown475 mm485 mm495 mm505 mm515 mm515 mm515 mm515 mm
Crank length165 mm170 mm170 mm170 mm170 mm175 mm175 mm175 mm
Stem length35 mm45 mm60 mm45 mm60 mm60 mm70 mm70 mm
Handlebar width700 mm720 mm740 mm720 mm740 mm740 mm740 mm740 mm
Wheel size27.5in27.5in27.5in29in29in29in29in29in

Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
