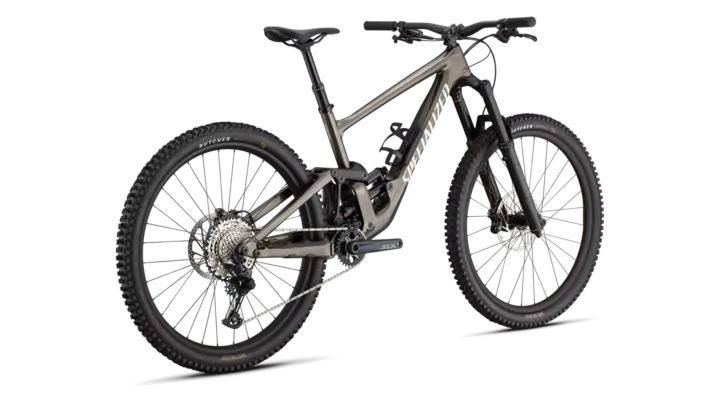

2025 Specialized Enduro Comp
Original specifications: 16.21kg (35 lb, 11.8 oz) published weight · geometry for 4 published sizes.
Planning to sell? Draft your listing
At a glance
Archive #900001008- Model year
- 2025
- Category
- Mountain
- Original MSRP
- $4,999.99
- Sizes
- S2, S3, S4, S5
- Colors
- Gloss Gunmetal / White Mountains
- Weight
- 16.21kg (35 lb, 11.8 oz)
- Geometry
- 4 manufacturer sizes
- In this record
- 20 specifications · 6 archived images · original MSRP · geometry
Model history 10 other years
Browse other years
Compare side by side
Identification clues
2025 archived details
- Published colors
- Gloss Gunmetal / White Mountains
- Frame
- Carbon Fiber
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildCarbon Fiber
Frameset
| Frame Construction | FACT 11m carbon chassis and rear-end, 29 S-Sizing Enduro Race Geometry, SRAM Universal Derailleur Hanger, SWAT™ Door integration, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, 170mm of travel |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | RockShox Zeb Select, Charger RC damper, 15x110mm, 44mm offset, 170mm of travel |
| Rear Shock | RockShox Vivid Select Plus, Ride Dynamics Trail Tune, adjustable hydraulic bottom out, adjustable rebound and compression, 205x60, Trunnion |
Drivetrain
| Shifters | Shimano SLX, M7100, 12spd |
|---|---|
| Rear Derailleur | Shimano SLX, M7100, SGS, 12-speed |
| Crankset | Shimano SLX, M7120, 30T ring, 52mm chainline, S2-S3:165mm, S4-S5: 170mm |
| Bottom Bracket | Shimano, BB-MT801, Threaded |
| Cassette | Shimano SLX, CS-M7100, 12-speed, 10-51t |
| Chain | Shimano SLX, M7100, 12-speed |
Brakes
| Brakes | (F) TRP Trail EVO, 4-piston caliper, hydraulic disc, 220mm / (R) TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm |
|---|
Cockpit & Contact Points
| Handlebar | Speciailized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise. S2: 780mm, S3-S5:800mm width |
|---|---|
| Stem | Alloy Trail Stem, 35mm bar bore |
| Saddle | Bridge Comp, Hollow Cr-mo rails, S2: 155mm, S3-S5: 143mm |
| Seatpost | X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SRL LE lever, 34.9mm, S2-S3:150mm, S4-S5:170mm |
Wheels & Tires
| Hubs | (F) Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h / (R) Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h |
|---|---|
| Rims | Specialized, hookless alloy, 30mm inner width, tubeless ready |
| Spokes | DT Swiss Industry |
| Front Tire | Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" |
| Rear Tire | Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" |
No specifications match. Try a component name or clear your search.
Geometry
Frame measurements by size.
Frame diagram
Select an available measurement to locate it on the frame.
All geometry measurements4 sizes · 18 measurements
| Measurement | S2 | S3 | S4 | S5 |
|---|---|---|---|---|
| Seat tube | 400 mm | 420 mm | 440 mm | 465 mm |
| Effective top tube | 591 mm | 619 mm | 644 mm | 670 mm |
| Head tube | 95 mm | 100 mm | 110 mm | 120 mm |
| Head-tube angle | 63.9° | 63.9° | 63.9° | 63.9° |
| Seat-tube angle | 76° | 76° | 76° | 76° |
| Chainstay / rear center | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1217 mm | 1246 mm | 1274 mm | 1302 mm |
| Bottom-bracket drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Bottom-bracket height | 347 mm | 347 mm | 347 mm | 347 mm |
| Reach | 437 mm | 464 mm | 487 mm | 511 mm |
| Stack | 616 mm | 620 mm | 629 mm | 638 mm |
| Fork offset / rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Front center | 777 mm | 806 mm | 833 mm | 862 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm |
| Fork length / axle-to-crown | 581 mm | 581 mm | 581 mm | 581 mm |
| Crank length | 165 mm | 165 mm | 170 mm | 170 mm |
| Stem length | 40 mm | 40 mm | 40 mm | 40 mm |
| Handlebar width | 780 mm | 800 mm | 800 mm | 800 mm |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
CS-M7100, 12-speed, 10-51t

Shimano Deore CS-M6200 12-Speed Cassette Black, 10-51t, HG
Replacement option
M7100, SGS, 12-speed

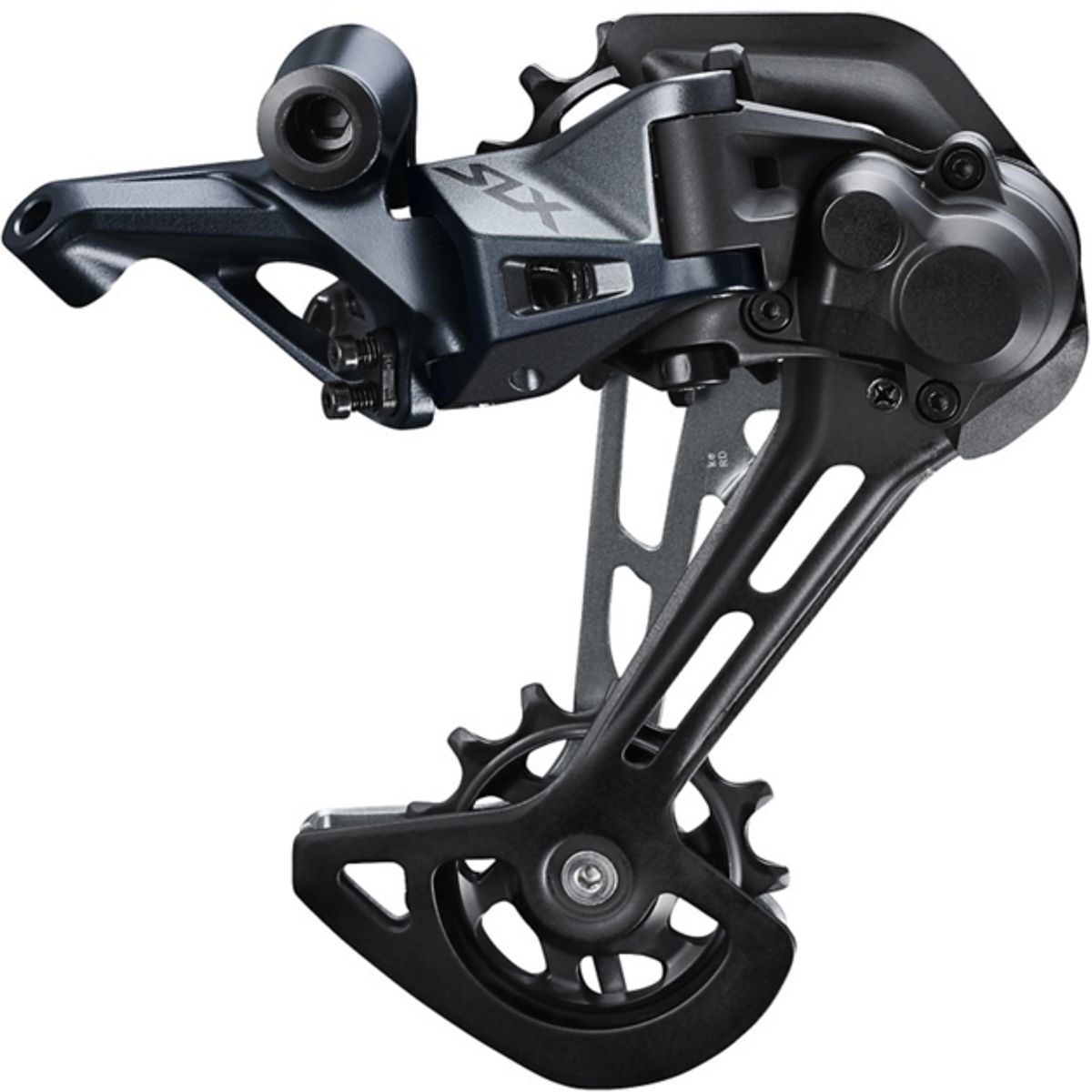

Shimano SLX RD-M7100 Rear Derailleur Black, SGS, 12-Speed
Model match
More parts (6)Fewer parts
GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Replacement search: 29x2.3 hookless compatible bicycle tire Before ordering: Check tire approval and pressure for your rim.BB-MT801, Threaded
Before ordering: Use the spacer setup for your crank.M7120, 30T ring, 52mm chainline, S2-S3:165mm, S4-S5: 170mm
M7100, 12spd
infinite adjustable, two-bolt head, bottom mount cable routing, remote SRL LE lever, 34.9mm, S2-S3:150mm, S4-S5:170mm
hookless alloy, 30mm inner width, tubeless ready
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
- Rear tire
- Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
- Drivetrain
- 12-speed
- Seatpost diameter
- 34.9 mm
- Bottom bracket / shell
- Shimano, BB-MT801, Threaded
Equipment inspection checks 14 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: FACT 11m carbon chassis and rear-end, 29 S-Sizing Enduro Race Geometry, SRAM Universal Derailleur Hanger, SWAT™ Door integration, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, 170mm of travel · Fork: RockShox Zeb Select, Charger RC damper, 15x110mm, 44mm offset, 170mm of travel
Suspension
Evaluate the suspension →Archived: Fork: RockShox Zeb Select, Charger RC damper, 15x110mm, 44mm offset, 170mm of travel · Rear shock: RockShox Vivid Select Plus, Ride Dynamics Trail Tune, adjustable hydraulic bottom out, adjustable rebound and compression, 205x60, Trunnion
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano SLX, M7100, 12spd · Rear derailleur: Shimano SLX, M7100, SGS, 12-speed · Crankset: Shimano SLX, M7120, 30T ring, 52mm chainline, S2-S3:165mm, S4-S5: 170mm · Bottom bracket: Shimano, BB-MT801, Threaded · Cassette: Shimano SLX, CS-M7100, 12-speed, 10-51t · Chain: Shimano SLX, M7100, 12-speed
Brakes
Inspect the brakes →Archived: Brakes: (F) TRP Trail EVO, 4-piston caliper, hydraulic disc, 220mm / (R) TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm
Wheels and tires
Check wheels and tires →Archived: Rims: Specialized, hookless alloy, 30mm inner width, tubeless ready · Hubs: (F) Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h / (R) Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h · Front tire: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" · Rear tire: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Controls and contact points
Archived: Handlebar: Speciailized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise. S2: 780mm, S3-S5:800mm width · Stem: Alloy Trail Stem, 35mm bar bore · Seatpost: X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SRL LE lever, 34.9mm, S2-S3:150mm, S4-S5:170mm · Saddle: Bridge Comp, Hollow Cr-mo rails, S2: 155mm, S3-S5: 143mm
