Velopedia Bicycle Archive

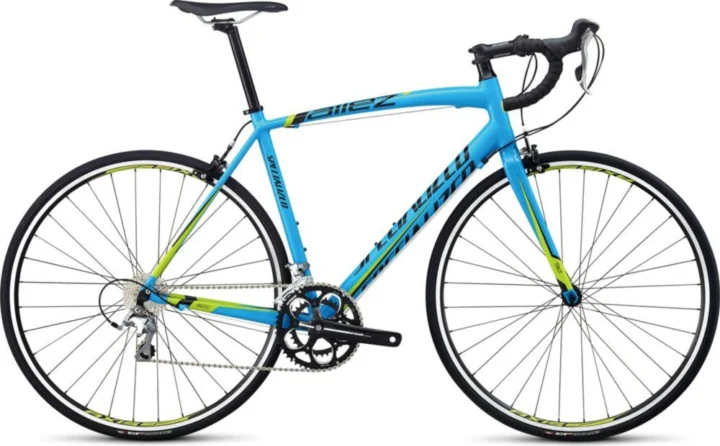

2014 Specialized Allez Elite

Original specifications: geometry for 6 published sizes.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #9256380
Model year
2014
Category
Road
Original MSRP
$1,100.00
Sizes
49, 52, 54, 56, 58, 61
Colors
Gloss Cyan/Hyper/Black - Elite, Gloss Metallic White/Red/Black - Elite
Geometry
6 manufacturer sizes
In this record
22 specifications · 2 archived images · original MSRP · geometry
Model history 7 other years

Browse other years

Compare side by side

Identification clues

2014 archived details

Published colors
Gloss Cyan/Hyper/Black - Elite, Gloss Metallic White/Red/Black - Elite
Frame
Aluminum

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildAluminum

Manufacturer catalog

Published sizes and colors

6 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

495254565861

Published colors

Gloss Cyan/Hyper/Black - EliteGloss Metallic White/Red/Black - Elite

Frameset

Frame ConstructionSpecialized A1 Premium Aluminum, fully-manipulated tubing w/ smooth welds, 1-1/8"" lower bearing
Frame MaterialAluminum
ForkSpecialized FACT carbon, aluminum steerer/crown, 1-1/8""
Fork MaterialCarbon Fiber

Drivetrain

ShiftersShimano Tiagra STI
Front DerailleurShimano Tiagra
Rear DerailleurShimano Tiagra, 10-speed
CranksetFSA Tempo, alloy arms, 10-speed compact, alloy/steel rings; chainrings: 50/34
Bottom BracketFSA, square taper, sealed cartridge bearings
CassetteShimano Tiagra, 10-speed, 12-28
ChainKMC X10
PedalsNylon flat test ride, loose ball, w/ reflectors

Brakes

Brakes(F) Tektro, dual pivot / (R) Tektro, dual pivot

Cockpit & Contact Points

Headset1-1/8"" sealed Cr-Mo cartridge bearings integrated w/ headset, 20mm alloy cone spacer, w/ 20mm of spacers
HandlebarSpecialized Comp, shallow bend
StemSpecialized alloy, 4-bolt, 31.8mm clamp
SaddleBody Geometry Riva Road Gel, 143mm
SeatpostSpecialized Sport, alloy, 2-bolt, 27.2mm

Wheels & Tires

Wheels(F) AXIS Classic / (R) AXIS Classic
RimsAxis Classic
Front TireSpecialized Espoir Sport, 60TPI, wire bead, double BlackBelt protection, 700x25c
Rear TireSpecialized Espoir Sport, 60TPI, wire bead, double BlackBelt protection, 700x25c

Geometry

6 sizes · 16 measurements

Frame measurements by size.

All geometry measurements6 sizes · 16 measurements
Measurement490.0520.0540.0560.0580.0610.0
Effective top tube522 mm537 mm548 mm565 mm582 mm600 mm
Head tube100 mm120 mm145 mm170 mm205 mm230 mm
Head-tube angle72.25°73°73°73.5°73.5°74°
Seat-tube angle75.5°74°73.5°73.25°73°72.5°
Chainstay / rear center405 mm405 mm405 mm405 mm407 mm410 mm
Wheelbase972 mm970 mm978 mm986 mm1003 mm1013 mm
Bottom-bracket drop71.5 mm71.5 mm69 mm69 mm67.5 mm67.5 mm
Reach387 mm385 mm387 mm395 mm402 mm408 mm
Stack505 mm523 mm547 mm574 mm606 mm631 mm
Standover height730 mm777 mm798 mm816 mm836 mm854 mm
Fork offset / rake45 mm45 mm45 mm45 mm45 mm45 mm
Front center578 mm576 mm583 mm591 mm605 mm613 mm
Trail65 mm57 mm57 mm56 mm56 mm53 mm
Seatpost length300 mm300 mm350 mm350 mm350 mm350 mm
Crank length170 mm170 mm172.5 mm172.5 mm175 mm175 mm
Stem length80 mm90 mm100 mm100 mm110 mm110 mm

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes50/34T · 12–28T · 10-speed
Lowest1.21:1 Highest4.17:1 Total range343%
Estimated speed At 90 RPM Lowest gear8.6 mph Highest gear29.5 mph

Rear tire: 700C×25.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
