Lowest1.06:1
Highest4.55:1
Total range428%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Rear tire: 700C×26.
Velopedia Bicycle Archive
2021 Specialized Allez Elite
Original specifications: geometry for 7 published sizes.
Selling this bike? Get the spec link and selling options
At a glance
- Model year
- 2021
- Category
- Road
- Original MSRP
- $1,600.00
- Sizes
- 44, 49, 52, 54, 56, 58, 61
- Colors
- Gloss Green Tint-Silver Base/Silver/Carbon, Gloss Ice Yellow/Dove Grey, Satin Black/Blue Reflective/Clean
- Geometry
- 7 manufacturer sizes
- In this record
- 20 specifications · 8 archived images · original MSRP · geometry
- Archive ID
- 900004427
Model history 6 other years
Checking your bike’s model year? Compare its frame details and original finish with nearby years.
- Published colors
- Gloss Green Tint-Silver Base/Silver/Carbon, Gloss Ice Yellow/Dove Grey, Satin Black/Blue Reflective/Clean
- Frame
- Aluminum
Colors can vary by market and components can be replaced. These are identification clues, not proof of the frame’s year.
Original buildAluminum
Frameset
| Frame Construction | Specialized E5 Premium Aluminum, fully manipulated tubing w/ SmoothWelds, 1-1/8"- 1-3/8" tapered head tube, internal cable routing, threaded BB, 130mm spacing |
|---|---|
| Frame Material | Aluminum |
| Fork | Specialized FACT carbon, 1-1/8" to 1-3/8" taper, fender eyelets |
| Fork Material | Carbon Fiber |
Drivetrain
| Shifters | Shimano 105 R7000, 11-speed |
|---|---|
| Front Derailleur | Shimano 105 |
| Rear Derailleur | Shimano 105 R7000 GS, medium cage, 11-speed |
| Crankset | Praxis Alba; chainrings: 50/34T |
| Bottom Bracket | Praxis 68mm BSA |
| BB Shell Width | 68 mm |
| Cassette | Shimano 105, 11-speed, 11-32t |
| Chain | KMC X11 Extra Lightweight, 11-speed |
Brakes
| Brakes | (F) Axis 1.0 caliper / (R) Axis 1.0 caliper |
|---|
Cockpit & Contact Points
| Handlebar | Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp |
|---|---|
| Stem | Specialized, 3D-forged alloy, 4-bolt, 7-degree rise |
| Saddle | Body Geometry Bridge Saddle, steel rails |
| Seatpost | Alloy, 2-bolt Clamp, 12mm offset, 27.2mm, anti-corrosion hardware |
Wheels & Tires
| Wheels | (F) DT R460, sealed cartridge hubs, 14g spokes, 20h / (R) DT R460, sealed cartridge hubs, 14g spokes, 24h |
|---|---|
| Front Tire | RoadSport, 700x26mm |
| Rear Tire | RoadSport, 700x26mm |
Geometry
Frame measurements by size.
Frame diagram
Size
Measurement
Measurement
—
Select an available measurement to locate it on the frame.
All geometry measurements7 sizes · 20 measurements
| Measurement | 44 | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|---|
| Seat tube | 430 mm | 460 mm | 490 mm | 510 mm | 530 mm | 550 mm | 580 mm |
| Effective top tube | 501 mm | 515 mm | 542 mm | 552 mm | 564 mm | 579 mm | 591 mm |
| Head tube | 110 mm | 125 mm | 140 mm | 155 mm | 180 mm | 215 mm | 235 mm |
| Head-tube angle | 71.5° | 72.25° | 73° | 73° | 73.5° | 73.5° | 74° |
| Seat-tube angle | 75.25° | 75.25° | 73.25° | 73.25° | 73.25° | 73.25° | 73.25° |
| Chainstay / rear center | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 974 mm | 982 mm | 983 mm | 991 mm | 999 mm | 1014 mm | 1021 mm |
| Bottom-bracket drop | 77 mm | 77 mm | 77 mm | 76 mm | 76 mm | 74.5 mm | 74.5 mm |
| Bottom-bracket height | 263 mm | 263 mm | 263 mm | 264 mm | 264 mm | 265.5 mm | 265.5 mm |
| Reach | 365 mm | 374 mm | 376 mm | 380 mm | 385 mm | 390 mm | 396 mm |
| Stack | 516 mm | 535 mm | 552 mm | 570 mm | 596 mm | 627 mm | 649 mm |
| Standover height | 697 mm | 720 mm | 745 mm | 763 mm | 785 mm | 813 mm | 839 mm |
| Fork offset / rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Front center | 567 mm | 575 mm | 576 mm | 585 mm | 593 mm | 607 mm | 614 mm |
| Trail | 64 mm | 59 mm | 55 mm | 55 mm | 52 mm | 52 mm | 49 mm |
| Fork length / axle-to-crown | 368 mm | 368 mm | 368 mm | 368 mm | 368 mm | 368 mm | 368 mm |
| Seatpost length | 300 mm | 300 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Crank length | 165 mm | 165 mm | 170 mm | 172.5 mm | 172.5 mm | 175 mm | 175 mm |
| Stem length | 70 mm | 80 mm | 90 mm | 100 mm | 100 mm | 110 mm | 110 mm |
| Handlebar width | 360 mm | 380 mm | 400 mm | 420 mm | 420 mm | 440 mm | 440 mm |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
KMC X11 Extra Lightweight
11-speed
Retailer offers
KMC X11SL-TI Gold Chain One Color, 116 Links
Replacement option
Shimano 105
11-speed, 11-32t
RoadSport
700x26mm
Replacement search: 700cx26 bicycle tire Before ordering: Check rim type and tire clearance.More parts (7)Fewer parts
Praxis 68mm BSA
Praxis Alba
chainrings: 50/34T
Shimano 105
Shimano 105 R7000 GS
medium cage, 11-speed
Shimano 105 R7000
11-speed
Specialized Shallow Drop
6061, 70x125mm, 31.8mm clamp
Alloy
2-bolt Clamp, 12mm offset, 27.2mm, anti-corrosion hardware
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Service essentials
Start with the original build, then check what is fitted to your bike today.
- Front tire
- RoadSport, 700x26mmCheck the fitted tire’s size and rim type; replacements may differ from the original.
- Rear tire
- RoadSport, 700x26mmRead the rear tire’s size marking. Do not assume it matches the front.
- Drivetrain
- 11-speedMatch the chain or belt to the installed drivetrain family; speed count alone is not a fit guarantee.
- Seatpost diameter
- 27.2 mmCheck the diameter stamped on the post. A seat-clamp diameter is a different measurement.
- Bottom bracket / shell
- Praxis 68mm BSA · 68 mmConfirm shell type and width, crank interface, and spindle length or spacers before ordering.
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2021 Specialized Allez Elite · Road · Published sizes: 44, 49, 52, 54, 56, 58, 61
Frame and fork
Inspect the frame and fork →Archived: Frame: Specialized E5 Premium Aluminum, fully manipulated tubing w/ SmoothWelds, 1-1/8"- 1-3/8" tapered head tube, internal cable routing, threaded BB, 130mm spacing · Fork: Specialized FACT carbon, 1-1/8" to 1-3/8" taper, fender eyelets · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano 105 R7000, 11-speed · Front derailleur: Shimano 105 · Rear derailleur: Shimano 105 R7000 GS, medium cage, 11-speed · Crankset: Praxis Alba; chainrings: 50/34T · Bottom bracket: Praxis 68mm BSA · Cassette: Shimano 105, 11-speed, 11-32t · Chain: KMC X11 Extra Lightweight, 11-speed
Brakes
Inspect the brakes →Archived: Brakes: (F) Axis 1.0 caliper / (R) Axis 1.0 caliper
Wheels and tires
Check wheels and tires →Archived: Wheels: (F) DT R460, sealed cartridge hubs, 14g spokes, 20h / (R) DT R460, sealed cartridge hubs, 14g spokes, 24h · Front tire: RoadSport, 700x26mm · Rear tire: RoadSport, 700x26mm
Controls and contact points
Archived: Handlebar: Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp · Stem: Specialized, 3D-forged alloy, 4-bolt, 7-degree rise · Seatpost: Alloy, 2-bolt Clamp, 12mm offset, 27.2mm, anti-corrosion hardware · Saddle: Body Geometry Bridge Saddle, steel rails
Before and during the test ride
Follow the full used-bike inspection order →Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.

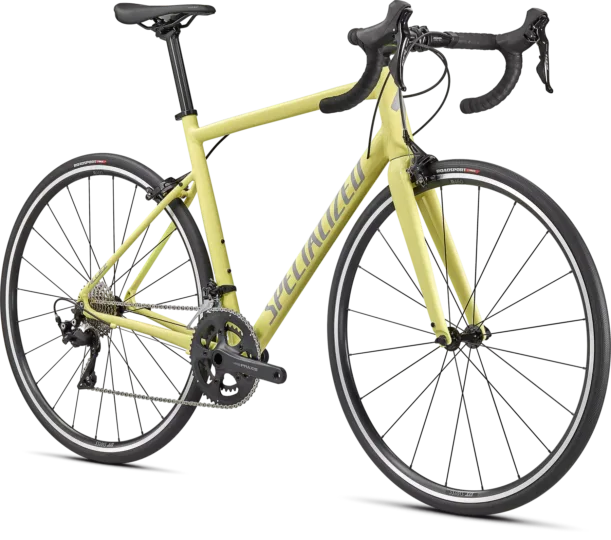

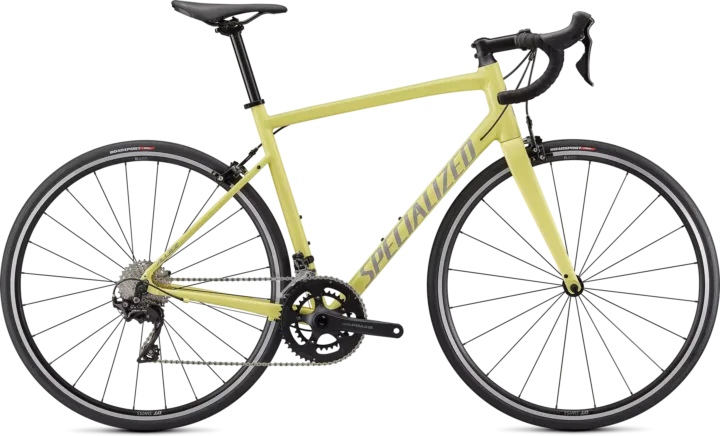

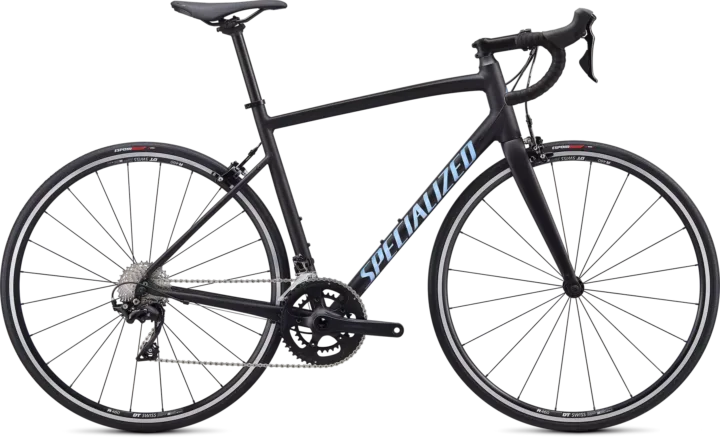

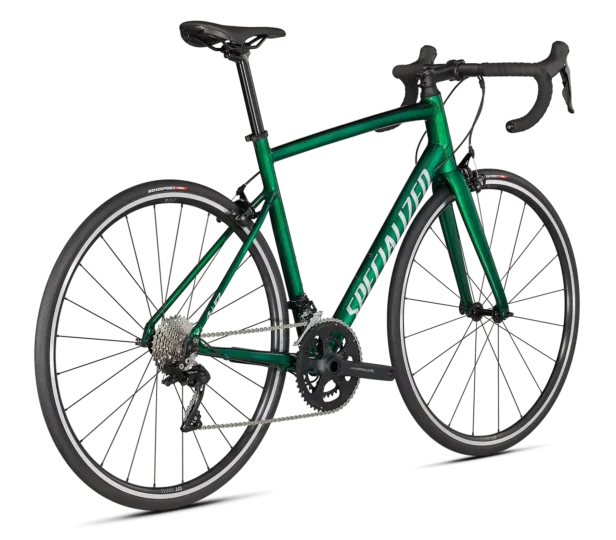

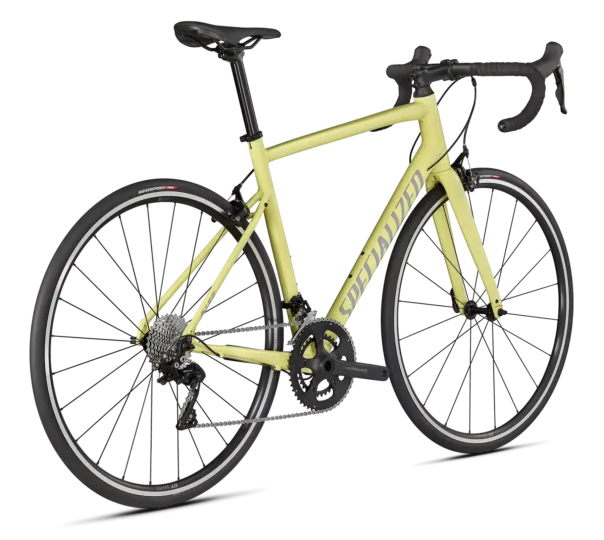

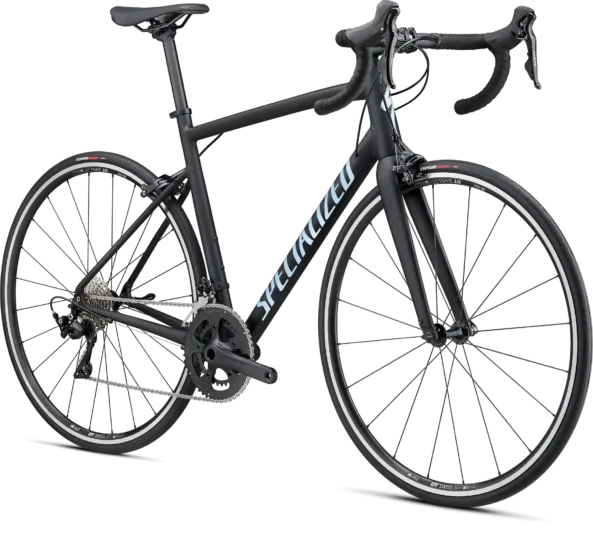

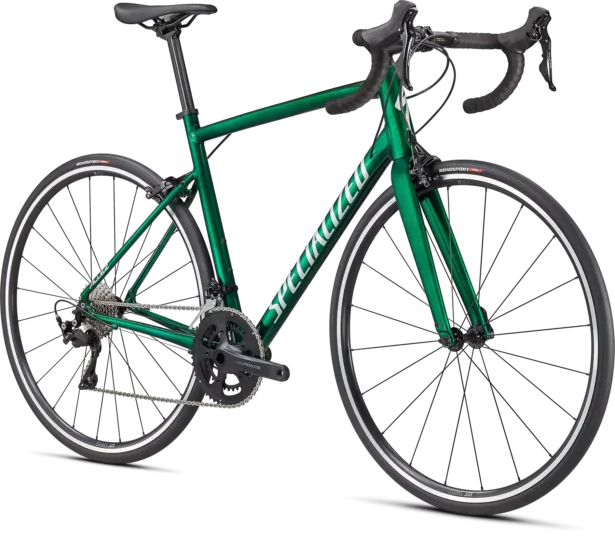

Gallery8 images
Checking current listings…
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
