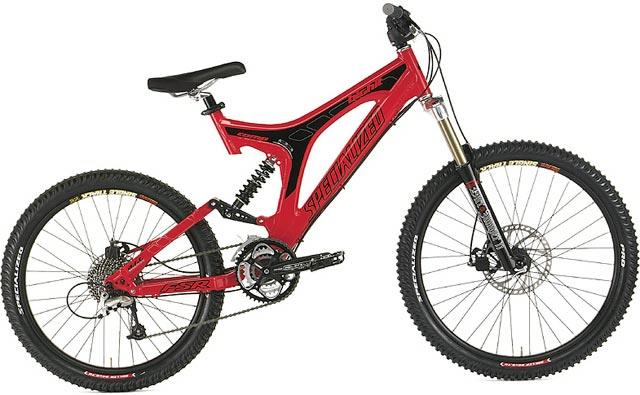

2003 Specialized Big Hit Comp
Original specifications: Shimano Deore XT · 9-speed · mechanical rear derailleur · Front: 26", Rear: 24" wheels · legacy reference geometry.
Planning to sell? Draft your listing
At a glance
Archive #30127- Model year
- 2003
- Category
- Mountain
- Original MSRP
- $1,630.00
- Sizes
- S, M, L
- Colors
- Team Red
- Geometry
- Legacy reference
- In this record
- 29 specifications · archived image · original MSRP · geometry
Model history 2 other years
Browse other years
Compare side by side
Identification clues
2003 archived details
- Published colors
- Team Red
- Frame
- Specialized A1 aluminum
- Original equipment
- Mountain Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildSpecialized A1 aluminum · Mountain Mix · Front: 26", Rear: 24" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Specialized A1 aluminum |
| Fork | Marzocchi DJ 1 QR20, 130mm travel |
| Fork Material | Aluminum/magnesium, single crown |
| Rear Shock | Fox Vanilla R, 5.5" - 6.3" travel |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Deore Rapidfire |
| Front Derailleur | Shimano Deore, bottom-pull/bottom bracket mount |
| Rear Derailleur | Shimano Deore XT SGS |
| Crankset | TruVativ Holzfeller, 22/32/44 teeth |
| Bottom Bracket | TruVativ ISIS DH, 118mm spindle |
| BB Shell Width | 73mm English |
| Rear Cogs | 9-speed, 11 - 34 teeth |
| Chain | Shimano CN-HG73, 1/2 x 3/32" |
| Pedals | Aluminum platform |
Brakes
| Brakes | Hayes HFX-9 Hydraulic Disc brakes, Hayes HFX-9 Hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Aheadset Tank MX |
|---|---|
| Handlebar | Specialized BigHit 31.8mm |
| Handlebar Extensions | Not included |
| Stem | Marzocchi Integrated |
| Saddle | Specialized BigHit |
| Seatpost | Aluminum, 30.9mm diameter |
Wheels & Tires
| Hubs | Front: Specialized Stout Disc, Rear: Shimano Deore Disc |
|---|---|
| Rims | Sun Rims Single Track, 36-hole |
| Spokes | DT stainless steel, 14ga. (2.0mm) straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 26 x 2.60" Specialized Roller |
| Rear Tire | 24 x 2.60" Specialized Roller |
| Wheel Size | Front: 26", Rear: 24" wheels |
No specifications match. Try a component name or clear your search.
Geometry
Historical measurements. Frame size unknown.
Reference drawing
Select an available measurement to locate it on the frame.
All geometry measurementsLegacy reference · 3 measurements
| Measurement | Legacy reference |
|---|---|
| Top tube | 585 mm |
| Chainstay / rear center | 429 mm |
| Wheelbase | 1125 mm |
Frame size not recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
Speed unavailable: wheel or tire size is missing or unclear.
Add your rear tire size to calculate speedHow it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
30.9mm diameter
More parts (5)Fewer parts
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Front: 26 x 2.60" Specialized Roller, Rear: 24 x 2.60" Specialized Roller
- Drivetrain
- 9-speed
- Seatpost diameter
- 30.9 mm
- Bottom bracket / shell
- TruVativ ISIS DH, 118mm spindle · 73mm English
Equipment inspection checks 13 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Marzocchi DJ 1 QR20, 130mm travel · Aluminum/magnesium, single crown
Suspension
Evaluate the suspension →Archived: Fork: Marzocchi DJ 1 QR20, 130mm travel · Rear shock: Fox Vanilla R, 5.5" - 6.3" travel
Drivetrain
Check drivetrain wear →Archived: Group: Mountain Mix · Shifters: Shimano Deore Rapidfire · Front derailleur: Shimano Deore, bottom-pull/bottom bracket mount · Rear derailleur: Shimano Deore XT SGS · Crankset: TruVativ Holzfeller, 22/32/44 teeth · Bottom bracket: TruVativ ISIS DH, 118mm spindle · Rear cogs: 9-speed, 11 - 34 teeth · Chain: Shimano CN-HG73, 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Hayes HFX-9 Hydraulic Disc brakes, Hayes HFX-9 Hydraulic levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: Front: 26", Rear: 24" wheels · Rims: Sun Rims Single Track, 36-hole · Hubs: Front: Specialized Stout Disc, Rear: Shimano Deore Disc · Front tire: Front: 26 x 2.60" Specialized Roller, Rear: 24 x 2.60" Specialized Roller
Controls and contact points
Archived: Headset: 1 1/8" threadless Aheadset Tank MX · Handlebar: Specialized BigHit 31.8mm · Stem: Marzocchi Integrated · Seatpost: Aluminum, 30.9mm diameter · Saddle: Specialized BigHit · Pedals: Aluminum platform
